Chapter 3: Configuration and Connection

Standard Configuration

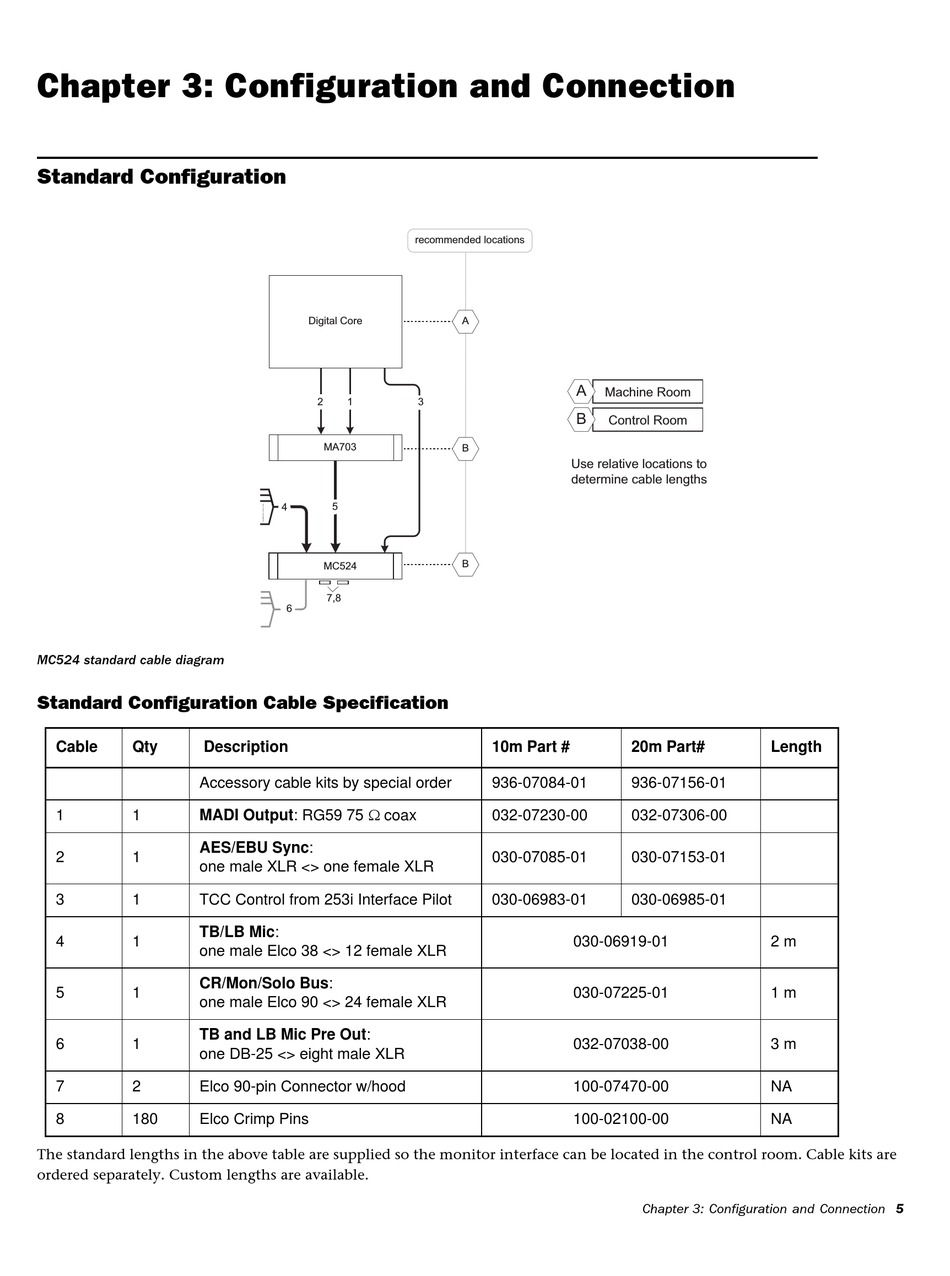

MC524 standard cable diagram
Standard Configuration Cable Specification
Cable Qty Description
Accessory cable kits by special order
MADI Output: RG59 75  coax
1 1
AES/EBU Sync:
2 1
one male XLR <> one female XLR
3 1 TCC Control from 253i Interface Pilot
TB/LB Mic:
4 1
one male Elco 38 <> 12 female XLR
CR/Mon/Solo Bus:
5 1
one male Elco 90 <> 24 female XLR
TB and LB Mic Pre Out:
6 1
one DB-25 <> eight male XLR
7 2 Elco 90-pin Connector w/hood
8 180 Elco Crimp Pins
The standard lengths in the above table are supplied so the monitor interface can be located in the control room. Cable kits are
ordered separately. Custom lengths are available.
recommended locations
Digital Core
2 1
2 1 3
MA703
4 5 5
4
MC524
7,8
7 6
A
A
Machine Room
B
Control Room
B
Use relative locations to
determine cable lengths
B
10m Part # 20m Part#
936-07084-01 936-07156-01
032-07230-00 032-07306-00
030-07085-01 030-07153-01
030-06983-01 030-06985-01
030-06919-01
030-07225-01
032-07038-00
100-07470-00
100-02100-00
Length
2 m
1 m
3 m
NA
NA
