Back Panel - Euphonix MC524 Manual

Back Panel

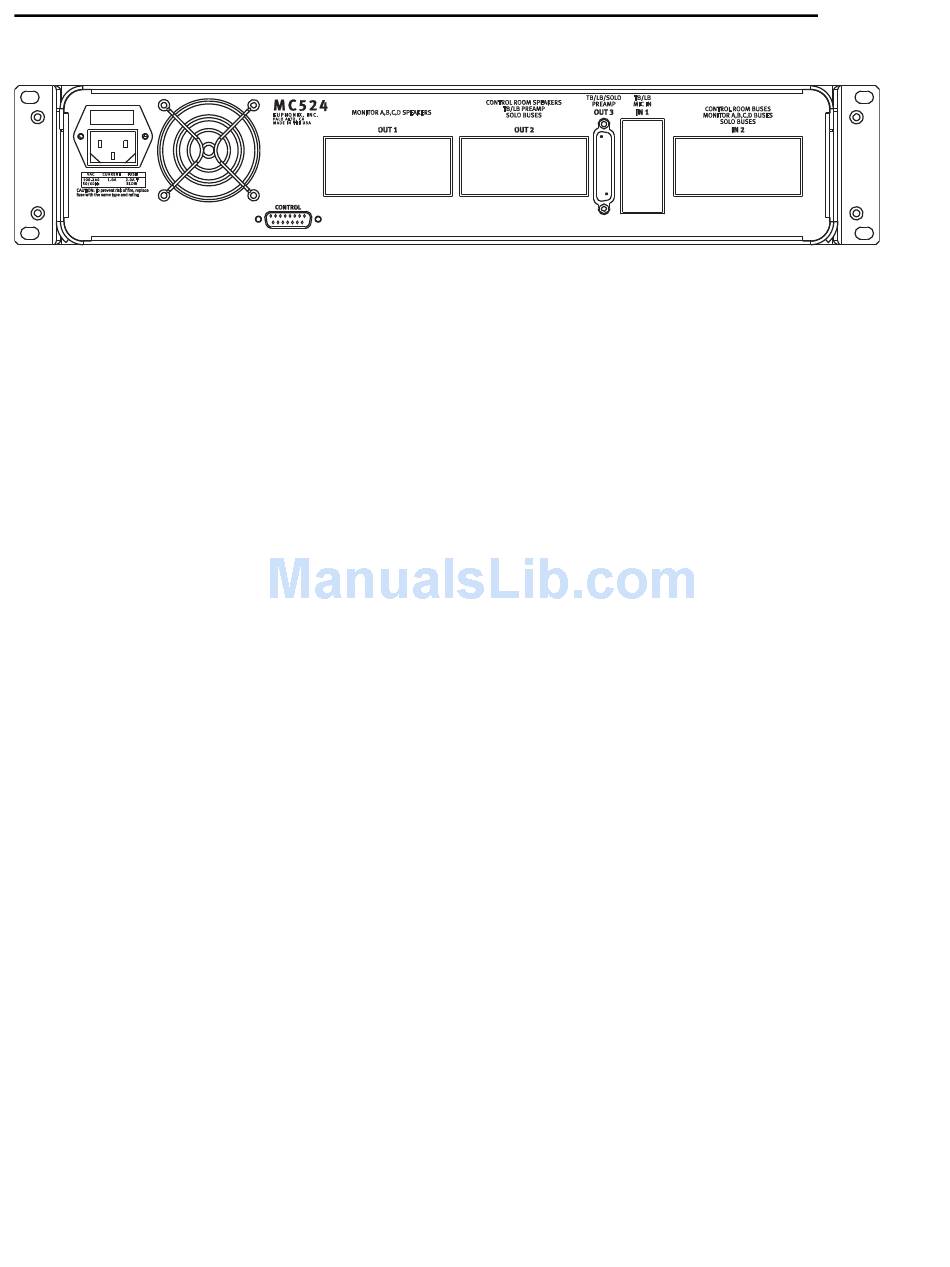

MC524 back panel
In 1 (38-pin Elco) Talkback, Listen Back and Mic inputs. This
connector receives four stereo listen channels and two stereo
talk mic inputs. All signals input at this port can be level
boosted or attenuated. In standard patch configuration, input
cable fans out to 12 XLR females.
In 2 (90-pin Elco) Control Room Busses, Monitor A, B, C, D,
and Solo busses inputs. This connector receives eight Monitor
A channels, and two each channels for Monitor B, C, D.
Signals input at this port can only be level attenuated. In
standard configuration these signals are fed from the AM713
converter.
4 MC524 Guide
Out 1 (90-pin Elco) Monitor A, B, C, D Speaker outputs. This
connector outputs eight Control Room channels, eight Mon-
itor A channels, and two each channels for Monitor B, C, D,
and Solo. The output cable fans out to two 38-pin Elco con-
nectors for the patchbay.
Out 2 (90-pin Elco) This connector outputs eight Control
Room Main channels, six Control Room Alt 1 channels, two
Control Room Alt 2 channels, four Listen pre, two talk pre and
two Solo channels. The output cable fans out to two 38-pin
Elco connectors for the patchbay.
Out 3 (DB-25 female) This connector outputs four Listen pre,
two Talkback pre, and two Solo channels, eight Monitor A
channels, and two channels each for Monitor B, C, D, and
Solo. The output cable fans out to eight male XLR connectors.
Control (DB-15) Input for digital control signal from Digital
Pilot. Signal format is Euphonix TCC bi-directional serial pro-
tocol. All patching, switching, and gain controls are commu-
nicated via this connection as well as MC524 IP address.
AC Line In (IEC) and Fuse Tray The power connector accepts
standard IEC power cords. 110, 220, or 240 VAC, 50/60 Hz can
be applied at this connector.
