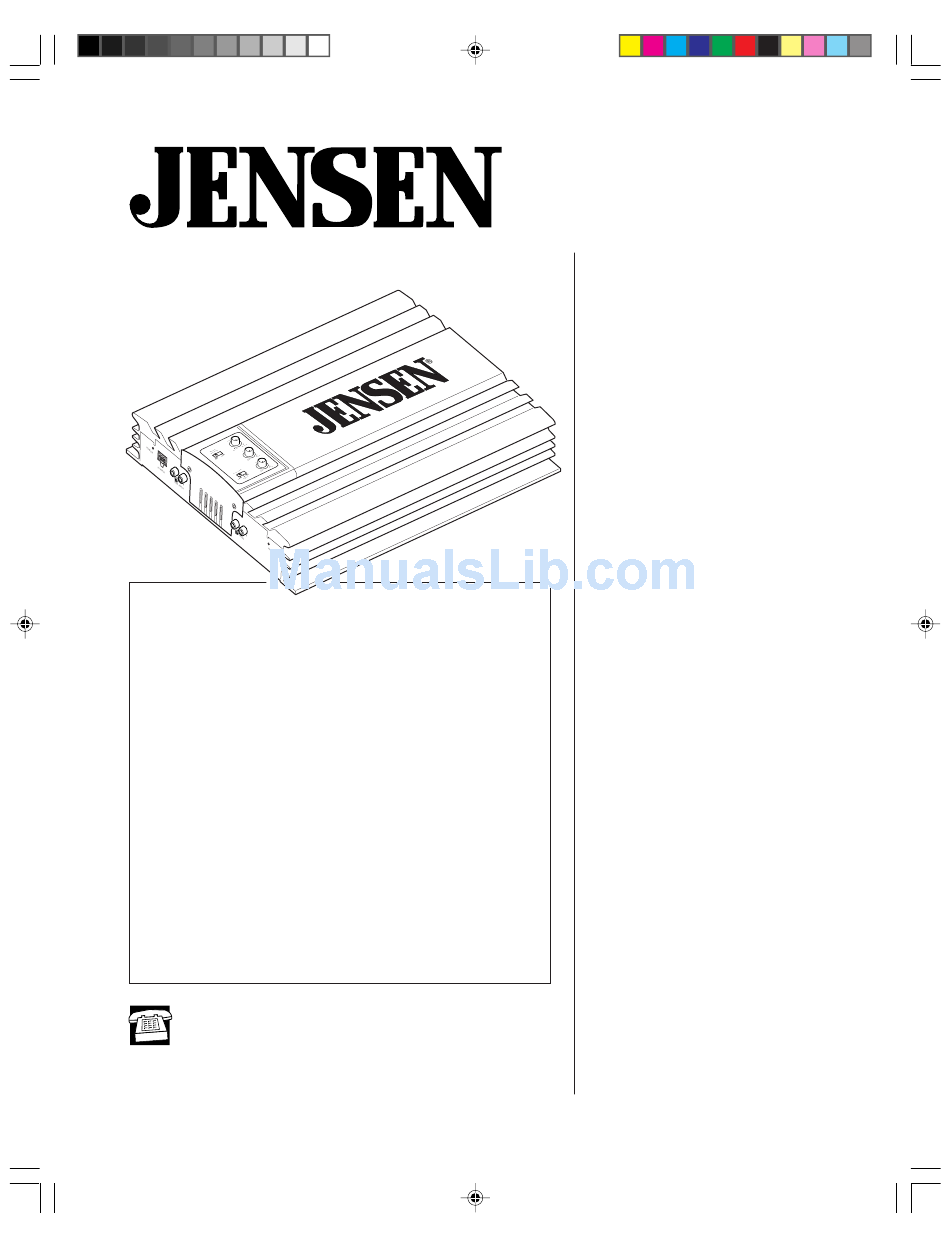

How to Install and Operate
the LXA300 Amplifier
Welcome!
What you're holding in your hands is no ordinary
owner's manual. We've tried to make the instructions
in this book clear and easy to follow.
For your Jensen amplifier to work right, it must be
installed correctly. This manual will show you how to
install your new amplifier like a pro. It's a good idea to
read all of these instructions before you begin the
installation. Most installations are straightforward and
can be handled by a do-it-yourselfer with the right
tools, patience, and the ability to follow instructions.
But, do-it-yourself installation isn't for everyone. If you
still don't feel confident after reading this book,
consider turning the installation job over to someone
better suited to it.
Warranty Service
If your Jensen amplifier should ever require service,
you will need to have the original dated receipt. If you
ever need to return the unit for any reason, always
include the receipt with the product.
Technical Assistance
For technical assistance with the operation or installation
of the LXA300, call 1-800-323-0221.
®
Contents
Features ........................................ 2
Installation ................................... 2
Installation ..................................... 2
Amplifier Location .......................... 2
Disconnect Battery ........................ 2
• Amplifier Installation Kit ............. 2
Needed .......................................... 3
Routing Wires ................................ 3
• Bigger is Better .......................... 3
Wiring ............................................. 4
Power and Outputs ........................ 4
Power Terminal (BATT +12V) ........ 4
Ground Terminal (GND) ................. 4
Remote Terminal (RMT +12V) ....... 4
Fuses ............................................. 4
Inputs and Controls ....................... 5
Input Wiring .................................... 5
Pass Output ................................... 5
Power Light .................................... 5
Protect Light .................................. 5
Input Level Control ........................ 6
Bass Boost ..................................... 6
Crossover ...................................... 6
Speaker Wiring .............................. 7
Testing .......................................... 9
Reconnect Battery ......................... 9
Test Power Wiring .......................... 9
Test Speaker Connections ............ 9
Noise .......................................... 9
• Installing in Trunk ..................... 10
• Crimp Connections .................. 10
• Securing Wires ........................ 10
Power Wires ............................ 10
Troubleshooting ....................... 11
and Warranty ............................. 12
Advertisement
Table of Contents
Related Manuals for Audiovox LXA300
Summary of Contents for Audiovox LXA300
-
Page 1: Table Of Contents
• Speaker and include the receipt with the product. Power Wires ......10 Troubleshooting ....... 11 Specifications Technical Assistance and Warranty ......12 For technical assistance with the operation or installation of the LXA300, call 1-800-323-0221. -
Page 2: Features
® LXA300 Features The Jensen LXA300 power amplifier is a two- • 150 watts RMS bridged into a 4 ohm load channel 300-watt total system power automotive • Bridgeable design to direct full power to one amplifier. The LXA300 includes: speaker •... -
Page 3: Supplies And Tools Needed
® LXA300 Supplies and Tools Needed Routing Wires Supplies: • Speaker wire (12 gauge for subwoofers, 16-18 Battery gauge for other speakers) • Sheet metal type screws for mounting amplifier Battery Connector • Electrical tape • Solderless crimp connectors Fuse or •... -
Page 4: Wiring
® LXA300 Wiring Power and Outputs + 12V FUSE L – R – POWER SPEAKER Power Terminal (BATT +12V) Remote Terminal (RMT +12V) Connect the radio power antenna lead from Connect directly to the vehicle battery+ the receiver to the amplifier REMOTE terminal. -
Page 5: Inputs And Controls
® LXA300 Inputs and Controls POWER PROTECT HI INPUT LOW INPUT PASS Input Wiring Pass Output Inputs may be high level (from the receiver's speaker) or low level (from special low level Use pass through (PASS outputs). Low level input is preferred for best OUTPUT) connectors for performance. -
Page 6: Input Level Control
® LXA300 Crossover (X-OVER) LEVEL BASS- BOOST Adjust the crossover to accommodate your chosen installation method. • LPF–(low pass filter) only bass tones go to speakers. Use with woofers or subwoofer. X-OVER • FULL–all tones go to speak- ers. Use with full-range speak- ers. -
Page 7: Speaker Wiring
® LXA300 Speaker Wiring 2 Speakers 2 Subwoofers RCA Cables RCA Cables L – R – L – R – X-OVER X-OVER FULL FULL... - Page 8 ® LXA300 2 Speakers + Subwoofer Bridged Subwoofer RCA Cables RCA Cables L – R – L – R – High Pass Filters X-OVER minimum FULL Low Pass X-OVER Filter (available at most car stereo installation stores) FULL Important When running a subwoofer and two full-range speakers together (Tri-mode operation), high and low pass filters must be used.
-
Page 9: Testing
® LXA300 Testing Before you finish the installation, you should do the following tests to make sure the wiring is correct and everything is operating properly. Reconnect Battery Professional Tip Dealing with Alternator Noise When wiring is complete, reconnect the battery The vehicle alternator can cause a “siren”... -
Page 10: Installing In Trunk
® LXA300 Professional Tip Professional Tip Securing Wires Installing in Trunk When installing the amplifier in the trunk, run Be proud of your installation! Use wire ties to the power wires along the same path as the bundle wires together when possible. (But other vehicle wiring. -
Page 11: Troubleshooting
® LXA300 Troubleshooting Problem Possible Cause Corrective Action Amplifier does not operate No power to +12V terminal Repair wire or connections (power LED not on) when vehicle and radio are on No power to remote wire with radio on Check connections to radio with test light... -
Page 12: Specifications
Specifications LXA300 Amplifier Power output @ 14.4 VDC, 20-20 kHz .... (4 ohms) 75 Watts per channel RMS, < 00.08% THD (2 ohms) 100 Watts per channel RMS, < 00.1% THD (4 ohms) bridged 200 Watts per channel RMS, < 00.1% THD Frequency Response ..................
