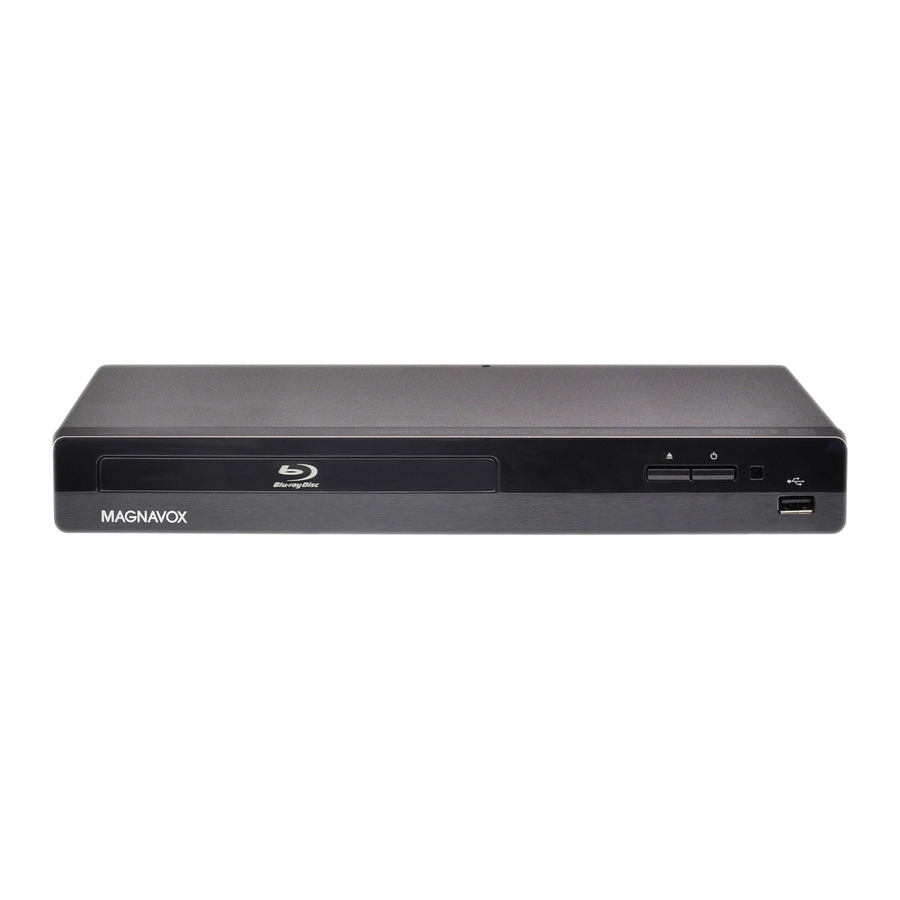

Magnavox MBP5320F Setup Manual

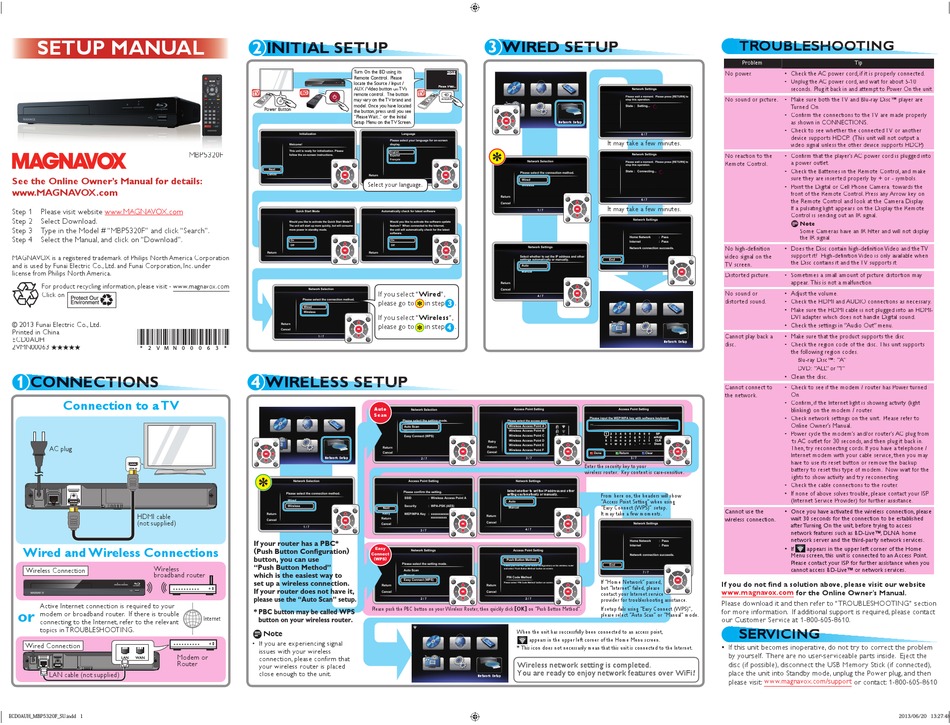

SETUP MANUAL
See the Online Owner's Manual for details:
www.MAGNAVOX.com
Step 1 Please visit website www.MAGNAVOX.com
Step 2 Select Download.
Step 3 Type in the Model # "MBP5320F" and click "Search".
Step 4 Select the Manual, and click on "Download".
MAGNAVOX is a registered trademark of Philips North America Corporation
and is used by Funai Electric Co., Ltd. and Funai Corporation, Inc. under
license from Philips North America.
For product recycling information, please visit - www.magnavox.com
Click on
© 2013 Funai Electric Co., Ltd.
Printed in China
ECD0AUH
2VMN00063 ★★★★★
* 2 V M N 0 0 0 6 3 *
1
C C O ONNECTIONS O N N N N E E C C T T I I O O N N S S

Connection to a TV

AC plug
LAN HDMI OUT
HDMI cable
(not supplied)
Wired and Wireless Connections
Wireless
Wireless Connection
broadband router
Active Internet connection is required to your
or
modem or broadband router. If there is trouble
connecting to the Internet, refer to the relevant
topics in TROUBLESHOOTING.
Wired Connection
Modem or
Router
LAN HDMI OUT
LAN cable (not supplied)
2
IN N IT T TIAL SETUP IA A L L SET T
Turn On the BD using its
Remote Conttrol. Please
locate the Source / Input /
AUX / Video button on TV's
remote control. The button
may vary on the TV brand and
model. Once you have located
Power Button wer Button n
the button, press until you see
"Please Wait... " or the Initial
Setup Menu on the TV Screen.
Initialization
Welcome!
MBP5320F P5320F This unit is ready for initialization. Please
follow the on-screen instructions.
Next
Cancel
Quick Start Mode
Would you like to activate the Quick Start Mode?
The unit will start up more quickly, but will consume
more power in standby mode.
On
Off
Return
Network Selection
Please select the connection method.
Wired
Wireless
Return
Cancel
1 / 7
4
W W W IR R RELESS SETUP ELE E S S S S S S E T E
Network Setup
Network Selection
Please select the connection method.
Wired
Wireless
Return
Cancel
1 / 7
If your router has a PBC*
( Push Button Configuration )
button, you can use
"Push Button Method"
which is the easiest way to
set up a wireless connection.
If your router does not have it,
please use the "Auto Scan" setup.
* PBC button may be called WPS
Internet
button on your wireless router.
D Note
• If you are experiencing signal
issues with your wireless
connection, please confirm that
your wireless router is placed
close enough to the unit.
3
W W W IR RED SETUP R ED
U U P
sing its
HDMI
Please
/ Input /
Please Wait...
on on TV's
The button
V brand and
AV/SOURCE
have located
until you see
the Initial
e TV Screen.
Language
Please select your language for on-screen
display.
English
Español
Français
Network Selection
Please select the connection method.
Return
Wired
Select your language.
Wireless
Return
Cancel
1 / 7
Automatically check for latest software
Would you like to activate the software update
feature? When connected to the Internet,
the unit will automatically check for the latest
software.
On
Off
Network Settings
Return
Select whether to set the IP address and other
settings automatically or manually.
Auto
Manual
Return
Cancel
If you select "Wired",
4 / 7
please go to in step 3 .
If you select "Wireless",
please go to in step 4 .
T U U P
Auto
Network Selection Access Point Setting
Scan
Please select the setting mode. Please select the access point.
Wireless Access Point A
Auto Scan
Wireless Access Point B
Manual
Wireless Access Point C
Easy Connect (WPS)
Wireless Access Point D
Retry
Wireless Access Point E
Return
Return
Wireless Access Point F
Cancel Cancel
2 / 7 3 / 7
Access Point Setting Network Settings
Select whether to set the IP address and other
Please confirm the setting.
settings automatically or manually.
SSID : Wireless Access Point A
Auto
Security : WPA-PSK (AES)
Manual
Next
Retry
WEP/WPA Key : xxxxxxxxxxxxxxxxxxxxxxxx
Return
xxxxxxxxxx
Return
Cancel
Cancel
3 / 7 4 / 7
Easy
Network Settings Access Point Setting
Connect
(WPS)
Push Button Method
Please select the setting mode.
Please push the PBC (push button configuration) on the wireless router
and select 'Push Button Method' button on screen.
Auto Scan
Manual
PIN Code Method
Easy Connect (WPS)
Please select 'PIN Code Method' button on screen.
Return Return
Cancel Cancel
2 / 7 2 / 7
Please push the PBC button on your Wireless Router, then quickly click [ OK ] on "Push Button Method".
When the unit has successfully been connected to an access point,
appears in the upper left corner of the Home Menu screen.
* This icon does not necessarily mean that this unit is connected to the Internet.
Wireless network setting is completed.
You are ready to enjoy network features over WiFi !
Network Setup
D S S E E T T U U P P
Network Settings
Please wait a moment. Please press [RETURN] to
stop this operation.
State : Setting...
Network Setup
6 / 7
It may take a few minutes.
Network Settings
Please wait a moment. Please press [RETURN] to
stop this operation.
State : Connecting...
6 / 7
It may take a few minutes.
Network Settings
Home Network : Pass
Internet : Pass
Network connection succeeds.
End
7 / 7
Network Setup
Access Point Setting
Please input the WEP/WPA key with software keyboard.
Done Return Clear a/A/@
3 / 7
Enter the security key to your
wireless router. Key content is case-sensitive.
From here on, the headers will show
"Access Point Setting" when using
"Easy Connect (WPS)" setup.
It may take a few moments.
Network Settings
Home Network : Pass
Internet : Pass
Network connection succeeds.
End
7 / 7
If "Home Network" passed,
If you do not find a solution above, please visit our website
but "Internet" failed, please
www.magnavox.com
contact your Internet service
provider for troubleshooting assistance.
Please download it and then refer to "TROUBLESHOOTING" section
If setup fails using "Easy Connect (WPS)",
for more information. If additional support is required, please contact
please select "Auto Scan" or "Manual" mode.
our Customer Service at 1-800-605-8610.
• If this unit becomes inoperative, do not try to correct the problem
T T RO O OUBLESHOOTING U U B B LE E SH H O O O O TI I NG G
Problem Tip
No power. • Check the AC power cord, if it is properly connected.
• Unplug the AC power cord, and wait for about 5-10
seconds. Plug it back in and attempt to Power On the unit.
No sound or picture. • Make sure both the TV and Blu-ray Disc™ player are
Turned On.
• Confirm the connections to the TV are made properly
as shown in CONNECTIONS.
• Check to see whether the connected TV or another
device supports HDCP. (This unit will not output a
video signal unless the other device supports HDCP.)
No reaction to the • Confirm that the player's AC power cord is plugged into
Remote Control. a power outlet.
• Check the Batteries in the Remote Control, and make
sure they are inserted properly by + or - symbols.
• Point the Digital or Cell Phone Camera towards the
front of the Remote Control. Press any Arrow key on
the Remote Control and look at the Camera Display.
If a pulsating light appears on the Display the Remote
Control is sending out an IR signal.
D Note
Some Cameras have an IR Filter and will not display
the IR signal.
No high-definition • Does the Disc contain high-definition Video and the TV
support it? High-definition Video is only available when
video signal on the
the Disc contains it and the TV supports it.
TV screen.
Distorted picture. • Sometimes a small amount of picture distortion may
appear. This is not a malfunction.
No sound or • Adjust the volume.
distorted sound. • Check the HDMI and AUDIO connections as necessary.
• Make sure the HDMI cable is not plugged into an HDMI-
DVI adapter which does not handle Digital sound.
• Check the settings in "Audio Out" menu.
Cannot play back a • Make sure that the product supports the disc.
disc. • Check the region code of the disc. This unit supports
the following region codes.
- Blu-ray Disc™: "A"
- DVD: "ALL" or "1"
• Clean the disc.
Cannot connect to • Check to see if the modem / router has Power turned
On.
the network.
• Confirm, if the Internet light is showing activity (light
blinking) on the modem / router.
• Check network settings on the unit. Please refer to
Online Owner's Manual.
• Power cycle the modem's and/or router's AC plug from
its AC outlet for 30 seconds, and then plug it back in.
Then, try reconnecting cords. If you have a telephone /
Internet modem with your cable service, then you may
have to use its reset button or remove the backup
battery to reset this type of modem. Now wait for the
lights to show activity and try reconnecting.
• Check the cable connections to the router.
• If none of above solves trouble, please contact your ISP
(Internet Service Provider) for further assistance.
Cannot use the • Once you have activated the wireless connection, please
wait 30 seconds for the connection to be established
wireless connection.
after Turning On the unit, before trying to access
network features such as BD-Live™, DLNA home
network server and the third-party network services.
• If appears in the upper left corner of the Home
Menu screen, this unit is connected to an Access Point.
Please contact your ISP for further assistance when you
cannot access BD-Live™ or network services.
for the Online Owner's Manual.
S S ER R RVICING VIC C IN N G
by yourself. There are no user-serviceable parts inside. Eject the
disc (if possible), disconnect the USB Memory Stick (if connected),
place the unit into Standby mode, unplug the Power plug, and then
www.magnavox.com/support
please visit: or contact: 1-800-605-8610
