Summary of Contents for Bugera BTX36000
-

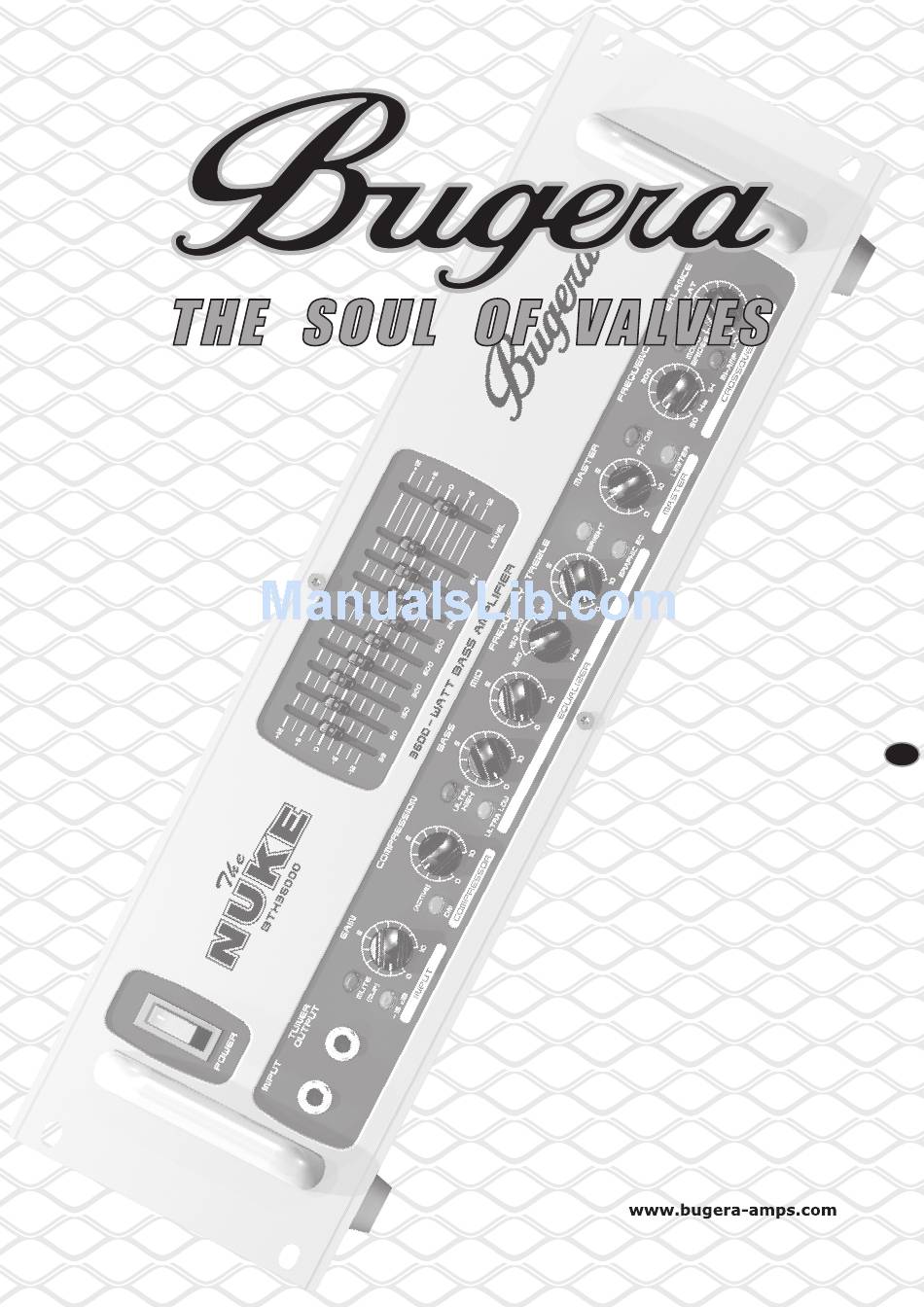

Page 1: User Manual
A50-37130-08001 PROFESSIONAL BTX36000 User Manual... - Page 2 Important safety Protect the power cord from being walked on or pinched particularly at plugs, convenience recep- instructions tacles, and the point where they exit from the ap- paratus. Only use attachments/accessories specified by the manufacturer. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
-
Page 3: Table Of Contents
“THE NUKE” delivers massive 2 x 1,800 Watts in stereo mode or 3,800 Watts in mono-bridged mode. We have fitted the BTX36000 out with an active 9-band graphic EQ to make sure Applications ..........6 that so much power can be tailored exactly to the frequency range you want to apply to it. -
Page 4: Online Registration
Front panel control elements level is too high, the (CLIP) LED warns that clipping can {1} Use the POWER switch to switch the BTX36000 on and off. occur. If the LED: You should always make sure that the POWER switch is in occasionally illuminates, the BTX clips only the “Off”... -
Page 5: Rear Panel
BI-AMP mode (see (20)). At “0” level, the BTX neither boosts nor cuts the equalized signal. To understand the different operation modes of the BTX36000, please read the sections “Modes of operation” and “Bi-amping.” MASTER features... -
Page 6: Applications
There is one input and one output signal respectively, and only the controls of The 2-channel mode is a special feature of your BTX36000. Both channels operate fully independently from one another. There is... -
Page 7: Parallel Mode
(Example: ULTRABASS BB115 and ULTRABASS BB210) pedance is 2 Ohms in stereo mode and 4 Ohms in mono-bridged > crossover frequency: > 300 Hz mode. The BTX36000 supplies the most power into the minimum speaker impedance. How to calculate the speaker impedance When using more than one speaker and each connecting to an- other BTX speaker jack, the speakers are connected in parallel. -
Page 8: Installation
Rack mounting XLR connectors The BUGERA can be mounted on a 19" rack requiring 3 U of space. Use 4 screws and washers to fix it to the front of the rack. Support the rear side of the BTX, especially when often being transported. -
Page 9: Footswitch Connector
Should you register distractive signals such as noise or hissing, we recommend separat- ing the amp input from the signal source. This way, you can quickly determine if the noise originates from the equipment connected to the amp. Make sure to turn the volume to a minimum before turning it on (MASTER rotary knob turned fully left) to avoid any damage that may occur to your loudspeakers. -
Page 10: Specifications
Specifications AUdIO INPUTS INPUT 1 x ¼" mono jack, unbalanced Input impedance 1 MΩ unbalanced (0 dB) / 80 kΩ unbalanced (–15 dB) RETURN CHANNEL A/B 2 x ¼" mono jack, unbalanced Input impedance 100 kΩ unbalanced POWER AMP INPUT A/B 2 x ¼"... -
Page 11: System Block Diagram
System block diagram BTX36000 block diagram (Rectangles represent control elements, ovals represent jacks.) BIAMP System block diagram... -
Page 12: Limited Warranty
Return authorization number To obtain warranty service, the buyer (or his authorized dealer) must call BEHRINGER as exclusive distributor of BUGERA products (see enclosed list) during normal business hours BEFORE returning the product. All inquiries must be accompanied by a description of the problem. The buyer or his au- thorized dealer will receive a return authorization number.
