Summary of Contents for Cambridge Audio SONATA CD30

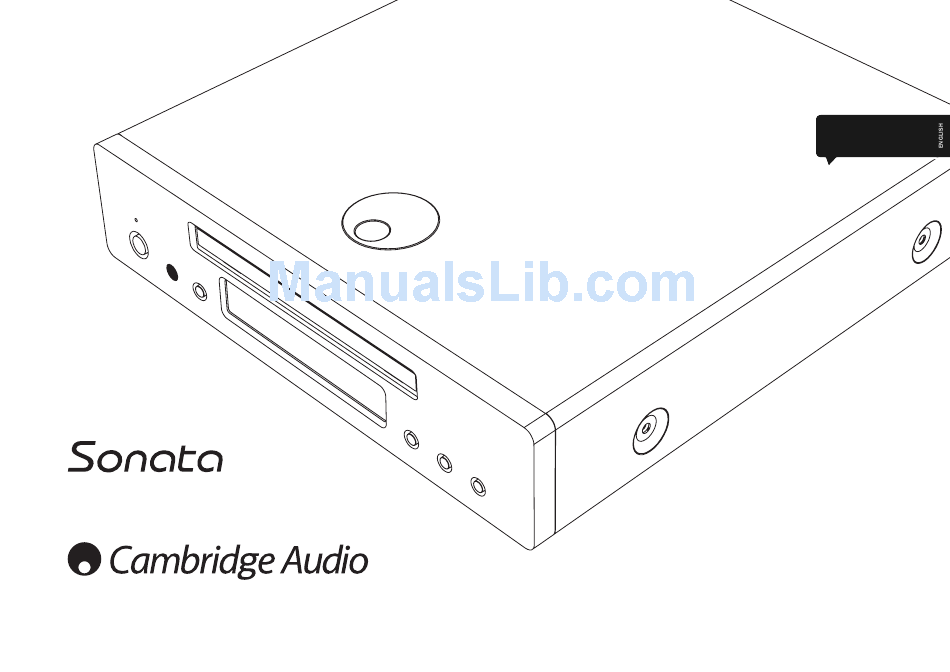

- Page 1 Compact Disc Player User’s manual CD30 Your music + our passion...
-
Page 2: Table Of Contents
Information in this document has been carefully checked Normal disc play..................12 for accuracy at the time of printing; however, Cambridge Audio's policy is one of continuous improvement, therefore design and specifications Locating a specific track during playback ..........12 are subject to change without prior notice. -
Page 3: Introduction
CD30 Introduction Thank you for purchasing your Sonata CD30. We are confident that you will enjoy many years of listening pleasure from it. Like all Cambridge Audio products, Sonata CD30 adheres to three core principles – stunning performance, ease of use and incredible value. -
Page 4: Important Safety Instructions
Important safety instructions For your own safety please read the following important safety instructions carefully 14. Refer all servicing to qualified service personnel. Servicing is required when the before attempting to connect this unit to the mains power supply. They will also enable apparatus has been damaged in any way, such as the power-supply cord or plug you to get the best performance from and prolong the life of the unit: having been damaged, liquid has been spilled or objects have fallen into the... - Page 5 For continued compliance only receiver is connected. Cambridge Audio accessories should be used with this product and servicing must be - Consult the dealer or an experienced radio/TV technician for help. referred to qualified service personnel.
- Page 6 Important safety instructions (continued) Ventilation This unit has been designed to be left in Standby mode when not in use as this will increase the life of the unit (this is true with all electronic equipment). To turn the unit IMPORTANT - The unit will become hot when in use.
-
Page 7: Limited Warranty
If your dealer is not equipped to perform the repair of your Cambridge Audio product, it can be returned by your dealer to Cambridge Audio or an authorised Cambridge Audio service agent. You will need to ship this... -
Page 8: Rear Panel Connections
Your compact disc player is now ready for use. The Sonata CD30 can be turned on and off (i.e. brought in and out of Standby mode) by a trigger voltage connected to the Trigger In. A transition from or to 5-12 DC will turn the Sonata CD30 on. -
Page 9: Front Panel Controls
CD30 Front panel controls CD30 Standby / On Standby/On Disc tray Switches the unit between a low power Standby mode (indicated by dim power LED) Compact Disc tray. Use the Stop/Eject button to open and close. and on (indicated by bright power LED). Standby is a low power mode where the power consumption is less than 5 Watts. -
Page 10: Remote Control
Remote control The CD30 is supplied with a Navigator remote control that CD mode – Press the number of the desired track. Playback will start from the operates this unit, and which can also operate a matching beginning of the track. AR30 or DR30 2.1 receiver and their supplied docking station for iPod, and/or a DV30 DVD player. -
Page 11: Operating Instructions
CD30 Operating instructions Source buttons (CD, DVD, Aux, Tuner, MP3) Loading and unloading discs Press relevant source button to select desired input source. 1. Press the Standby/On switch, if it is necessary to turn the unit on. Note: Ensure you have pressed the CD on the multi-function remote to select CD The following buttons access features on the matching control mode. -
Page 12: Normal Disc Play
Operating instructions (continued) The disc tray can be opened at any time by pressing the Stop/Eject button. If the disc 6. To stop the disc at any point, press the Stop/Eject button. Pressing the Play/Pause is playing, press Stop/Eject first to stop playback and then press again to eject the button while the disc is playing will pause the disc and the track time will flash on disc. -
Page 13: Repeating Discs And Tracks
CD30 Repeating discs and tracks Playing tracks in random order 1. Ensure that the disc is loaded. 1. Ensure that a disc is loaded. 2. Press the Repeat Track button on the remote control. ‘RPT-TRK’ will appear on the 2. Press the Random/Shuffle button on the remote control. ‘RANDOM’ will appear on display. -
Page 14: Using The Remain Function
Operating instructions (continued) Using the Remain function Selecting a track directly 1. Ensure that the disc is playing. Use the 1-9 numeric buttons on the remote control to select any track directly for playback, either in Stop or Playback modes. 2. -
Page 15: Troubleshooting
CD30 Troubleshooting Technical specifications There is no power Disc types CD (CD-DA), CD-R/RW Ensure the AC power cord is connected securely. D/A Converter Wolfson Microelectronics WM8716 24-Bit/192kHz capable Ensure the plug is fully inserted into the wall socket and is switched on. Check the unit is switched on at the rear panel. - Page 16 Cambridge Audio is a brand of Audio Partnership Plc Registered Office: Gallery Court, Hankey Place, London SE1 4BB, United Kingdom Registered in England No. 2953313 © 2009 Cambridge Audio Ltd...
