m®

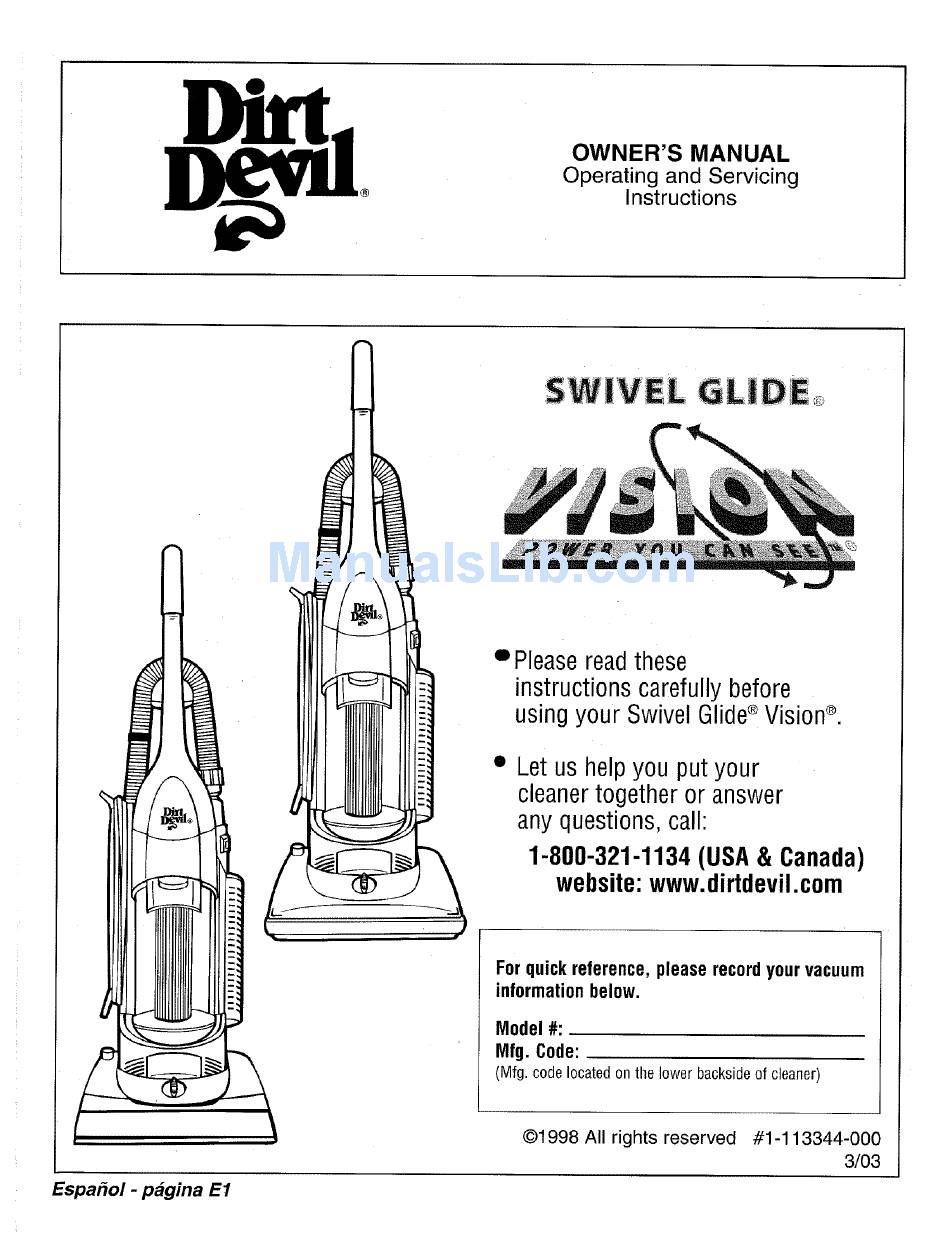

OWNER'S
MANUAL
Operating and Servicing
Instructions
_D
• Please read these
instructions carefully before
using your Swivel Glide®Vision®.
0
Let us help you put your
cleaner together or answer
any questions, call:
1-800-321-1134(USA& Canada)
website:www.dirtdevil.com
For quick reference, please recordyour vacuum
informationbelow.
Model #:
Mfg. Code:
(Mfg. code located on the lower backside of cleaner)
Espa#ol
- p_gina
E1
@1998 All rights reserved
#1-113344-000
3/03
Advertisement
Table of Contents
Related Manuals for Dirt Devil VISION M086925
Summary of Contents for Dirt Devil VISION M086925
- Page 1 OWNER'S MANUAL Operating and Servicing m® Instructions • Please read these instructions carefully before using your Swivel Glide®Vision®. Let us help you put your cleaner together or answer any questions, call: 1-800-321-1134(USA& Canada) website:www.dirtdevil.com For quick reference, please recordyour vacuum informationbelow.
- Page 2 CONGRATULATIONS You are now the proud owner of the Dirt Devil ® Swivel Glide ®Vision _, with Power You Can See'_! You'll never buy another bag again with the unique bagless design that includes a see-through dirt container for retrieving lost items.
- Page 3 THIS CLEANER IS INTENDED FOR HOUSEHOLD USE ONLY IMPORTANT SAFETY INSTRUCTIONS When you use an appliance, basic precautions should be followed, including the following: • READ ALL INSTRUCTIONS BEFORE USINGTHE APPLIANCE. • ALWAYS FOLLOWTHESE SAFETY INSTRUCTIONS. • BRING CLEANER TO UPRIGHT POSITION WHEN USING THE HOSE AND ATTACHMENTS. •...
- Page 4 11---_ FEATURES Fi_Lg_t 1. Handle 12. Carrying Handle 13. Stretch Hose Handle 2. Dirt Container Release Lever 14. Long Power Cord 3. Headlight 15. *Power Edger (optional w/Wrap Around Bumper) 4a.*Power Edger" slots w/Wrap Around Bumper (Optional) 16. Belt Storage 4b.*Scuff Guard"...
- Page 5 HOSE ASSEMBLY AND TOOL STORAGE 1. ATTACH HOSE: Attach the flexible hose to the cleaner (Diagram 1). Match the arrows on the hose to the tabs on the clear hose inlet (Diagram 1A). Push down firmly on the cuff and turn clockwise. Insert the hose handle into the side of the cleaner. Press down firmly to secure (Diagram 2).
- Page 6 STRETCH HOSE AND HOSE ANCHOR: The Hose Anchor is used to prevent the Vacuum from tipping While using the above floor cleaning attachments. Remove the Stretch Hose from side of the cleaner using the handle. Lay hose over the back of cleaner (Diagram 1) and secure hose anchor ring, (Diagram 2a) located around hose to base.
- Page 7 END CAP "_ [BELT STYLE: 4&5 BELT OR BRUSH REMOVAL & REPLACEMENT TOOL REQUIRED: PHILLIPS SCREWDRIVER WARNING: TO REDUCE THE RISK OF INJURY FROM MOVING PARTS - UNPLUG CLEANER BEFORE CHANGING BELT OR BRUSHROLL. TO REMOVE BELT Flip cleaner to expose nozzle base. Base should lay flat and face up. To remove nozzle cover, use Phillips screwdriver to remove the four screws.
- Page 8 WARNING: TO REDUCE RISK OF PERSONAL INJURY - UNPLUG CLEANER BEFORE SERVICING Problem Possible Reasons Possible Solutions Cleaner won't run 1. Power cord not firmly plugged into outlet. 1. Plug unit in firmly. 2. Blown fuse or tripped breaker. 2. Check fuse or breaker in home. Replace fuse/reset breaker.
