Desa Comfort Glow CGP10R Owner's Operation And Installation Manual

Infrared vent-free propane/lp gas heater
Hide thumbs Also See for Comfort Glow CGP10R:

Advertisement

®

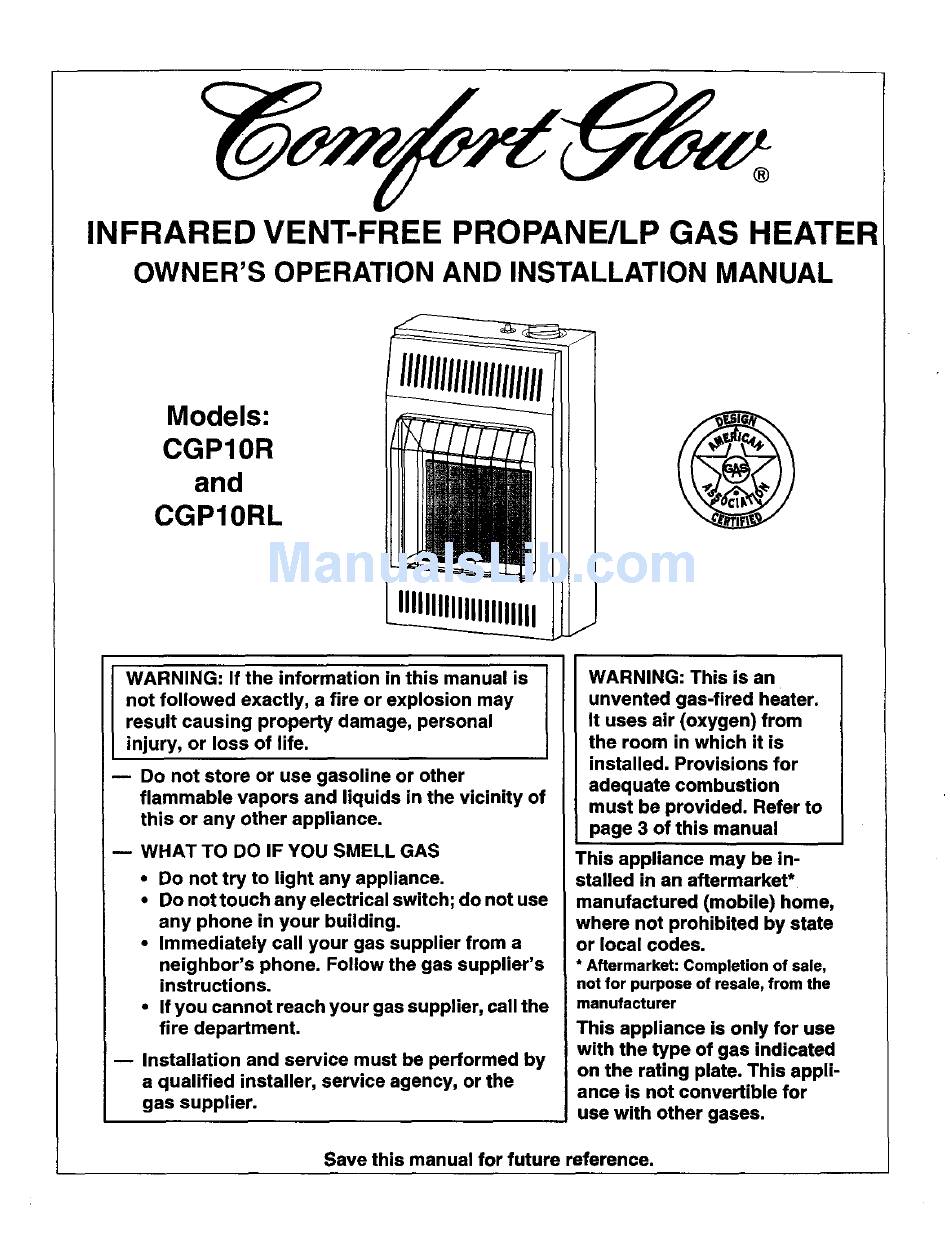

INFRARED
VENT-FREE
PROPANE/LP
GAS HEATER
OWNER'S OPERATION AND INSTALLATION MANUAL
Models:
CGP10R
and
CGP10RL
WARNING:
If the information
in this manual is
not followed
exactly, a fire or explosion
may
result causing property damage, personal
injury, or loss of life.
Do not store or use gasoline or other
flammable
vapors and liquids in the vicinity of
this or any other appliance.
m WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately
call your gas supplier from a
neighbor's
phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the
fire department.
Installation
and service must be performed
by
a qualified
installer,
service agency, or the
gas supplier.
WARNING:
This is an
unvented
gas-fired
heater.
It uses air (oxygen) from
the room in which it is
installed.
Provisions
for
adequate
combustion
must be provided.
Refer to
page 3 of this manual
This appliance
may be in-
stalled in an aftermarket*
manufactured
(mobile) home,
where not prohibited
by state
or local codes.
* Aftermarket: Completion of sale,
not for purpose of resale, from the
manufacturer
This appliance
is only for use
with the type of gas indicated
on the rating plate. This appli-
ance is not convertible
for
use with other gases.
Save this manual for future reference.
