STC-I850
User's Manual
Toll Free Customer Support 1-877-269-8490
www.stealthcam.net
Version 6.0
09/15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STC-I850 and is the answer not in the manual?

Questions and answers

Ronald Pearson
April 7, 2025

Turned on camera and menu and up and down arrows dont work Stealth 1850

0
1 comments:
Mr. Anderson
April 9, 2025

If the MENU and UP/DOWN arrows do not work on the Stealth Cam STC-I850, it may be because the camera automatically enters PIR detection mode if the MENU button is not pressed within 30 seconds after switching to the ON position. In this mode, the buttons will not respond for programming. To use the MENU and navigation buttons, press the MENU button within 30 seconds of turning the camera ON.

This answer is automatically generated

0

Related Manuals for Stealth Cam STC-I850

Summary of Contents for Stealth Cam STC-I850

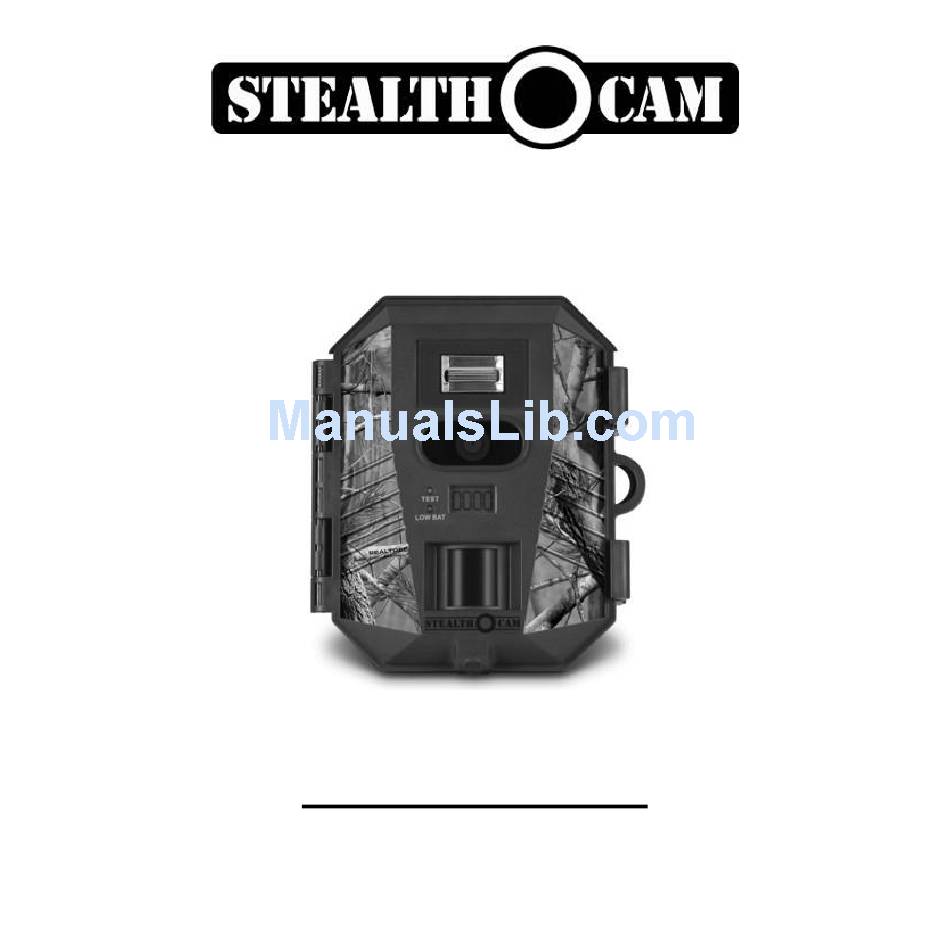

  • Page 1 STC-I850 User’s Manual Toll Free Customer Support 1-877-269-8490 www.stealthcam.net Version 6.0 09/15...
  • Page 2 Stealth Cam Limited Warranty Your Stealth Cam scouting camera is covered by a One Year Limited Warranty on parts and labor from the date of original purchase, and purchases must be made through an authorized dealer. The warranty covers defects in workmanship and materials.

  • Page 3: Table Of Contents

    STC-I850 Manual Contents Camera overview Camera kit contents Battery and memory installation Set up and programming Camera use Mounting the camera Viewing & deleting images Memory compatibility chart Technical specs General information Image capacity chart Moon phase chart www.stealthcam.net Toll Free 877-269-8490...

  • Page 4: Camera Overview

    STC-I850 Camera overview Front housing image with major parts indication www.stealthcam.net Toll Free 877-269-8490...
  • Page 5 STC-I850 Open view image with major parts indication www.stealthcam.net Toll Free 877-269-8490...
  • Page 6 STC-I850 Side view with major parts indication www.stealthcam.net Toll Free 877-269-8490...
  • Page 7 STC-I850 Camera kit contents  Model STC-I850 Digital Scouting Camera  User manual  USB cable  Strap www.stealthcam.net Toll Free 877-269-8490...
  • Page 8 Doing so will damage the camera and will void the warranty. Your Stealth Cam Advanced Digital Scouting Camera is designed to operate using two different types of battery power options. NOTE: Always have camera in the OFF position when installing or removing batteries.
  • Page 9 (sold separately). Battery cable and complete 12V Lead Acid battery kits are available wherever Stealth Cam scouting cameras are sold, or call toll free 877-269-8490. Only Stealth Cam external battery accessories are recommended. ...
  • Page 10 STC-I850 Memory Options Your camera is equipped with 32MB built in flash memory. The camera is also equipped with an expandable media card slot capable of accepting up to 2GB SD card (sold separately). With no memory card inserted into the slot, the camera will use the built in 32MB memory. If an SD card is inserted into the slot, then the camera will bypass the built in memory and utilize the SD memory.
  • Page 11 STC-I850  SD cards must be clean (no images from other sources).  If you are using the SD card from other cameras, please make sure to format the SD card in your computer prior to use in your camera. New cards are good to use straight from the package.

  • Page 12: Set Up And Programming

    STC-I850 Set up and Programming When the camera is first turned on, the internal LCD screen displays the camera status. The following information is present on this screen. Flash Mode Control: The camera is pre-programmed with Auto Flash setting. ...
  • Page 13 STC-I850 Definition  Time out: To set the amount of time in minutes the camera will sleep between PIR triggering.  Flash: Auto – Flash based on surrounding light conditions. Off – Turn off the flash.  Capture mode: 1P ~ 9P: 1 to 9 burst mode image capturing per PIR triggering.
  • Page 14 STC-I850  Batteries Status: Displays the battery status. o Full: The battery is full. o Low: The battery is low, and the front Low Battery indicator will also blink.  When the camera has detected low batteries, (Batteries that are lower than 6.0 +/-0.2Volts) the camera unit will power off within 30 seconds automatically.
  • Page 15 Press the [UP] or [DN] button to select the desired resolution (HIGH/LOW/BASE) and press [OK] to save and exit to CAPTURING setting. Set the Capturing sequence. Your Stealth Cam can be programmed to shoot 1~9 pictures per triggering.  The word CAMERA will be blinking.
  • Page 16  Press [OK] to confirm your selection, and exit to TIME OUT setting. Set the Video Mode: Your Stealth Cam STC-I850 can be programmed to record 5~90 seconds of video per triggering.  After pressing the [MENU] button, press [UP] button twice to enter video setting mode.

  • Page 17: Camera Use

    STC-I850 Set Date and Time: This camera uses the 24hr military time format.  The word TIME will be blinking. Press [OK] to enter minute setting first.  Minutes digit will be blinking. Press [UP] or [DN] to increase or decrease the minute value (0 –...
  • Page 18 STC-I850 decrease the date value (1 – 31). Once this is done, press [OK]. The word “-- dEL --“ will begin to blink. Now press [MENU] to exit the program setting, and back to status screen. At the end of each program set up selection, you may press [MENU] to exit, and return to the camera status ready screen for the 1 minute countdown mode to enter PIR capturing.

  • Page 19: Mounting The Camera

    STC-I850 Using the camera Once all program settings have been completed, your Stealth Cam is ready for field use. Getting started It is recommended that you mount the camera 4-5 ft off the ground with the camera pointed at a slight downward angle. Be sure to avoid mounting the camera facing east or west, as the rising and setting of the sun could produce false triggers and overexposed images.
  • Page 20 STC-I850 Mounting the camera Mounting the camera with Tree Screw (optional accessory sold separately).  Hand twist the screw into the tree, or post at the desired position.  Attach the camera to the screw by turning the camera onto the mounting screw to the desired position.
  • Page 21 STC-I850  Do not over tighten as this may cause damage to camera housing. Using the nut and washer that came with the tree screw, tighten to the bottom of camera for greater stability. Mounting the camera with the supplied strap ...
  • Page 22 STC-I850 Stealth Cam offers a Security Lock Bracket for uses exclusively with this camera. (Part number STC-LBDV) For the latest Stealthcam accessories go to: www.stealthcam.net or call toll free: 877-269-8490  In order to obtain proper weather resistance, please make sure that both door latches are securely locked in place.
  • Page 23 STC-I850  Adjust the camera position as needed, and repeat testing until the desired coverage area is achieved.  When you have completed testing the coverage area, there are 2 methods to exit the test mode: a. Option 1: Open the front housing, and press the [TEST] button to exit test mode.
  • Page 24 STC-I850  Open the front housing and move the switch to the ON position. At this point, you have 30 seconds to make any program adjustments.  After 30 seconds, the camera’s green LED light will begin blinking and enter count down mode. This is your indication to leave the coverage area within one minute.
  • Page 25 STC-I850 Viewing and deleting the images The STC-I850 cam offers the user different options for viewing the images. The external LCD display on the front of the housing will show the number of images in memory. To wake the camera from PIR detection mode, press and hold either the [UP] or [DN] button for about 5 seconds.
  • Page 26 STC-I850 the handheld TV screen does not flicker, you do not need to set your TV out system. Proceed to the Thumbnail image section below. If the handheld TV screen flickers, then you will need to proceed to the next step to set up your TV out to PAL system.
  • Page 27 STC-I850 Thumbnail Images  You will see thumbnail images on your monitor. At this point you may use the [UP] or [DN] button to navigate though your thumbnail images.  On the upper left hand corner of your TV monitor, it will either display the picture icon or video icon to show whether the image is a still image or video clip.
  • Page 28 [OK] button. Viewing images by computer download Your Stealth Cam Digital Scouting Camera is a plug and play USB storage device for users of Windows 2000 / ME / XP and Vista operating systems. This camera is not MAC compatible.
  • Page 29 STC-I850 Viewing the images on your computer via USB connection  Make sure the power switch is in the OFF location.  To view the images, simply plug the larger end of the USB cable into an available USB port on your computer.
  • Page 30 STC-I850 the video clip or while it is in thumbnail view.  Press [OK] button to enter the DELETE & FORMAT menu.  Using the [UP] and [DN] buttons to select the desired function. No Delete (NO-dL), Delete one (d-ONE), Delete ALL (d-ALL), or FORMAT.
  • Page 31 STC-I850  If you choose to format your memory, it will erase all images. This feature is particularly useful if you don’t want to look through the images one at a time. Once this is done, press [DN] button and scroll through the options until you see No Delete (NO-dL), press [OK] and then press [MENU].
  • Page 32 STC-I850  Press [OK] to confirm your selection.  If you choose to delete one picture at a time, (d-ONE), it will delete the last picture from the memory, the front counter will decrease by one.  If you choose to delete all images (d-ALL), it will delete all images.
  • Page 33 STC-I850 SD Memory Card Compatibility Chart The following cards have been tested and approved for use in the STC-I850 model. Kingmax Sandisk Toshiba Kingston First Champion 1G, 2G. Digilux 1G, 2G. Proper camera operation cannot be guaranteed when using memory card NOT listed above.
  • Page 34 STC-I850 Technical Specifications System Requirements and Compatibility  Windows Me/2000/XP/Vista  Pentium 4, 2GHz or above  1GB RAM (2GB recommended)  32 bits color, resolution 800 x 600 or above. Built in 128MB  2GB free hard disc space ...
  • Page 35 STC-I850 Camera Features and Specification  Camera lens: 4P high precision multi-layer glass lens with IR coating  Built in 2.0” B&W LCD display  Built in 32M flash memory for image storage  External memory support: SD memory card up to 2.0 GB ...
  • Page 36 STC-I850  Green test LED indicator  TV out support for NTSC and PAL system  Focusing: 5 ft to Infinity  Effective viewing Angle: 50 deg.  PIR detection angle 48 deg.  Power consumption: Standby current: < 5mA Capture current <140mA...
  • Page 37 STC-I850 General Information Storing conditions  Operating Environment: 14 to 104 deg F (-10 to 40 deg C). 20- 85% relative humidity, non-condensing. Special care instructions!!  The camera is designed to be weather resistant. Never attempt to immerse the unit in water or any other liquid. This will damage the unit and void the warranty.
  • Page 38 STC-I850  Do not open the camera for unauthorized service. This could cause serious damage to the unit, and will void the warranty. This camera is a precision electronic device. Do not attempt to service this camera yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.
  • Page 39 STC-I850 Picture / Image Capacity SD card High Base Based on 5.0MB 2.0MB 1.0MB 70MB data Size Built In 32MB 16MB 32MB 64MB 128MB 256MB 512MB 1GB* 1,024 2GB* 1,024 2,048 *Subject to card compatibility under different brands. www.stealthcam.net Toll Free 877-269-8490...

  • Page 40: Image Capacity Chart

    STC-I850 NOTE: Picture / Image Capacity Chart provides approximate number of images or AVI movies based on resolution settings and the size of memory card. These figures may vary depending on the amount of detail in the image. www.stealthcam.net Toll Free 877-269-8490...
  • Page 41 STC-I850 Moon Phase Symbol Chart www.stealthcam.net Toll Free 877-269-8490...

  • Page 42: Fcc Compliance

    STC-I850 Caution: Modification not approved by the party responsible for compliance could void user’s authority to operate the equipment. FCC Compliance This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
