Denver DMB-111HD Instruction Manual

High definition digital receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

HIGH Definition Digital Receiver
DMB-111HD
H D M I
DVB-T PLAYER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMB-111HD and is the answer not in the manual?

Questions and answers

Related Manuals for Denver DMB-111HD

Summary of Contents for Denver DMB-111HD

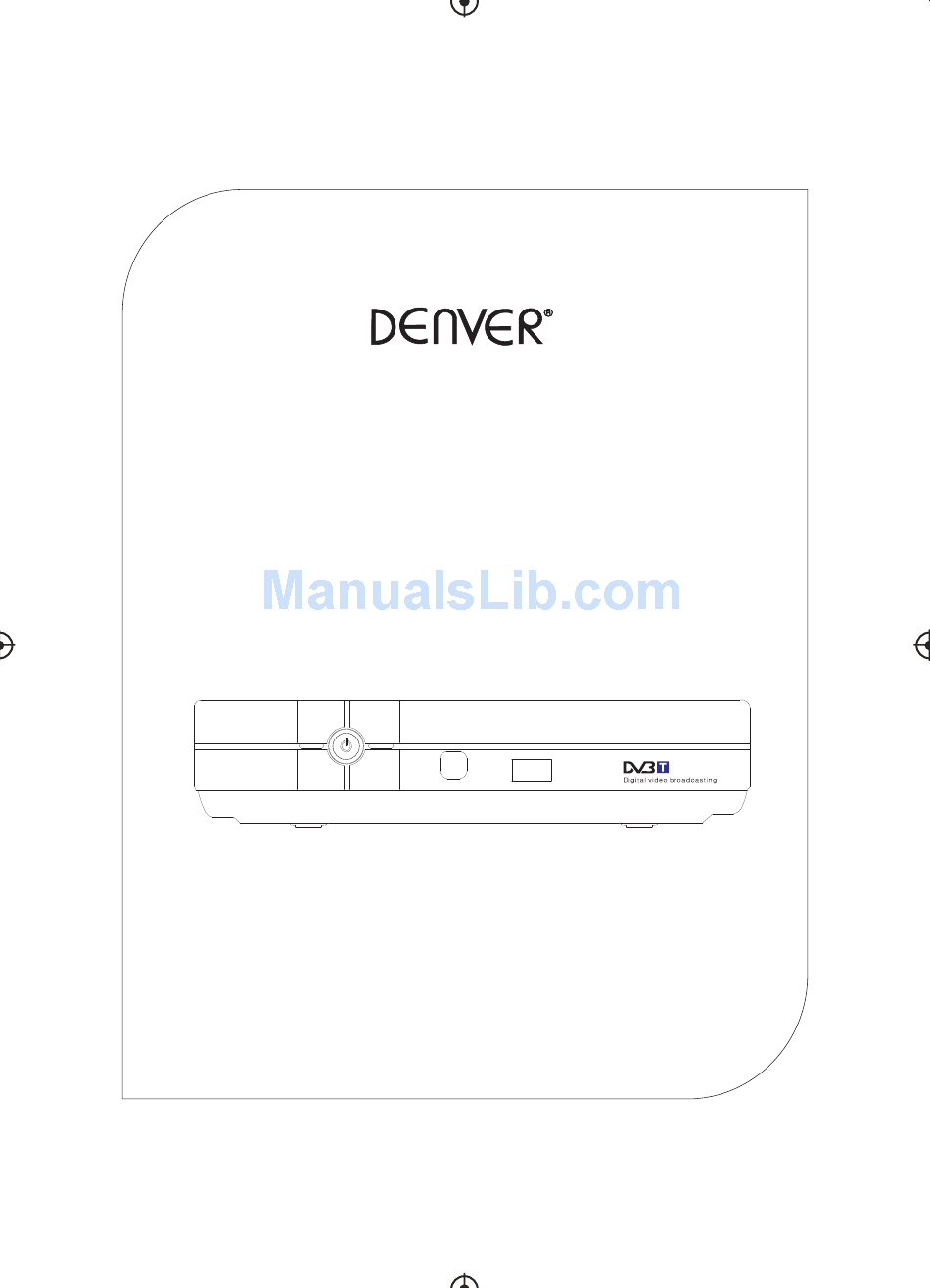

  • Page 1 HIGH Definition Digital Receiver DMB-111HD H D M I DVB-T PLAYER...

  • Page 2: Important Safety Instructions

    Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings, install in accordance with the instructions. 8) Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

  • Page 3: Safety Instructions

    Safety Instructions Always read the safety instructions carefully Keep this Instruction Manual for future reference Keep this device away from humidity Lay this device on a reliable flat surface before setting it up D o not stand it on soft furnishings The power cable/disconnect device shall remain easy to operate/disconnect.

  • Page 4: Front Panel

    Front Panel H D M I CHANNEL DOWN: Used to change channels without using the Remote Control. 2.POWER BUTTON: Push to turn on/off the main power supply. 3.CHANNEL UP : Used to change channels without using the Remote Control. 4.REMOTE CONTROL SENSOR: Used to receive the signal from the Remote Control. 5.USB: For software upgrade and media playback.

  • Page 5: Remote Control Instruction

    Remote Control Instruction POWER: turn on or off the receiver <0>-<9>: Numeric keys. CH-/CH+: Program changing keys. MENU: Display main menu on TV screen, and press again to disappear menu. To confirm current setting, or display all programs in no-menu mode. VOL-/ VOL+: adjust the volume.

  • Page 6: Installing The Batteries

    Installing the Batteries Remove the battery cover from the Remote Control and put 2xAAA size batteries inside the compartment. The diagram inside the Battery Compartment shows the correct way to install the batteries. 1.Open the cover 2.Install batteries 3.Close the cover Using the Remote Control To use the Remote Control, point it towards the front of the Digital Set Top Box.The Remote Control has a range of up to 7 metres from the Set Top...

  • Page 7: First Time Installation

    First Time Installation After all connections have been made properly, switch on TV and make sure the unit is connected to the Main Power. Press Power button to switch the unit on. If you are using the unit for the first time or have restored the unit to Factory Default, the Installation Guide Menu will appear on yourTV screen.

  • Page 8: Program Edit

    (a) Program Edit To edit your program preferences (lock, skip, fav, move delete or rename), you will need to enter the Program Edit Menu. This Menu requires a password to access. Enter the default password '0000'. The master unlock password: 8888 Program Edit ALL TV 003 ITV1...
  • Page 9 Move a TV or Radio Program 1 .Select the preferred channel then press the RED button. A move symbol will appear. 2. Press to move the channel. 3. Press OK to confirm. 4. Repeat the above steps to move more channels. Lock Program You can lock selected programs for restricted viewing.
  • Page 10 (2). Picture Setting To access the Menu，press MENU then select [Picture] using the key. The Menu provides options to adjust the video settings. Press to select an option and press to adjust that setting.Press EXIT to exit the menu. Picture Aspect Ratio 16:9 Wide Screen Resolution...
  • Page 11 (3). Channel Search To access the menu, press MENU and select [Search Channel] using the keys. This Menu provides options to adjust the Search Channel settings. Press to select an option and press to adjust the settings. Press EXIT to exit the Menu Channel Search Auto Search Manual Search...
  • Page 12 Press the key to select the channel frequency. 3. Press OK to start searching channels. If a channel is found, it is saved and added to the channels list. If channels can not be found during searching, the unit will exit automatically. (c) Country Select your country of residence (d) Antenna Power...
  • Page 13 OSD (On Screen Display) Language Select an OSD language. (b) Subtitle Language Select the preferred subtitle language. (c) Audio Language Select the preferred audio language for watching TV channels. If the language is not available, the default program language will be used. (d)Digital Audio Select the digital audio model.
  • Page 14 Restore Factory Default Reset your Set Top Box to the DefauIt Factory Settings. In Main Menu select [Restore Factory Default] using the keys and press OK or to select. Enter your password or the default password '0000' and press OK to confirm. This option will delete all preset channels and settings.
  • Page 15 (b)Photo configure: -Slide Time: adjust slide show interval to 1一8 seconds. -Slide Mode: adjust slide show effect as mode 0一59 or random -Aspect Ratio: [Keep]: Play picture in its original aspect. [Discard]: Play picture in full screen mode. (c) Movie Configure: Subtitle Specific: [Small]: Displays the subtitle as small mode.
  • Page 16 (8). Recording Living TV The most unique feature is its ability to record living TV. There is two ways you can headle this. the first is to connect a USB storage device to the usb port and press the record button on the remote. The other way is to schedule a program to record using the EPG.

  • Page 17: Troubleshooting

    Troubleshooting Problem Potential Reasons What to do Connect the power Power isn't connected No picture The power switch is not on Switch on the power Screen shows DVB-T cable not connected Plug in the DVB-T cable No Signal Incorrect setting Reset setting No or incorrect connection No sound from...

  • Page 18: Technical Specifications

    Technical Specifications Item Sub Item Parameter 170~230MHz Tuner Input Frequency 470~860MHz -78~-82dBm RF Input level IF Bandwidth 7MHz and 8MHz QPSK,16QAM,64QAM Modulation MPEG4 AVC/H.264 HP@L4 Video Decoder Format MPEG2 MP@ML.HL NTSC:480i/p, 720P, 1080i, Output Format PAL ,576i/P,720P, 1080i, 1XHDMI(1.3C),1Xscart ,1XCVBS Output Port Decoder Format Audio...
