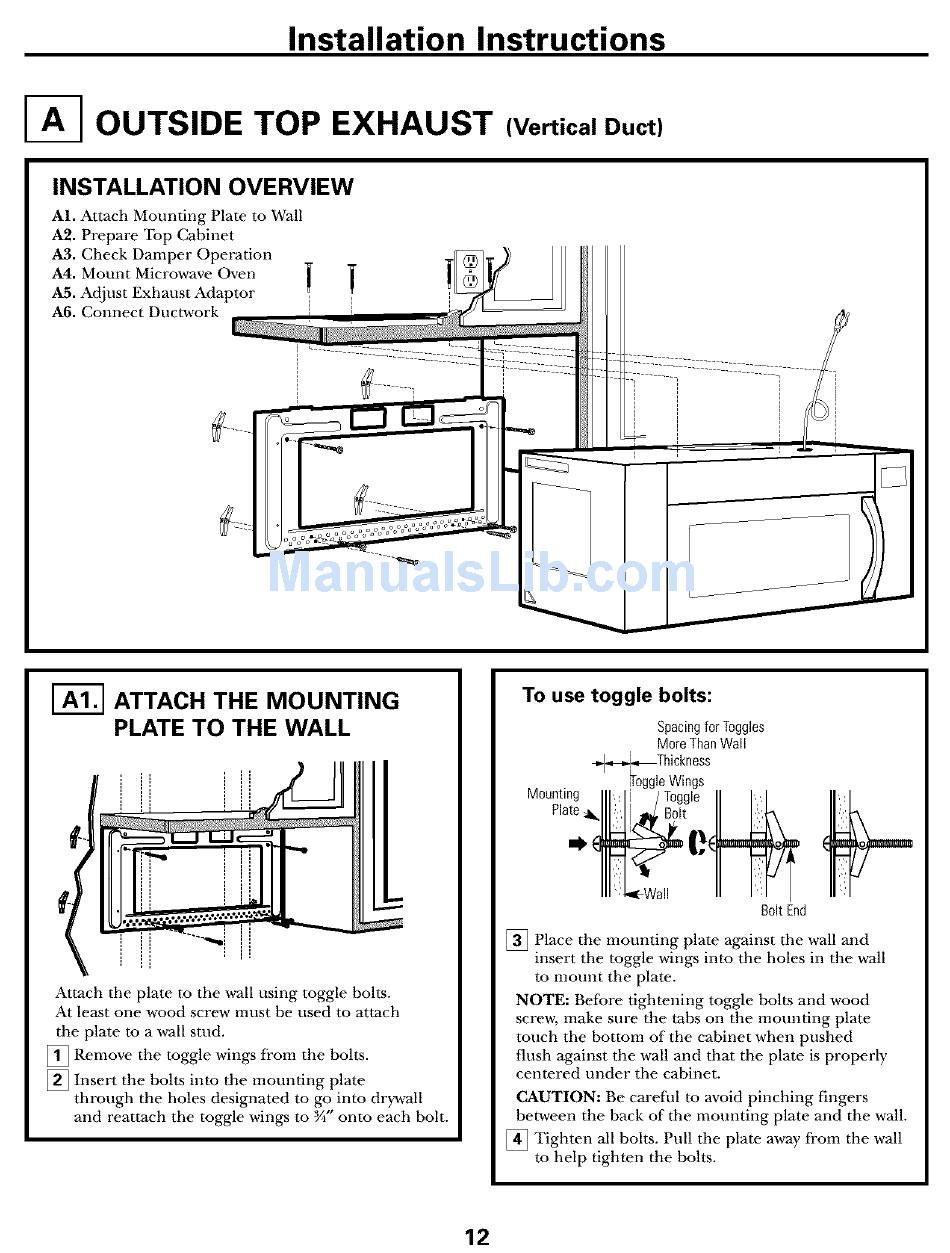

Installation Instructions
OUTSIDE TOP EXHAUST
(Vertical Duct)
INSTALLATION OVERVIEW
AI. Attach Mounting Plate to Wall
A2. Prepare Top Cabinet
33. Check Damper Operation
A4. Mount Microwave Oven
AS. Adjust Exhaust Adaptor
A6. Connect Ductwork
I-_ ATTACH THE MOUNTING
PLATE TO THE WALL
1
Attach the plate m the wall using toggle bolts.
At least one wood screw must be used to attach
the plate m a wall stud.
[]Remove the toggle wings fi'om the bolts.
[] lnsert the bolts into the mounting plate
through the holes designated to go into drywall
and reattach the toggle wings to s/(, onto each bolt.
To use toggle bolts:
Spacingfor Toggles
MoreThanWall
_l.a,a_Thickness
Lfoggle Wings
Mounting i To le
i gg
Plate l ,lll h BoltII I:k
IIU lq_WBll U i i
Bolt End
[] Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall
to mount the plate.
NOTE: Befbre tightening toggle bolts and wood
screw, make sure the tabs on the mounting plate
touch the bottom of the cabinet when pushed
flush against the wall and that the plate is properly
centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers
between the back of the mounting plate and the wall.
[] Tighten all bolts. Pull the plate away fi'om the wall
to help tighten the bolts.
12
