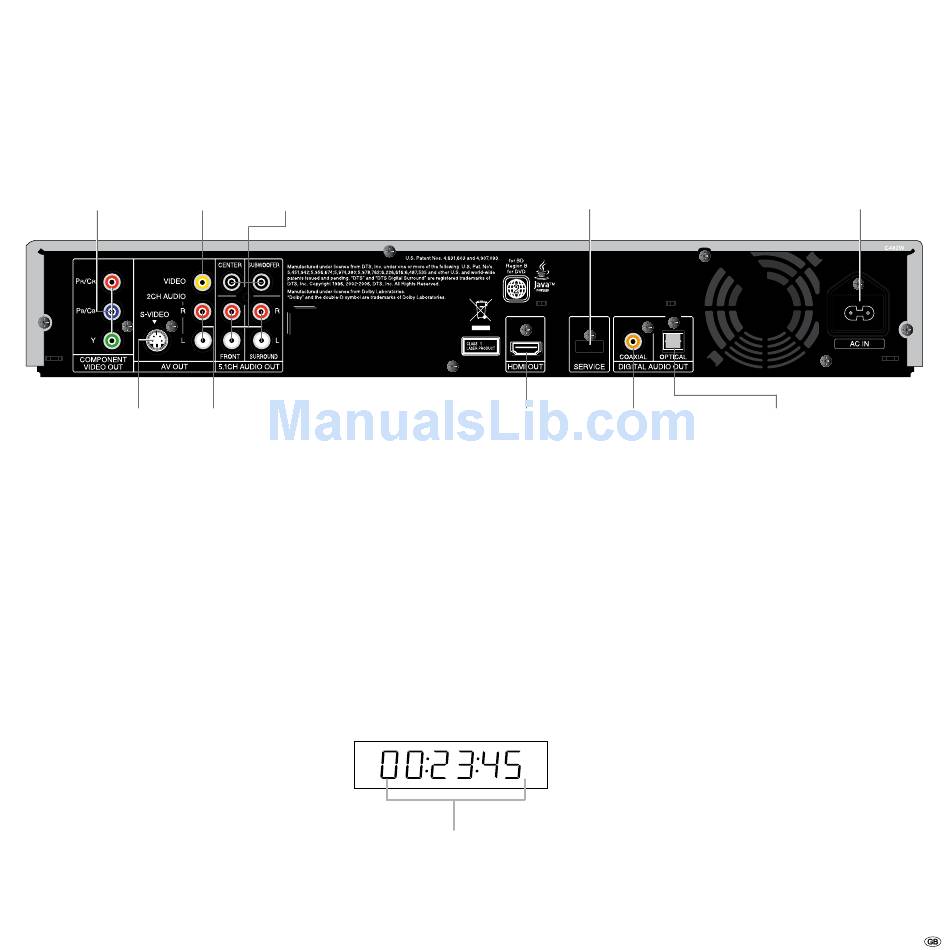

Rear View & Display
COMPONENT VIDEO
VIDEO
OUT (Y Pb Pr)
Connection of a
Connection of a TV with
TV with video
component inputs (Cinch)
input
2CH AUDIO L/R
S-VIDEO
Connection of a TV with
Connection of a
stereo audio inputs (Cinch)
TV with S-video
input
Important: Do not touch the inside pins in the connecting sockets on the back of the unit!
Electrostatic discharge which may occur can cause lasting damage to the unit.
5.1 CH AUDIO OUT
Connection of a surround
sound audio system (Cinch)
Numerical information
Total playback time, title /
chapter / track number, status etc.
USB socket
only for service
COAXIAL DIGITAL
HDMI OUT
Coaxial
Connection of a TV
audio digital output
with HDMI input
Mains cable
OPTICAL AUDIO OUT
Optical audio digital
output
5 -
