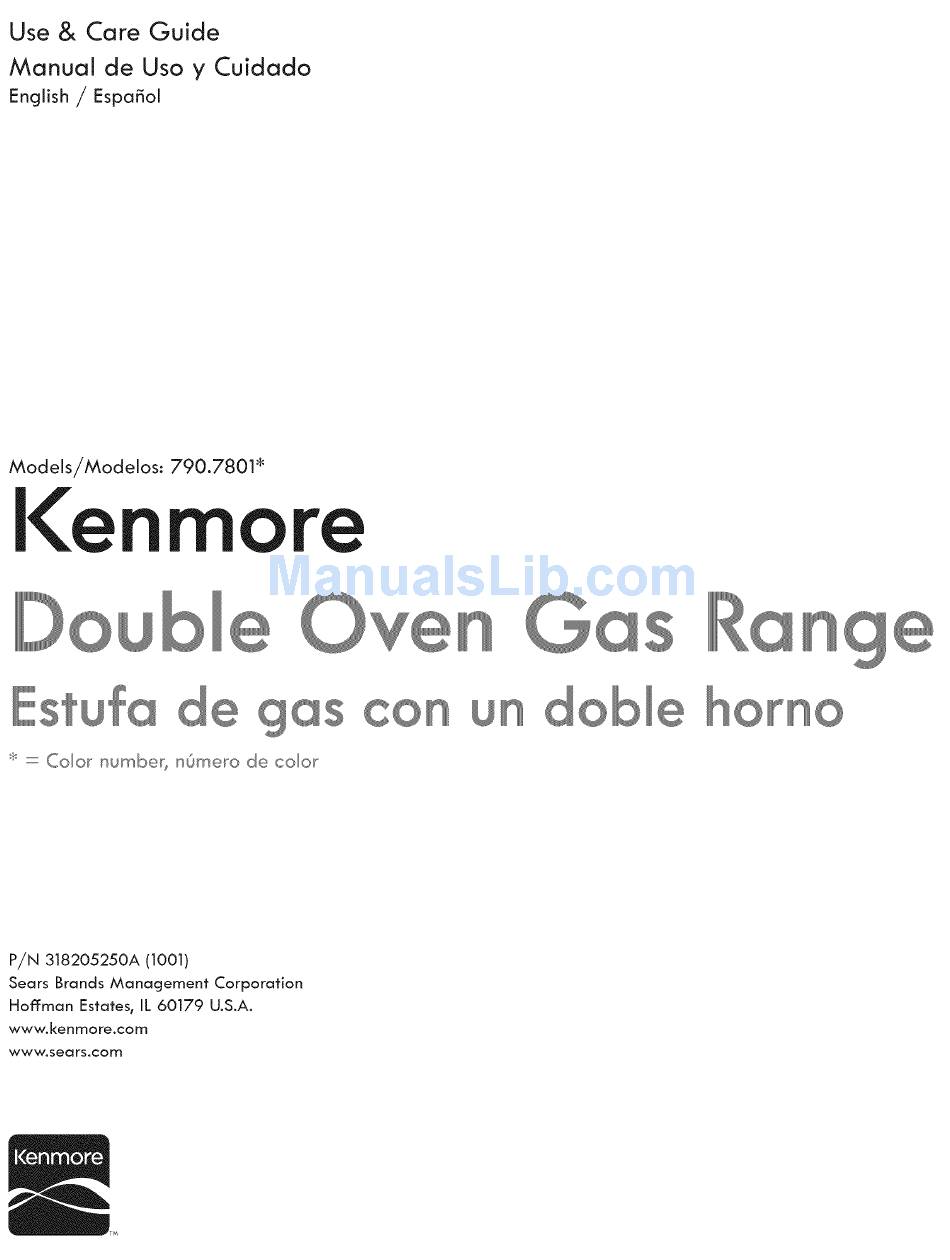

- Page 1 Use & Care Guide Manual de Uso y Cuidado English / Espa_ol Models/Modelos: 790.7801 do_l_ P/N 318205250A (lOOl) Sears Brands Management Corporation Hoffman Estates, IL 60179 U.S.A. www.kenmore.com www.sears.com...
- Page 2 Sears Brands Management Corporation, Hoffman Estates, IL 60179 - Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8 Serial Plate Location Product Record...
- Page 3 This may reduce the risk of personal in serious burns or other injury. injury and the range. Sears Parts & Repair is the damage Do not use the ovens for storage. recommended repair service for this appliance. Do not store items of interest to children •...
- Page 4 Instructions Important Safety Know which knob controls each surface burner. Place a Storage on Appliance. Flammable materials should not be stored in an oven, near surface burners. This includes paper, pan of food on the burner before turning it on, and then plastic and cloth items, such as cookbooks, plasficware turn the burner off: before removing...
- Page 5 instructions important Safely * Do not cleon the oven door gasket. The door gasket * Do not touch a hot oven light bulb with a damp cloth. Doing so could cause the bulb to break. Disconnect essential for a good seal. Care should be taken not to rub, appliance or shut off: the power to the appliance before...
- Page 6 Range Features Your gas range includes: Electronic Oven Control with Timer Left Front Burner Valve & Knob Left Rear Burner Valve & Knob Right Front Burner Valve & Knob Right Rear Burner Valve & Knob Easy to clean Upswept Cooktop Burner Grates One Piece Handle Self-Clean...
- Page 7 Before Setting Surface Burner Controls Locations of the Gas Surface Burners Your range is equipped with gas surface burners with different BTU ratings. The ability to heat food quicker and in larger volumes increases as the burner size increases. The small SIMMER burner is best used for simmering delicate sauces, etc.
- Page 8 Seffing Surface Burner Controls Operating the Gas Surface Controls: Do not place plastic items Place cooking utensil on surface burner. such as salt and pepper shakers, spoon Push the surface control knob down and turn counterclockwise out of the holders or plastic wrappings on fop of OFF position...
- Page 9 Surface Cooking CORRECT INCORRECT Use Proper Cookware ° Curved and warped pan bottoms. Cookware should IL ..have flat bottoms that make good contact * Flat bottom and straight sides. ° Pan overhangs burner grate by with the entire surface more than 2.5 cm (1").
- Page 10 the Oven Controls Before Setting Oven Vent Location Upper & Lower Oven Vents See illustration on left side for venting location of each oven. When the oven is on, warm air is released through the vent. This venting is necessary for proper circulation inthe oven and good baking...
- Page 11 Control Pad Features READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various features functions of the oven as described below. Detalled instructions for each feature function follow later in this Use & Care Guide.
- Page 12 Setting Oven Controls Changing Between 12 or 24 Hour Time of Day Display Press and hold (_ pad for 6 seconds. "CLO" and the current time of day will appear in the display. A beep will sound and "12h" or "24h" wiii appear in the display.
- Page 13 Setting Oven Controls Note: The time of clay must first be set in order to operate the oven. To Set or Change the Temperature Baking The Bake pad controls normal baking. The oven can be programmed to bake at any temperature from 170°F to 550°F.
- Page 14 Setting Oven Controls To Set the Timed Bake Feature The Cook Time pad controls the Timed Bake feature. Timed Bake allows the oven to be set to cool< for a specific length of time and shut off automatically. The oven will shut off and will countdown is finished.
- Page 15 Setting Oven Controls Oven Baking For best cooking results_ heat the oven before baking cookies_ breads_ cakes_ pies or pastries_ etc. There is no need to pre= heat the oven for roasting meat or baking casseroles. The cooking times and temperatures needed to bake a product may vary slightly from your previously...
- Page 16 Setting Oven Controls Broil Not supplied Broiling is a method of cooking tender cuts of meat by direct heat under the broil with appliance burner of the oven. Be sure you center your broiler pan (available by mail order) directly under the broil burner for best results.
- Page 17 Setting Oven Controls To Set the Sabbath Feature (far use an the Jewish Sabbath & Holidays) The Cook Time and Delay Start pads are used to set the Sabbath feature. The Sabbath feature may only be used with the Bake pad. The oven temperature may be set higher or lower after setting the Sabbath feature (the oven temperature...
- Page 18 Setting Oven Controls Setting the Warm & Hold Feature The Worm & Hold pad turns ON the Warm & Hold feature and will maintain an oven temperature of 170°F (76°C). Worm & Hold feature will keep oven baked foods warm for serving up to 3 hours after cooking has finished.
- Page 19 Self-Cleaning During the self=cleanlng ..c?OX .._ ..cycle, the outside of the range can become Delay Flex very hot to the touch. DO NOT leave small children unattended near the appliance....UPPER OVEN LOWER OVEN The health of some birds is Self-Cleaning Oven extremely...
- Page 20 Self-Cleaning To avoid possible What to Expect during Cleaning burns use care when opening While the oven is in operation_ the oven heats to temperatures much higher than oven door after the Self-Cleaning those used in normal cooking. Sounds of metal expansion and contraction cycle.
- Page 21 General Care & Cleaning Before cleaning any part of the oven, be sure all controls are turned OFF and the oven is COOL. REMOVE SPILLOVERS AND HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANINGS WILL REDUCE THE EXTENT AND DIFFICULTY OF MAJOR CLEANING LATER.
- Page 22 Sears Service. Caii |-800-4-MY-HOME® (See back cover). Do not remove any parts from the cooktop until they have completely cooled and are safe to handle. Do not operate...
- Page 23 General Care & Cleaning Removing and Replacing the Lift-Off Oven Door The door is heavy. For safe, temporary storage, lay the door flat with the inside of the door facing down. To Remove Oven Door: Open oven door completely (horizontal with floor - See Fig.
- Page 24 Reprogram the oven. If a fault reoccurs, record the fault number. Press (example Fll). STOP and call Sears or another qualified servicer. "d-O" The door was left open and controls set for self-cleaning cycle. Close the door and push isdisplayed.
- Page 25 House fuse has blown or circuit breaker has tripped after the oven has been installed and previously operating. Call Sears or another qualified servicer. Oven smokes excessively Make sure the oven door is closed. Door should be closed during broiling.
- Page 26 Servicio t_cnico por expertos (mas de 10000 t_cnicos autorizados Sears), Io cual significa que quien repare o realice el mantenimiento de su Expert service by a force of more than 10,000 authorized producto sera un profesional de confianza.
- Page 27 Notes...
- Page 28 ® Registered Trademark / TMTrademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries ® Marca Registrada / TMMarca de Fabrica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC in otros paises...
