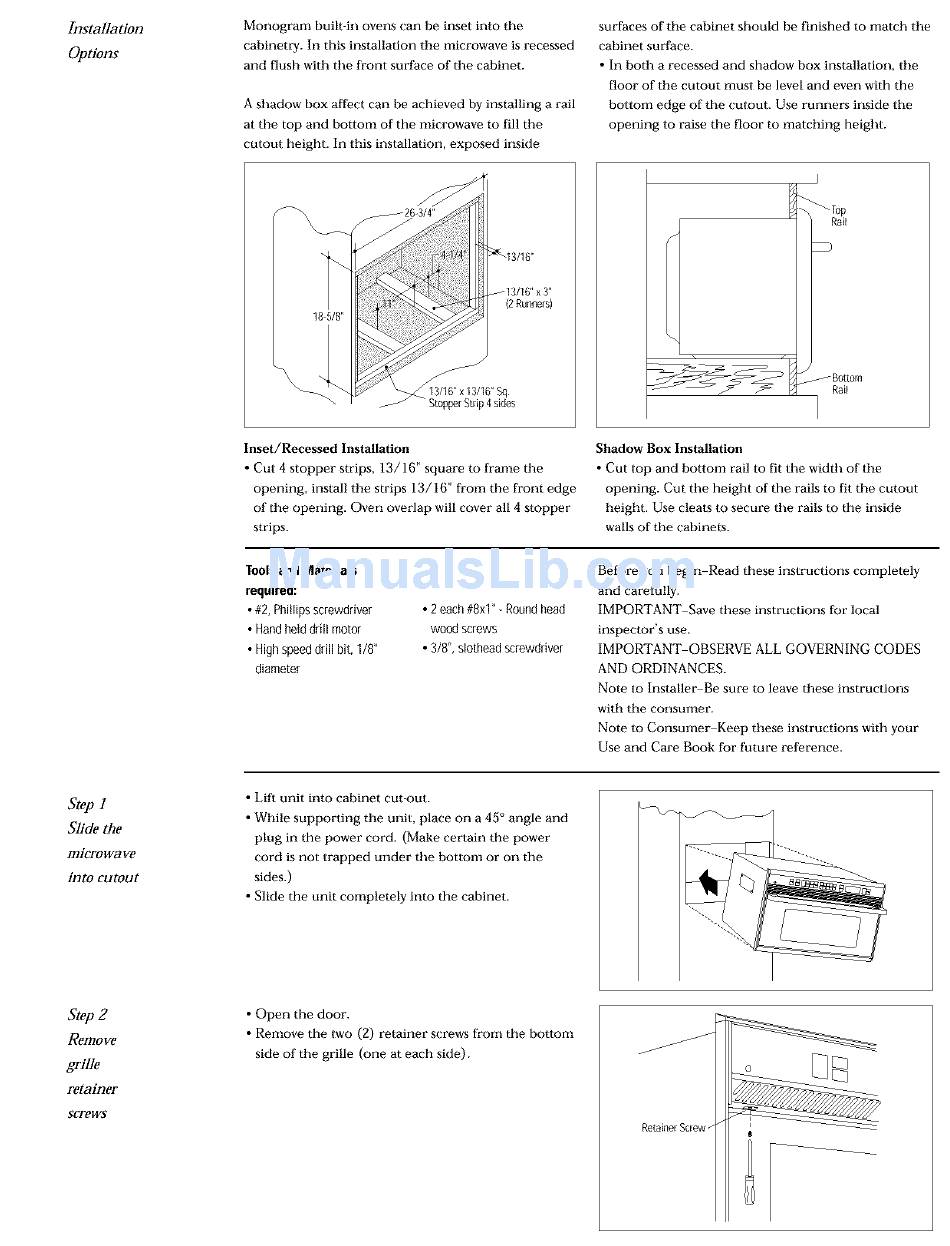

GE ZMW2OOOB Installation Instructions page 3

Installation
Options
Monogram built-in ovens can be inset into the
cabinetry. In this installation the microwave is recessed
and flush with the front surface of the cabinet.
A shadow box affect can be achieved by installing a rail
at the top and bottom of the microwave to fill the
cutout height. In this installation, exposed inside
surfaces of the cabinet should be finished to match the
cabinet surface.
• In both a recessed and shadow box installation, the
floor of the cutout must be level and even with the
bottom edge of the cutout. Use runners inside the
opening to raise the floor to matching height.
Inset/Recessed Installation
• Cut 4 stopper strips, 13/16" square to frame the
opening, install the strips 13/16" from the fi'ont edge
of the opening. Oven overlap will cover all 4 stopper
strips.
Shadow Box Installation
• Cut top and bottom rail to fit the width of the
opening. Cut the height of the rails to fit the cutout
height. Use cleats to secure the rails to the inside
walls of the cabinets.
Tools and Materials
required:
• #2, Phillips screwdriver
• Handhetd drill motor
• High speed drill bit, 1/8"
diameter
• 2 each #8x1" Round head
wood screws
• 3/8", slothead screwdriver
Before you begin Read these instructions completely
and carefully.
IMPORTANT Save these instructions for local
inspector's use.
IMPORTANT OBSERVE ALL GOVERNING CODES
AND ORDINANCES.
Note to Installer Be sure to leave these instructions
with the consumer.
Note to Consumer Keep these instructions with your
Use and Care Book for future reference.
Step 1
Slide the
microwave
into cutout
• Lift unit into cabinet cut-out.
• While supporfing the unit, place on a 45 ° angle and
plug in the power cord. (Make certain the power
cord is not trapped under the bottom or on the
sides.)
• Slide the unit completely into the cabinet.
Step 2
Relnove
grille
retainer
SCFPWS
• Open the door.
• Remove the iwo (2) retainer screws from the bottom
side of the grille (one at each side).
RetainerScrew/
O
