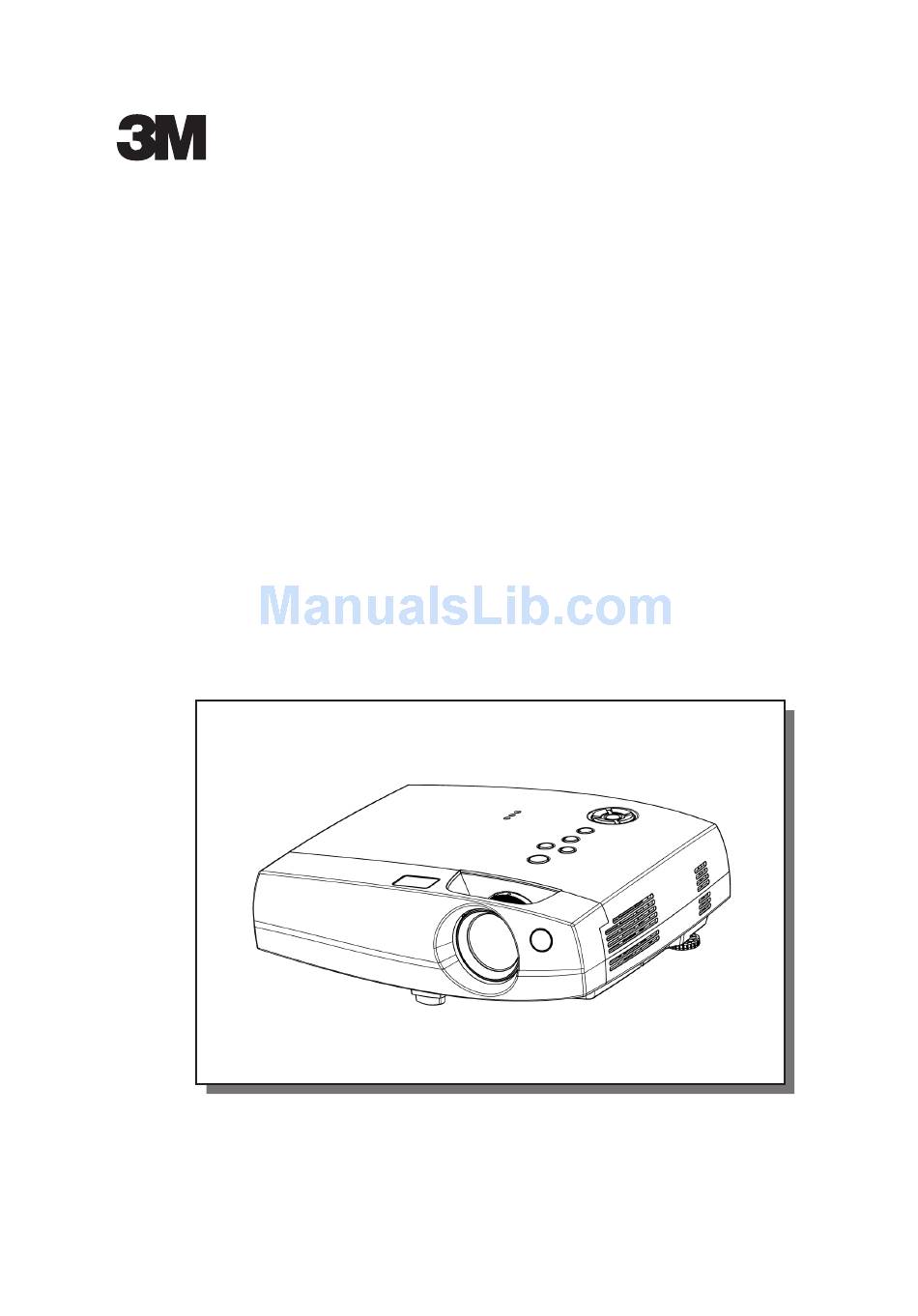

  • Page 1 S50/X50 Digital Projector Operator's Guide © 3M 2003 3M™ Digital Projector S/X50...

  • Page 2: Table Of Contents

    WHAT TO DO ADJUSTMENT FEATURE ... 19 WHEN YOU THINK A MACHINE CORRECTING DEFECT HAS OCCURRED ..35 KEYSTONE DISTORTIONS ..20 SPECIFICATIONS ......38 USING THE MAGNIFY FEATURE ... 21 ACCESSORIES ......39 © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 3: Projector Features

    AUTO BLANK Quick Start Guide MAGNIFY HOME PAGE UP VOLUME PAGE DOWN MUTE FREEZE KEYSTONE Two AA batteries POSITION MENU USB mouse ENTER (for the remote cable RESET control) Remote control Soft case © 3M 2003. 3M™ Digital Projector S/X50...
  • Page 4 (1) Connect the connector of the electrical power cord to the AC inlet of the main unit. (2) Firmly plug the power cord's plug into the outlet Power outlet AC inlet Power cord © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 5: Part Names

    2 port video in port audio in L port audio in R port component video port component video port coontrol port component video Y port rgb out port usb port © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 6: The Remote Control

    VOLUME button MAGNIFY buttons PAGE DOWN MUTE MUTE button FREEZE KEYSTONE FREEZE button KEYSTONE button KEYBOARD buttons POSITION MENU POSITION button MENU button ENTER Cursor buttons RESET RESET button ESC button ENTER button © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 7: Setting Up The Projector

    When you release the elevator button, the elevator foot will lock into position. As necessary, you can also finely adjust the left-right slope of the projector by twisting the rear foot adjuster screw by hand Rear Foot Adjuster © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 8: Adjusting The Screen Size And Projection Distance

    196 (5.0) 235 (6.0) 8 (19) 81 (206) 200 (5.0) 261 (6.6) 314 (8.0) 10 (26) 108 (275) 250 (6.3) 327 (8.3) 393 (10.0) 13 (32) 135 (343) 300 (7.5) 393 (10.0) 472 (12.0) 15 (39) 162 (412) © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 9: Connecting Your Devices

    • Secure the screws on the connectors and tighten. Indicates the corresponding reference page Display monitors DVD players Laptop computers VCRs Desktop computers © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 10: Ports And Cables

    • Please use the standard drivers as this projector is a Plug-and-Play monitor. • Plug-and-Play may not function properly with some type of computers. Use the rgb in 2 port if Plug-and-Play does not function correctly. © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 11: Connecting To A Computer

    • Some computers may have multiple display screen modes. Use of some of these modes will not be possible with this projector. • For some RGB input modes, the optional Mac adapter is necessary. © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 12: Connecting To A Dvd Player

    If using a S-video connection DVD player Connecting to a VCR rgb in audio in s-video in L/ (mono) video in component viideo rgb out control S-VIDEO cable If using a S-video connection © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 13: Connecting To A Display Monitor

    CONNECTING YOUR DEVICES (continued) Connecting to a Display Monitor rgb in audio in s-video in L/ (mono) video in rgb out component viideo control Display monitor © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 14: The Remote Control

    • When strong light, such as direct sunlight or light from an extremely close range (such as from an inverter fluorescent lamp), hits the projector's remote sensor, the remote control may cease to function. Adjust the direction of the projector to keep light from directly hitting the projector's remote sensor. © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 15: Turning On The Power

    NOTE Turn the power on/off in right order. • Power on the projector before the computer or video tape recorder. • Power off the projector after the computer or video tape recorder. © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 16: Selecting An Input Signal

    Select the signal you wish to project. video in s-video in VIDEO component video Use the zoom ring to adjust the screen size Use the focus ring to focus the picture © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 17: Turning Off The Power

    When the projector has menu power switch completed powering down, the power indicator will go off. POWER indicator NOTE • Except in emergencies, follow the above- mentioned procedure for turning power off. © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 18: Adjusting The Volume

    MAGNIFY HOME PAGE UP VOLUME a few seconds.) PAGE DOWN MUTE Press the MUTE button again to restore the sound. FREEZE KEYSTONE VOLUME MUTE MUTE POSITION MENU ENTER RESET © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 19: Adjusting The Position

    Press the POSITION button again to close the dialog and complete this operation. (Even if you don't do anything, the dialog will automatically disappear after a few seconds.) This function is only available for rgb in 1/2 input. © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 20: Using The Automatic Adjustment Feature

    This feature is available only if VIDEO is set to AUTO in the INPUT menu. NOTE The automatic adjustment operation requires approximately 10 seconds. Also, please note that it may not function correctly with some input signals. © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 21: Correcting Keystone Distortions

    NOTE • This function may not be work well with some types of input signals. • The adjustable range for correcting keystone distortions will vary with the type of input signal. © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 22: Using The Magnify Feature

    • If the projector continues projecting the same image for a long time (i.e. you forget to exit FREEZE mode), the image might possibly remain as an afterimage. Do not leave the projector in FREEZE mode for too long. © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 23: Signal Searching

    (from the SCREEN menu, select BLANK). Press the BLANK ASPECT AUTO BLANK button again to remove the blank screen, and return to the MAGNIFY HOME PAGE UP VOLUME input signal screen. PAGE DOWN MUTE FREEZE KEYSTONE BLANK POSITION MENU © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 24: Using The Menu Functions

    Press the MENU button to hide the menu and finish your operation. Alternatively, press the or ESC button to return to the previous display. [ex. Adjusting SHARPNESS] Use the buttons to adjust the SHARPNESS. © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 25: Multifunctional Settings

    Select Picture Position (for 16:9/SMALL Picture): PICT.POSIT. CENTER BOTTOM Select Gamma Mode: GAMMA NORMAL CINEMA DYNAMIC Select Mirror Status: MIRROR NORMAL H:INVERT V:INVERT H&V:INVERT Select Menu Language: ENGLISH FRANÇAIS DEUTSCH ESPAÑOL LANGUAGE ITALIANO NORSK NEDERLANDS POTUGUÊS © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 26: Picture1 Menu

    In such a case, initialize H SIZE with the RESET button. Select Over-scan Ratio (for video/s-video/component video): LARGE MIDDLE SMALL OVER SCAN • It is recommended to select SMALL to avoid flicker at the lower part of the picture. © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 27: Input Menu

    • In the SYNC ON G mode, the picture may be distorted with certain input signals. In such a case, remove the signal connector so that no signal is received and turn SYNC ON G off, and then reconnect the signal. © 3M 2003. 3M™ Digital Projector S/X50...
  • Page 28 Invalidation of MyScreen registration function: TURN ON TURN OFF MyScreen Lock When TURN ON is selected, the MyScreen category (see this Table, above) cannot be executed; in this way, one can prohibit rewrites (“writeovers”) of the MyScreen. © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 29: Option Menu

    The message functions will not operate properly if the filter time is not reset correctly. • Before cleaning or replacing the filter, carefully read the descriptions headed "THE AIR FILTER". © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 30: Operating The Pc Screen

    • This function is not available while the lamp is warming up (the power indicator flashes green), while adjusting the volume and display, correcting for trapezoidal distortion, zooming in on the screen, using the BLANK function, or displaying the menu screen. © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 31: The Lamp

    • Obey local ordinances when disposing of used lamps. In most cases, it is possible to dispose of used bulbs in the same manner as used glass bottles, but in some cases, bulbs are sorted separately. • Do not use the projector with the lamp door removed. © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 32: Replacing The Lamp

    The lamp indicator is also red when the lamp unit reaches high temperature. NOTE • Before replacing the lamp, switch power OFF, wait approximately 20 minutes, and switch power ON again. If the lamp indicator is still red, replace the lamp. © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 33: The Air Filter

    Slowly turn the projector so that the top is facing up Turn on the projector, and use the menu to reset the filter timer • To reset the air filter timer, from the OPTION menu, select FILTER TIME. © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 34: Replacing The Air Filter

    • If the air filter becomes clogged by dust or the like, internal temperature rises and could cause malfunction. The power is automatically turned off in order to prevent the unit from overheating internally. © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 35: Other Care

    • Do not use cleaners or chemicals other than those listed above, including benzene and paint thinner. • Do not use aerosols or sprays. NOTE • Do not polish or wipe with hard objects. © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 36: When You Think A Machine Defect Has Occurred

    2,000 hours. Please be aware, however, that among lamp types, there are major differences in product lifetimes; a lamp may thus fail to light even prior to the functioning of the automatic shut-down function of this unit. © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 37: Regarding The Indicator Lamps

    OFF. Press the “ ” (power OFF) side of the main power switch, and wait for approximately 20 minutes. Please then use the unit only after having first confirmed that the unit has sufficiently cooled down. © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 38: What To Do

    PHASE is not properly adjusted. NOTE Although bright spots or dark spots may appear on the screen, this is a unique characteristic of liquid crystal displays, and such do not constitute or imply a machine defect. © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 39: Specifications

    2) .....2 audio in(R, L) ....1 VIDEO Terminal OUT Terminal video in ......1 rgb out......1 Terminal s-video in .......1 CONTROL Terminal component video control ......1 (Y, C ) ..1 usb .........1 Dimension Diagram © 3M 2003. 3M™ Digital Projector S/X50...

  • Page 40: Accessories

    Ultra value warranty X50 (US only) ............78-6969-9705-1 Mac Adapter ..................... 78-8118-3308-2 How to Order Please order these parts through your dealer, or contact 3M Customer Service at the following number: In U.S. or Canada : 1-800-328-1371 In other locations, contact your local 3M sales office.
  • Page 41 200mVrms, 50 kΩ (max. 3.0Vp-p) audio in R L signal input RCA jack Video: Analog 0.7Vp-p, 75Ω output impedance (positive) H/V. sync.: TTL level (positive/negative) rgb out Signal output Composite sync.: TTL level D-sub 15-pin shrink jack © 3M 2003 3M™ Digital Projector S/X50...

  • Page 42: Example Of Computer Signal

    • The image may not be displayed correctly when the input sync. signal is “Composite Sync.” or “Sync. on G”. © 3M 2003 3M™ Digital Projector S/X50...
  • Page 43 XGA (85Hz) 1152×864 (75Hz) 10.7 1152×864 (75Hz) 1280×960 (60Hz) 11.9 1280×960 (60Hz) 1280×1024 (60Hz) 11.9 1280×1024 (60Hz) 1024 1280×1024 (75Hz) 1280×1024 (75Hz) 1024 1280×1024 (85Hz) 1280×1024 (85Hz) 1024 1600×1200 (60Hz) 1600×1200 (60Hz) 1200 © 3M 2003 3M™ Digital Projector S/X50...

  • Page 44: Serial Mouse

    Computer (B type) USB jack (A type) — DATA — DATA DATA DATA USB cable PS/2 Mouse Projector Computer DATA DATA Mouse jack CONTROL Terminal Mini DIN 6-pin SEL0 D-sub 15-pin shrink jack © 3M 2003 3M™ Digital Projector S/X50...

  • Page 45: Communications Setting

    Action (byte_0 - 1) Action Classification Content Change setting to desired value. Read projector internal setup value. INCREMENT Increment setup value by 1. DECREMENT Decrement setup value by 1. EXECUTE Run a command. © 3M 2003 3M™ Digital Projector S/X50...
  • Page 46 • Provide an interval of at least 40ms between the response code and any other code. • The projector outputs test data when the power supply is switched ON, and when the lamp is lit. Ignore this data. • Commands are not accepted during warm-up. © 3M 2003 3M™ Digital Projector S/X50...

  • Page 47: Command Data Chart

    00 00 Reset Contrast Reset Execute BE EF 06 00 A4 D2 06 00 01 70 00 00 V.Position Execute BE EF 06 00 E0 D2 06 00 02 70 00 00 Reset © 3M 2003 3M™ Digital Projector S/X50...
  • Page 48 02 00 03 20 00 00 Increment BE EF 06 00 EF D2 04 00 03 20 00 00 Brightness Decrement BE EF 06 00 3E D3 05 00 03 20 00 00 © 3M 2003 3M™ Digital Projector S/X50...
  • Page 49 02 00 02 22 00 00 Increment BE EF 06 00 D3 72 04 00 02 22 00 00 Color Decrement BE EF 06 00 02 73 05 00 02 22 00 00 © 3M 2003 3M™ Digital Projector S/X50...
  • Page 50 02 00 C0 30 00 00 Lamp Time BE EF 06 00 C2 FF 02 00 90 10 00 00 Filter Time BE EF 06 00 C2 F0 02 00 A0 10 00 00 © 3M 2003 3M™ Digital Projector S/X50...
  • Page 51 The use of other replacement lamps, outdoor operation, or different voltages has not been tested and could damage the projector peripheral equipment and/or create a potentially unsafe operating condition. 3M Multimedia projectors and Wall Display Systems are designed to operate in a normal office environment. • 16˚ to 29˚C (60˚ to 85˚ F) •...
  • Page 52 The use of other replacement lamps, outdoor operation, or different voltages has not been tested and could damage the projector peripheral equipment and/or create a potentially unsafe operating condition. 3M Multimedia projectors and Wall Display Systems are designed to operate in a normal office environment. • 16˚ to 29˚C (60˚ to 85˚ F) •...
