3
Digital Media System
800 Series
Image Alignment Guide
July 2006 • 78-6970-9475-9 • Copyright © 2006, 3M Company. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Digital Media Systems 800 Series and is the answer not in the manual?

Questions and answers

Related Manuals for 3M Digital Media Systems 800 Series

Summary of Contents for 3M Digital Media Systems 800 Series

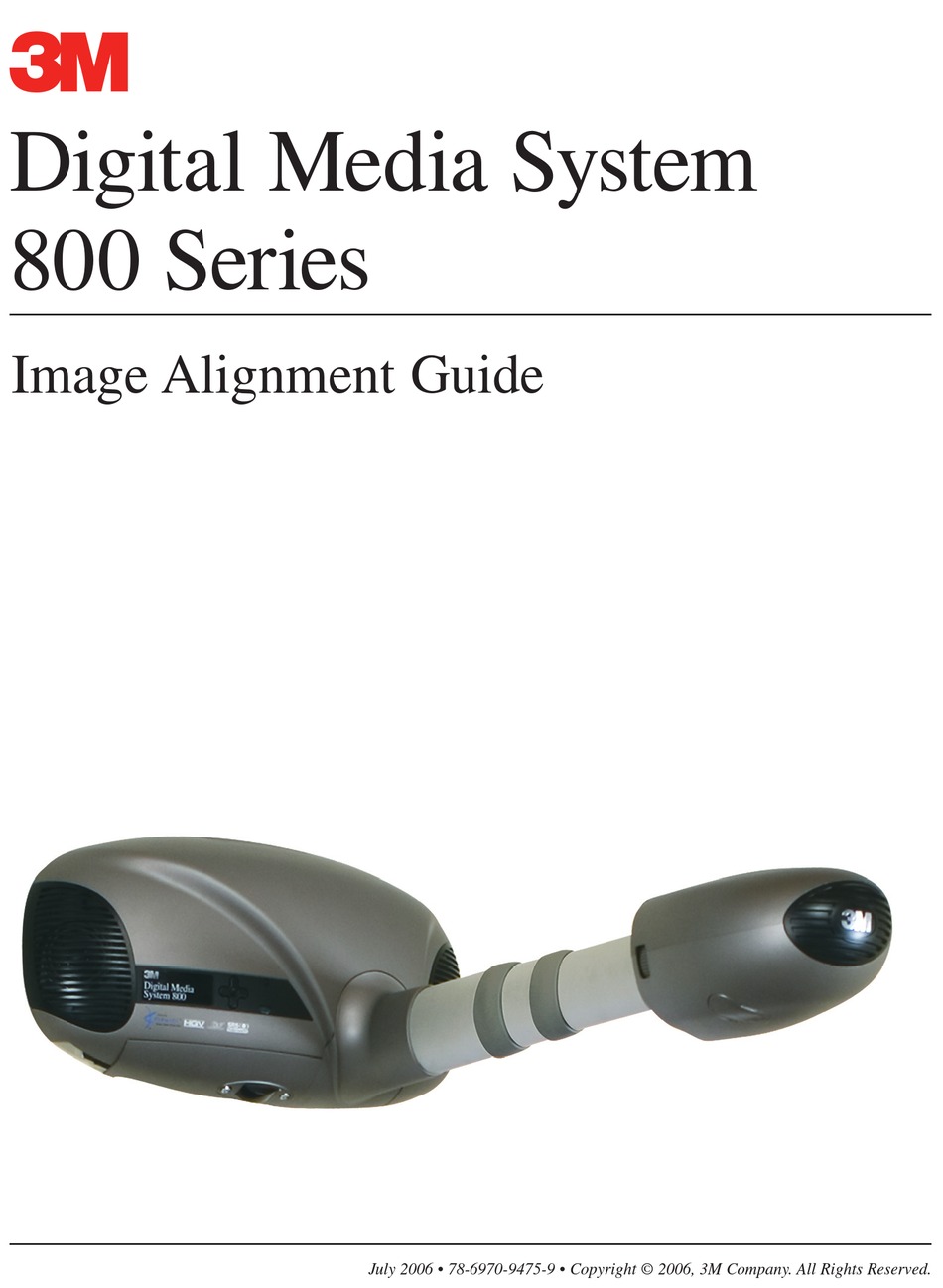

  • Page 1 Digital Media System 800 Series Image Alignment Guide July 2006 • 78-6970-9475-9 • Copyright © 2006, 3M Company. All Rights Reserved.

  • Page 2: Image Alignment

    Image Alignment ™ Digital Media System 800 Series Image Alignment Items and/or Actions Required Prior To Performing Alignment • Safety glasses • Phillips and flat head screw drivers Connect a video source to the unit and output the image onto the desired screen or wall. Adjust to desired screen size by unlocking the arm tabs.
  • Page 3 Image Alignment Digital Media System 800 Series ™ Coarse Alignment Procedure Loosen the base level locking screw. Locking Screw Adjustment Screw Turn the adjustment screw to align the top level of the image. Tighten the locking screw. If image is still not level: Unlock the arm adjust tab closest to the projection head.
  • Page 4 Image Alignment ™ Digital Media System 800 Series Fine Alignment Procedure 11. Use a flat head screw driver to remove the fine adjustment cover underneath the projector head. 12. Unlock the side-to-side locking screw. This screw is a pressure screw and only should be turned a Side-to-Side half a turn.
  • Page 5 Image Alignment Digital Media System 800 Series ™ 15. For fine adjustment to the top left and right Left Side Right Side corners of image, unlock the right and left locking Adjustment Adjustment screws. Screw Screw Locking Screw Locking Screw 16.
  • Page 6 You assume all risks and liability associated with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
