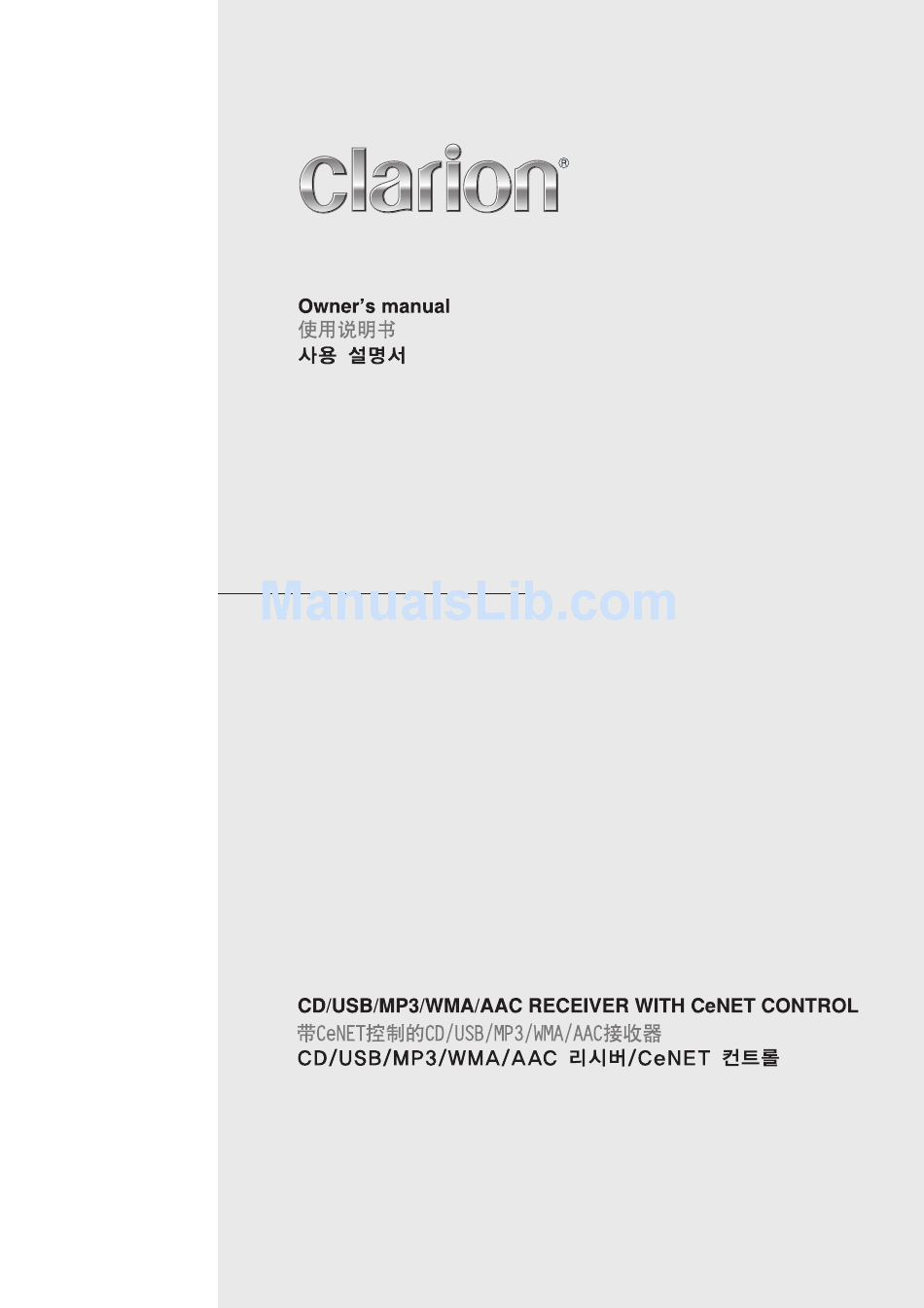

  • Page 1 CZ309A...
  • Page 2 CZ309A...

  • Page 3: Table Of Contents

    Thank you for purchasing this Clarion product. ∗ Please read this owner’s manual in its entirety before operating this equipment. ∗ Check the contents of the enclosed warranty card and keep it carefully with this manual. Contents 1. FEATURES ............................3 2.

  • Page 4: Precautions

    Display Screen In extreme cold, the screen movement may slow down and the screen may darken, but this is normal. The screen will recover when it returns to normal temperature. CZ309A...

  • Page 5: Controls

    [x], [v] buttons while in the radio mode. • Enter the fast-forward or fast-backward mode. [RDM] button [Q] (EJECT) button • Perform random play while in the CD/MP3/ WMA/AAC mode. • Eject a disc when it is loaded into the unit. CZ309A...

  • Page 6: Dcp (Detachable Control Panel)

    1. Insert the right side of the DCP into the main unit. 2. Insert the left side of the DCP into the main unit. connector Main unit connector Note: • If the DCP is dirty, wipe off the dirt with a soft, dry cloth only. CZ309A...

  • Page 7: Remote Control

    (radio mode only). • Press to perform random play. [DISP] button • When in MP3/WMA/AAC and USB/MTP • Press to select the desired display. modes, press and hold the button for 1 second or longer to perform folder random play. CZ309A...

  • Page 8: Inserting The Battery

    • Moves preset channels up and down. [SCN] button • Press to perform preset scan. • Press and hold the button for 2 seconds or longer to perform auto store. [RDM] button • Press to alternate between TV and VTR. CZ309A...

  • Page 9: Operations

    Select the one you prefer. 1. Turning the [ROTARY] knob clockwise ∗ The factory default setting is “OFF”. increases the volume; turning it 2-1. Select “Z-EHCR”. counterclockwise decreases the volume. ∗ The volume level is from 0 (minimum) to 33 (maximum). CZ309A...

  • Page 10: Adjusting The Treble

    “THROUGH” ↔ “LPF 50” ↔ “LPF 80” ↔ (Adjustment range: +7 to – “LPF 120” BASS<F> ∗ The factory default setting is “THROUGH ”. : The factory default setting is “60”. (Adjustment range: 60/80/100/200) BASS<Q> : The factory default setting is “1”. (Adjustment range: 1/1.25/1.5/2) CZ309A...

  • Page 11: Radio Operations

    2 seconds. 2. Press and hold the [SOUND] button for 1 Manual memory second or longer to turn off the MAGNA 1. Select the desired station with seek tuning or BASS EXTEND effect. manual tuning. CZ309A...

  • Page 12: Cd/Mp3/Wma/Aac Operations

    ∗ When MP3/WMA/AAC files are played, a little no station. “ISR” appears in the display. Press the sound part is caused between tunes. [ISR] button again to return to the previous mode. CZ309A...
  • Page 13 CD type. Notes: • If a CD (12 cm) is left in the ejected position for 15 seconds, the CD is automatically reloaded (Auto reload). • If you force a CD into before auto reloading, this can damage the CD. CZ309A...

  • Page 14: Displaying Cd Titles

    1. Press and hold the [x] button for 1 second or longer. ∗ For MP3/WMA/AAC discs, it takes some time until the start of searching and between tracks. In addition, the playing time may have a margin of error. CZ309A...

  • Page 15: Folder Select

    1. Press and hold the [SCN] button for 1 second or longer to perform folder scan play. ● Repeat play This function allows you to play the current track repeatedly. 1. Press the [RPT] button to perform repeat play. CZ309A...

  • Page 16: Operations Common To Each Mode

    For example: after 1 second, message. Then press and hold the button for 2 seconds or longer to store the message and the message return to default setting. CZ309A...

  • Page 17: Setting The Dimmer Control

    3-1. Press the [w] or [z] button to select “RIGHT” or “LEFT”. • RIGHT: Telephone calls can be heard on the front right speaker connected to this unit. • LEFT: Telephone calls can be heard on the front left speaker connected to this unit. CZ309A...

  • Page 18: Entering Titles

    8. Press the [w] or [z] button to select the can be set. desired character. 9. Repeat steps 6 to 8 to enter up to 8 characters for the title. 10.Press and hold the [ ] button for 2 seconds or longer to store the title into memory. CZ309A...

  • Page 19: Accessories

    For information regarding supported class devices”; operation is not guaranteed portable audio players, consult your nearest with all USB memory devices. Clarion dealer, or visit Clarion's website. ∗ Devices compatible with “USB Mass Storage Class” can be used merely by connecting to CAUTION the host device, without need for special drivers or application software.
  • Page 20 ∗ The order in which tracks are recorded may differ depending on the device connected (the actual playback order may not be the same as that indicated on your computer’s display). CZ309A...

  • Page 21: Ipod Operations

    • For a list of compatible Apple iPod unit with the See “CD/MP3/WMA/AAC Operations” (page 12- this model, please contact your Clarion dealer or 15) for details. www.clarion.com. • “Made for iPod” means that an electronic...
  • Page 22 ∗ When the track name display is showing, umlaut characters. pressing the [x] button will return to the • Unsupported characters will be replaced by currently playing folder name display. asterisks (*). 5. Use the [w] and [z] buttons to select a track within a category. CZ309A...

  • Page 23: Cd Changer Operations

    “ALL RDM” appears in the • If a CD-text CD is not input its disc title or a track display and disc random play starts. title, “NO TITLE” appears in the display. ● To cancel play 1. Press the operating button previously selected. CZ309A...

  • Page 24: Dvd Changer Operations

    The TV tuner has a VTR input terminal to which 1 external device can be connected. Connect a 12 V video cassette player (VCP) or video cassette recorder (VCR) to the TV tuner input terminal. ∗ The factory default setting is “TV”. CZ309A...
  • Page 25 3. Press the [w] or [z] button to set to “ON” or “OFF”. • ON: Sets the diver setting to ON. • OFF: Sets the diver setting to OFF. 4. Press the [DISP] button to return to the previous mode. CZ309A...

  • Page 26: Troubleshooting

    1. Turn down sound volume. Function can also be is operating. restored by turning the power off and on again. (Speaker volume is reduced automatically when the speaker protection circuit operates). 2. If the sound is muted again, consult our service department. CZ309A...
  • Page 27 Can’t insert the The device has been inserted Try reversing the connection direction of the device device. improperly. (usually the brand name surface should be facing left). The connector is broken. Replace with a new device. CZ309A...

  • Page 28: Error Displays

    Do not support the HUB Do not use the HUB devices. HUB ERR devices. If an error display other than the ones described above appears, press the reset button. If the problem persists, turn off the power and consult your store of purchase. CZ309A...

  • Page 29: Specifications

    If you decline an upgrade, you will not be able protect their intellectual property, including to access content that requires the upgrade. copyrights. This device uses WMDRM software to access WMDRM-protected content. If the WMDRM software fails to protect the content, content owners may ask CZ309A...
  • Page 30 Clarion Co., Ltd. PE-3045K All Rights Reserved. Copyright © 2008: Clarion Co., Ltd. 2008/9 280-8732-00...
