AudioControl
3) DQL-8 Audio Wiring
Planning: As you may already have guessed,
there are numerous ways to configure the DQL-8
in your audio system. Spend a little quality time
planning out your system and even sketching
it out on paper. The diagrams on the following
pages are just a few of the system options:

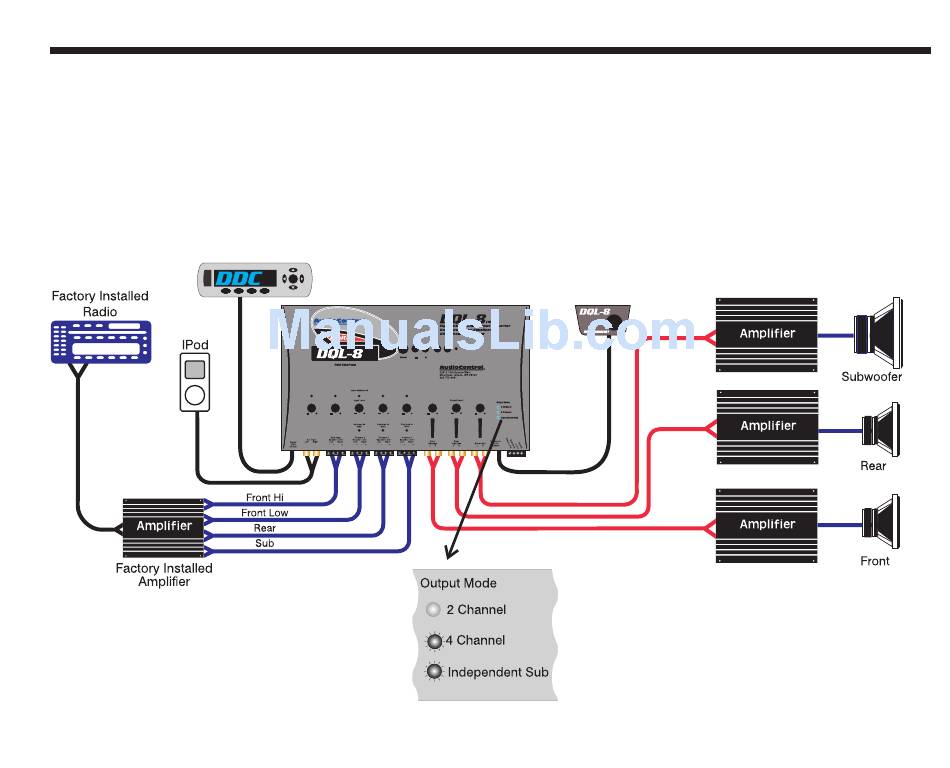

Figure 3: Eight channel inputs with six channel out. Crossed over front inputs summed together.
11
®
Owner's Enjoyment Manual
