Dash Control

Placement And Mounting
The dash control may be mounted under the
dash using its own bracket or through a custom
hole in the dash. It should be within
reach of the driver and in a
spot where the LED is
plainly visible.

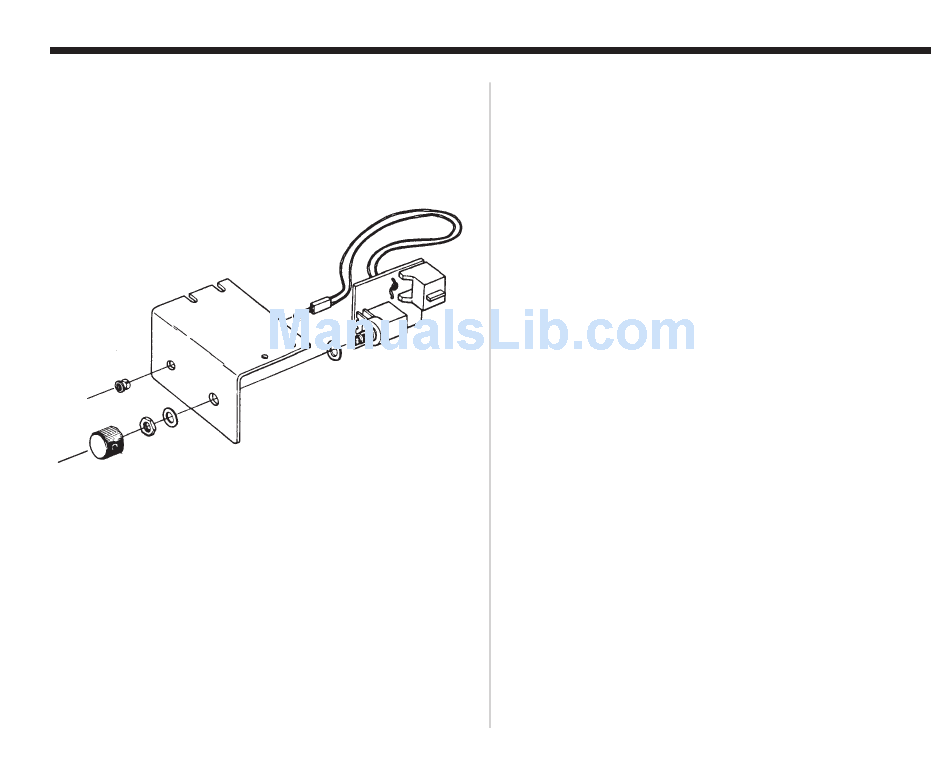

Figure 7: Dash Control Assembly
17
®
Owner's Enjoyment Manual
Dash Bracket Installation
The dash control mounts with two screws,
which attach to the underside of the dashboard.
Slide under the dash and place the dash control
in its mounting position, mark the two mount-
ing holes, drill pilot holes, and secure with two
screws.
Custom Installation
For that custom, finished look, the dash con-
trol can be flush mounted directly on the dash-
board (or anywhere else). We have provided an
extra label to help make this happen. Referenc-
ing Figure 7, disassemble the dash control from
the mounting bracket. Start by pushing the LED
from its holder followed by removing the circuit
board and rotary control from the bracket. Drill
a 9/32 hole in the dashboard for the control
along with a 1/8 hole for the lock tab and a 13/64
hole for the LED holder. Reassemble the dash
control components on the dashboard and ap-
ply the new label over the openings
