B. FOUR.1 Power Wiring
• ENLIGHTENING INFO • Disconnect the negative
terminal of your car's battery before working on any electri-
cal connections. Failure to do so could lead to a dramatic
spark in your life.
Remote Turn-On: Connect a 22 to 18 gauge wire from
the head unit's remote turn-on to the "Remote" connector
on the FOUR.1i.

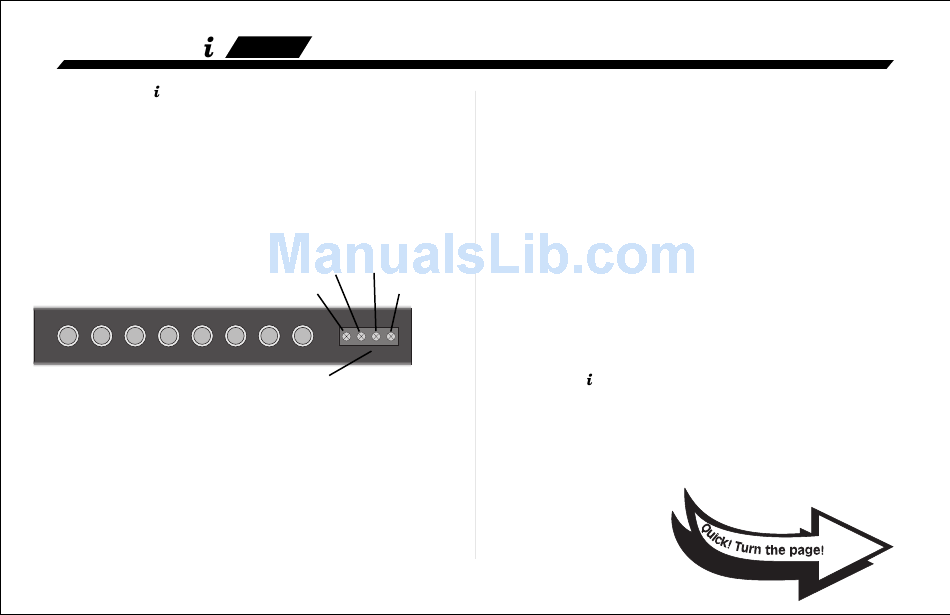

Figure 5: Rear View of the FOUR.1i
Positive(+12V) Connection: Insert an 18 gauge or
larger wire into the connector labeled "Power" on the nifty
connector of your FOUR.1i. Connect it to a good, fused,
constant source of 12 volts (we suggest the battery.)
In-Dash
Power Ground
Remote Illumination
Power Connector
Owner's Enjoyment Manual
Ground Connection: Use the same gauge wire as
you did for the positive connector and run it from the
"Ground" connector on the FOUR.1i to the negative terminal
of the battery, a ground buss, or a verified ground location.
The factory head unit ground is not recommended.
Illumination: The connector labeled "Illumina-
tion" on your FOUR.1i controls the intensity of backlighting
of your FOUR.1i. Connecting it to a switched 12 volt source,
such as the "Remote", allows you to light up the backlighting
of your FOUR.1i. A really cool idea is to connect the illumi-
nation wire to a factory dash light dimmer and have the
ability to dim the backlighting of the FOUR.1i with your
dash lights.
C. FOUR.1 Audio Wiring
Planning: As you may already have guessed, there are
numerous ways to configure the FOUR.1i in your audio
system. Spend a little quality time planning out your system
and even sketching it out on paper if you can. The diagrams
on the following pages
are just a few of the
possibilities.
