Summary of Contents for Compaq Armada 100S

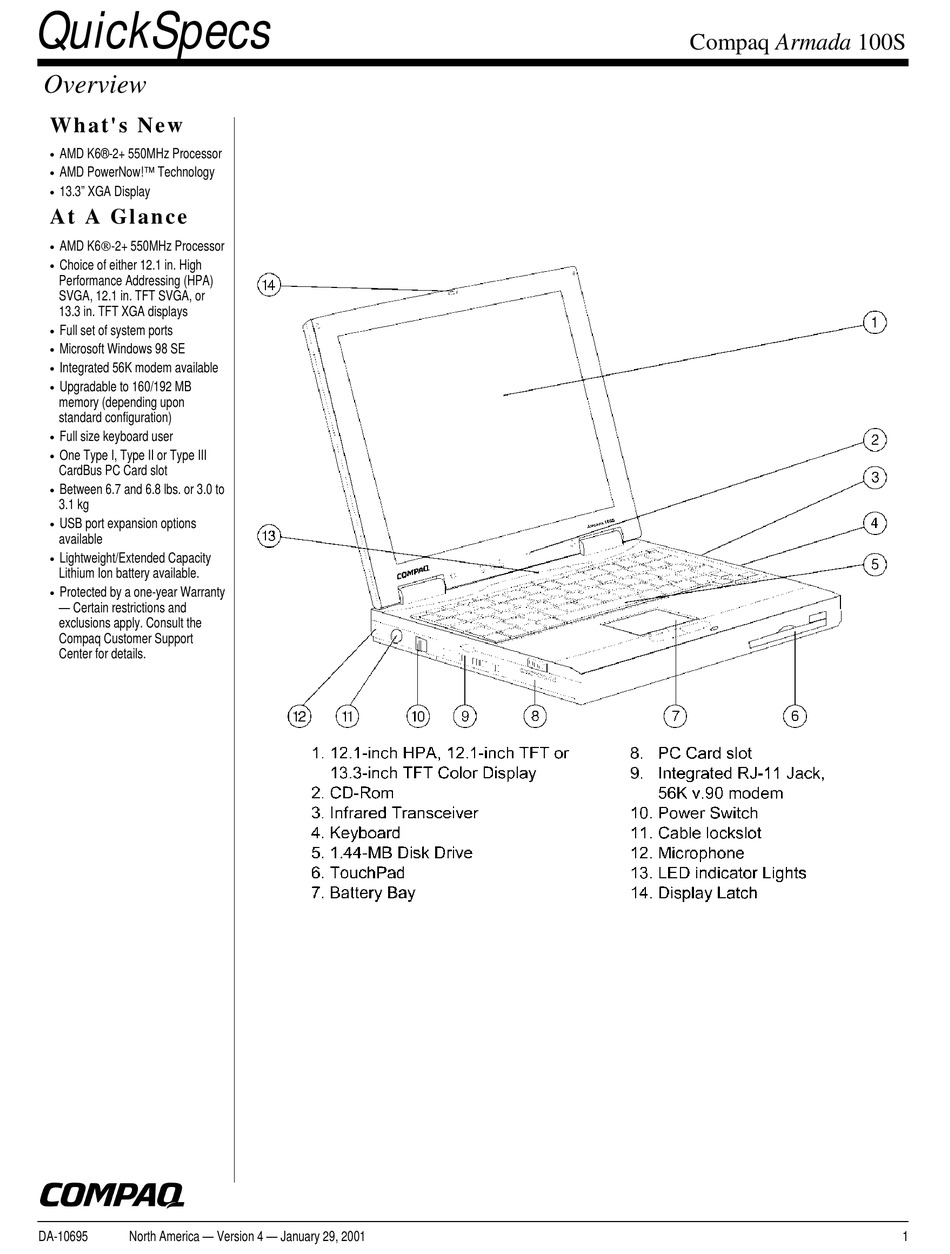

Page 1
QuickSpecs Compaq Armada 100S Overview W h a t ' s N ew AMD K6®-2+ 550MHz Processor AMD PowerNow!™ Technology 13.3” XGA Display A t A G l a n c e AMD K6 -2+ 550MHz Processor Choice of either 12.1 in. High Performance Addressing (HPA) SVGA, 12.1 in.
QuickSpecs Compaq Armada 100S Standard Features P r o c e s s o r Mobile AMD K6 -2+ 550MHz Global Processor Leading-edge Super7™ platform features, including 100-MHz front side bus 3DNow!™ technology with new DSP Instructions AMD PowerNow! Technology...
Page 3
Note: Actual results may vary with individual usage. When tested in standard configuration, using the Ziff-Davis BatteryMark Test version 3.0, the battery life of the Armada 100S will exceed 2.0 hours using “max performance” mode in PowerNow!. Standard configuration at time of announce is considered to be one battery, a 800x600 (High color –...
Page 4
QuickSpecs Compaq Armada 100S Standard Features The Etymology of a Model name: N a m i n g C o n v e n t i o n DA-10695 North America — Version 4 — January 29, 2001...
Page 5
QuickSpecs Compaq Armada 100S Standard Features M o d e l s 13.3-inch color TFT/XGA A 1 S / K 6 2 / 5 5 0 / T 3 X / 5 / D / M / 6 4 /...
Page 6
QuickSpecs Compaq Armada 100S Standard Features M o d e l s (continued) 12.1-inch color HPA SVGA A 1 S / K 6 2 / 5 5 0 / T 2 S / 5 / D / M / 3 2 /...
294266-B21 Compaq Workstation Case 294267-B21 Compaq Global Case 294268-B21 Compaq Executive Case 294269-B21 Compaq Professional N Case 401366-B21 Compaq Professional L Case 401367-B21 For additional Compaq Brand cases, call 1-800-888-5903. DA-10695 North America — Version 4 — January 29, 2001...
Page 9
64 MB 32 MB 128 MB 64 MB 64 MB 192 MB 64 MB 128 MB Following are memory options available from Compaq: 32-MB Memory Upgrade 179863-B21 64-MB Memory Upgrade 179864-B21 128-MB Memory Upgrade 179865-B21 DA-10695 North America — Version 4 — January 29, 2001...
Page 10
QuickSpecs Compaq Armada 100S Storage CD-ROM R I V E U P P O R T Quantity Drive Bay System Drive Support Supported Supported Media 24X CD-ROM Up to 1 Fixed 1.44-MB Diskette Drive Up to 1 Fixed Hard Drives...
QuickSpecs Compaq Armada 100S Technical Specifications Dimensions (HxWxD) System Unit 1.6 x 11.7 x 9.4 in/4.1 x 29.7 x 23.9 cm Weight AMD K6-2+ 550 MHz 6.6 lbs/3 kg to 6.8 lbs/3.1 kg Stand-Alone Power Nominal Operating Voltage 14.8 VDC...
Page 12
QuickSpecs Compaq Armada 100S Technical Specifications 12.1-Inch Color HPA SVGA Dimensions (HxW) 8.17 x 10.83 in/20.25 x 27.5 cm Display Diagonal Size 12.1 in/30.74 cm Mounting Internal Number of Colors Contrast Ratio 40:1 Brightness 70+ nit Pixel Resolution Pitch 0.1021 x 0.306 mm...
QuickSpecs Compaq Armada 100S Technical Specifications 13.3-Inch Color TFT XGA Dimensions (HxW) 7.83 x 10.83 in/19.9 x 27.5 cm Display Diagonal Size 13.3 in/33.78 cm Mounting Internal Number of Colors 262K Contrast Ratio 200:1 Brightness 140+ nit Pixel Resolution Pitch 0.264 x 0.264 mm...
QuickSpecs Compaq Armada 100S Technical Specifications External AC Adapter Weight 0.45 lb/0.21 kg Power Supply (Input) Operating Voltage 100 to 240 VAC RMS Nominal Operating Current 1.5 A RMS Operating Frequency Range 50 to 60 Hz AC Nominal Maximum Transient...
