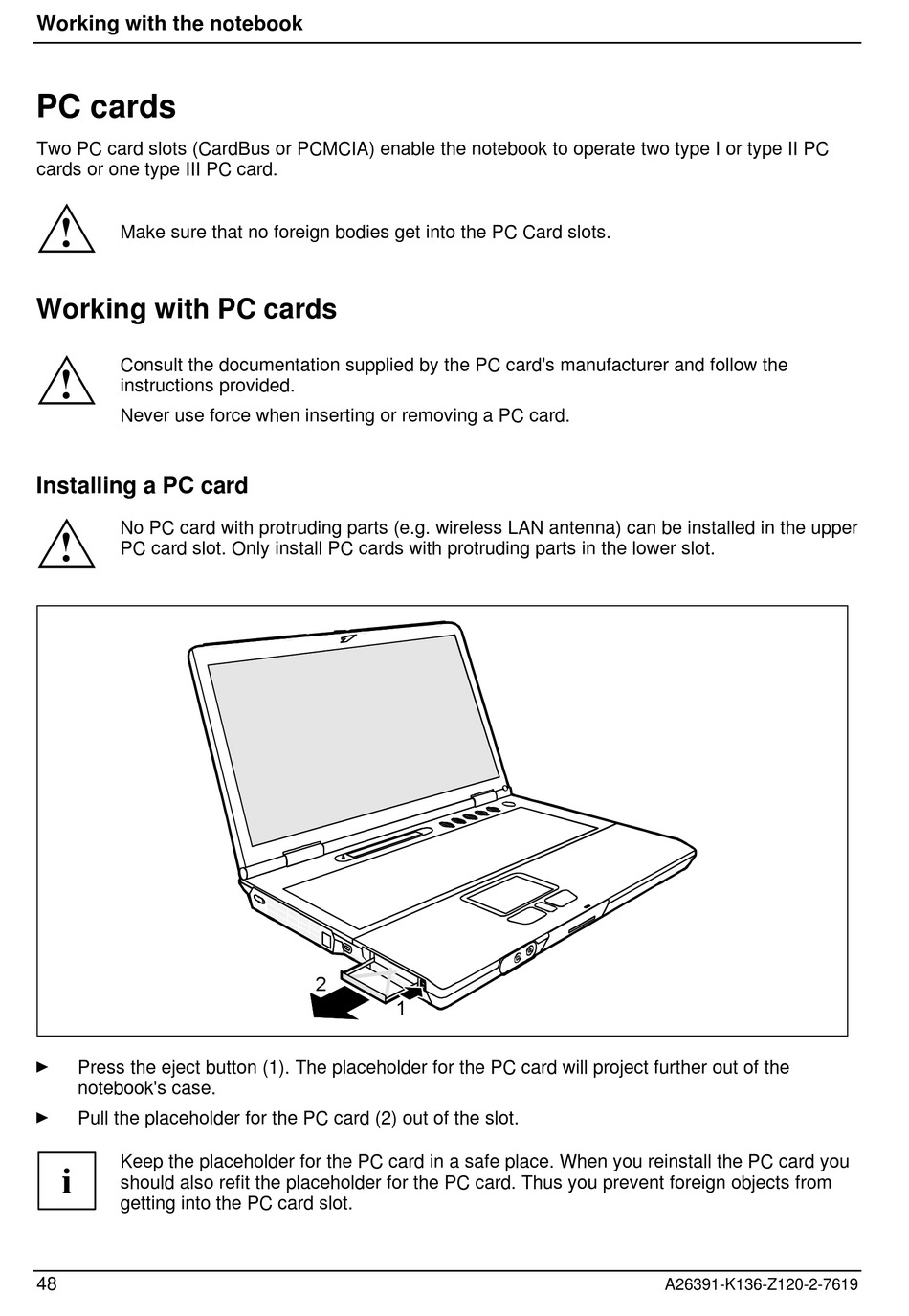

Working with the notebook

PC cards

Two PC card slots (CardBus or PCMCIA) enable the notebook to operate two type I or type II PC
cards or one type III PC card.
!
Make sure that no foreign bodies get into the PC Card slots.

Working with PC cards

Consult the documentation supplied by the PC card's manufacturer and follow the
!
instructions provided.
Never use force when inserting or removing a PC card.

Installing a PC card

No PC card with protruding parts (e.g. wireless LAN antenna) can be installed in the upper
!
PC card slot. Only install PC cards with protruding parts in the lower slot.
Ê
Press the eject button (1). The placeholder for the PC card will project further out of the
notebook's case.
Ê
Pull the placeholder for the PC card (2) out of the slot.
Keep the placeholder for the PC card in a safe place. When you reinstall the PC card you
i
should also refit the placeholder for the PC card. Thus you prevent foreign objects from
getting into the PC card slot.
48
2
1
A26391-K136-Z120-2-7619
