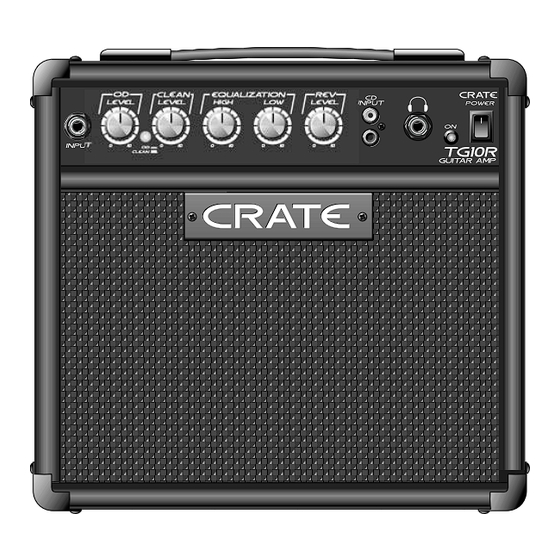

TG10R
Guitar Amplifier
TG10R TECHNICAL SPECIFICATIONS:
Output Power Rating
15 watts
THD
0.9% 20Hz - 20kHz
Signal To Noise
-58dB
Input Signal Level
50mV
Input Impedance
600 ohms
Speaker
8" 8 ohm 30 watt
Input Power Requirements
120 VAC, 60Hz, 30VA
230VAC, 50Hz, 30VA
Cabinet Size and Weight
12" H x 12-1/2" W x 7" D, 16.5 lbs.
The TG10R is covered with a durable Tolex material: wipe it clean with a lint-free cloth.
Never spray cleaning agents onto the cabinet. Avoid abrasive cleansers which would damage the finish.
Crate continually develops new products, as well as improves existing ones. For this reason, the specifications
and information in this manual are subject to change without notice.
Block Diagram:
EQUALIZATION
INPUT
CLEAN
LEVEL
OD/
CLEAN
HIGH
LOW
OD
LEVEL
AC POWER
POWER SUPPLY
POWER SW
@2004 SLM Electronics, a division of St. Louis Music, Inc • 1400 Ferguson Avenue • St. Louis, MO 63133
POWER
PREAMP
AMP
REV
LEVEL
CD
INPUT
B+
B–
POWER LED
www.crateamps.com
18-950-02 • 05/17/04
SPEAKER
HEADPHONES
TG10R
Guitar Amplifier
User's Guide
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Crate TG10R
Summary of Contents for Crate TG10R
- Page 1 12” H x 12-1/2” W x 7” D, 16.5 lbs. The TG10R is covered with a durable Tolex material: wipe it clean with a lint-free cloth. Never spray cleaning agents onto the cabinet. Avoid abrasive cleansers which would damage the finish.
- Page 2 Guitar Amplifier Congratulations and thank you for choosing the Crate TG10R Guitar Amplifier. This rugged amplifier provides you with serious clean and distorted sounds and fea- tures two bands of equalization, reverb, CD Input jacks, and a jack for headphones.
