Audio Control EX concert series Owner's Manual page 8

Concert Series Owner's Manual

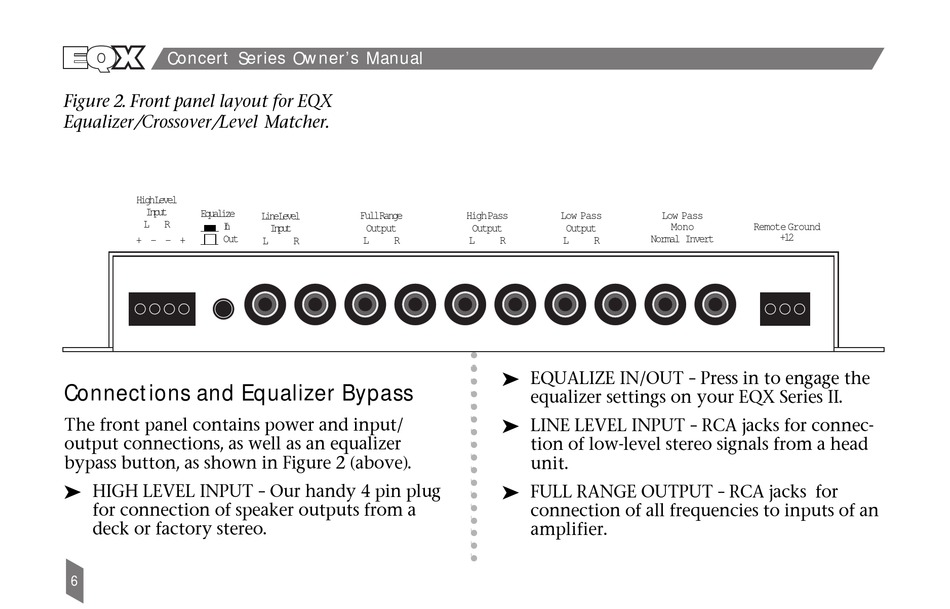

Figure 2. Front panel layout for EQX
Equalizer/Crossover/Level Matcher.
High Level
I n p u t
E q u a l i z e
L R
I n
Out
- -
+ – – + + + Out
Connections and Equalizer Bypass
The front panel contains power and input/
output connections, as well as an equalizer
bypass button, as shown in Figure 2 (above).
HIGH LEVEL INPUT – Our handy 4 pin plug
for connection of speaker outputs from a
deck or factory stereo.
6
L i n e L e v e l Full Range
I n p u t Output
L L R R L L R R
High Pass Low Pass
Output Output
L L R R L L R R
EQUALIZE IN/OUT – Press in to engage the
equalizer settings on your EQX Series II.
LINE LEVEL INPUT – RCA jacks for connec-
tion of low-level stereo signals from a head
unit.
FULL RANGE OUTPUT – RCA jacks for
connection of all frequencies to inputs of an
amplifier.
Low Pass
Mono Remote Ground
+12
Normal Invert
Normal Invert +12
