Making Your Own Crossover
and Programmable Frequency
Match Modules
A crossover network is a circuit that divides the
bandwidth of an audio signal into two or more
frequency bands, as shown here.
High Sounds
Crossover
Incorporated
Low Sounds

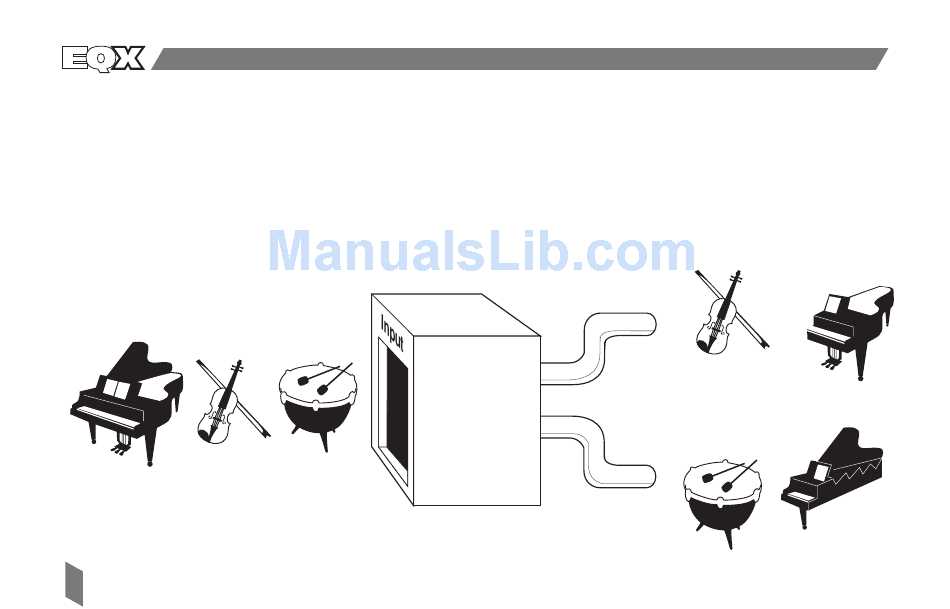

Figure 7. Here we see Mr. Crossover busy dividing
music into high and low bands.
