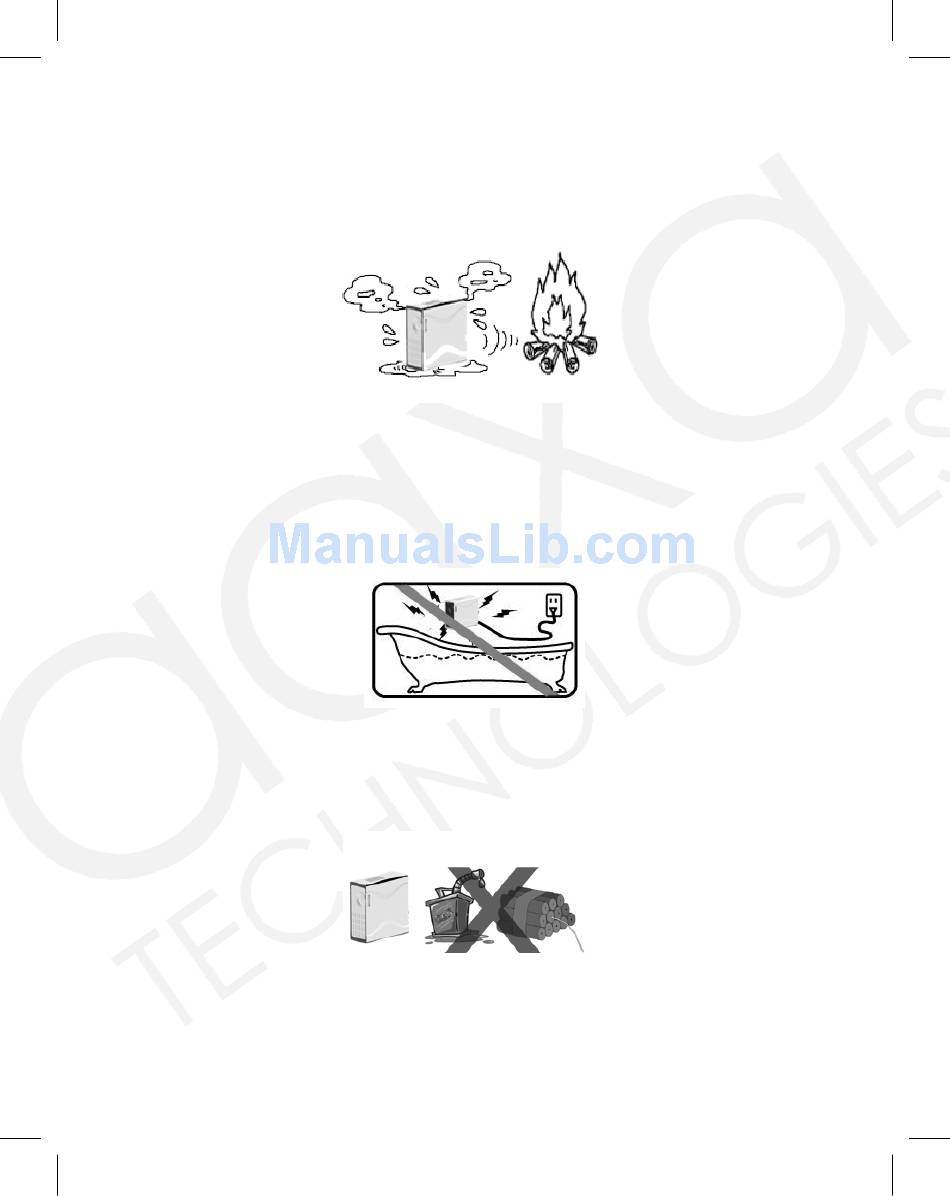

WARNINGS
*Do not operate the Projector in direct sunlight or near heat sources such as
heaters, fires, and stoves as this may cause a fire hazard.
*Do not operate the projector close to sources of steam or oil such as a
humidifier as this may cause electric shock.
*Do not operate the projector near water such as by the sink or bathtub as this
may cause electric shock.
*Do not block or restrict airflow from ventilation holes as this may cause the
Projector to overheat.
*Do not place inflammable materials beside the projector as this may cause a fire
hazard.
*Do not drop the projector or allow heavy impacts or shock as this will damge the
projector.
1
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M1 Standard and is the answer not in the manual?

Questions and answers

Related Manuals for AAXA Technologies M1 Standard

Summary of Contents for AAXA Technologies M1 Standard

  • Page 1 WARNINGS *Do not operate the Projector in direct sunlight or near heat sources such as heaters, fires, and stoves as this may cause a fire hazard. *Do not operate the projector close to sources of steam or oil such as a humidifier as this may cause electric shock.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Page Warnings Table of Contents Overview Remote Control Functions Packing List General Operation a. Startup and control b. Shutdown c. Positioning / Throw Distance / Focus 6-7 d. Connecting to A/V Source e. Connecting to Computer (USB – VGA Input) f.

  • Page 3: Overview

    OVERVIEW Zoom Adjust Projection Lens Mini USB Input Power Button SD Card Slot A/V Input Power Supply Headphone Output Receptacle...

  • Page 4: Remote Control Functions

    REMOTE CONTROL FUNCTIONS...

  • Page 5: Packing List

    PACKING LIST...

  • Page 6: General Operation

    GENERAL OPERATION Startup and Shutdown – To startup, connect the GENERAL OPERATION power supply or external battery to the rear power receptacle. Press and hold the power button for 3 Startup and Shutdown – To startup, connect the power supply or external battery to the rear power receptacle.
  • Page 7 Focus Adjustment / Throw Distance – The focus can be adjusted by turning Focus Adjustment / Throw Distance – The focus can be adjusted by turning the wheel located at the front of the projector. The Projector is capable of the the wheel located at the front of the projector.

  • Page 8: Connecting To A/V Source

    USB-Display is not supported on the “standard” model of the M1 projector. Third party software is available to enable the USB Display feature. However AAXA Technologies does not support the USB Display feature. Please visit our website for more information at www.aaxatech.com.

  • Page 9: Accessing Sd Card

    CONNECTING TO USB DISPLAY USB-Display is not supported on the “standard” model of the M1 projector. Third party software is available to enable the USB Display feature. However AAXA Technologies does not support the USB Display feature. Please visit our website for more information at www.aaxatech.com.

  • Page 10: Accessing Flash Memory

    Loading Files into Flash Memory Files can be copied into the projectors onboard 1GB flash memory through the USB file transfer mode. Enter the USB File transfer mode by selecting the “Storage” icon in the main menu. The projector will enter USB Storage mode. Connect one ewing Photos –...
  • Page 11 Listening to Music – To listen to music click on the “Music” icon in the submenu. Select the music file from the list. To adjust volume use the volume buttons. To skip to another track press the right or left buttons on the remote control, or access the control menu by pressing the “menu”...

  • Page 12: Settings

    SETTINGS MENU The Settings Menu can be accessed by clicking on the “Settings” icon in the main menu. Slide Show Settings – The slide show settings allows the user to change the speed, Slide Show Settings – The slide show settings allows the user to change transition style, and display mode of the slide show.
  • Page 13 Language – Supported languages include English, French, Spanish, German, and Italian Language – Supported languages include English, French, Spanish, German, and Italian LCD Adjusment – the LCD adjustment changes the display output of the projector. Adjustable parameters include Brightness, Contrast, and Color and can be adjusted LCD Adjusment –...

  • Page 14: Troubleshooting

    TROUBLESHOOTING THE PROJECTOR DOES NOT TURN ON Possible Causes Solution Check to ensure the power outlet or battery There is no power source is good. Check the power adapter to ensure a proper connection with the wall outlet as well as the Projector. The projector is in the shut-down cooling cycle Wait until the Projector has fully cooled to restart...

  • Page 15: Specifications

    SPECIFICATIONS PROJECTION SYSTEM Native Resolution: SVGA (800x600) Brightness: 66 ANSI-Lumens Contrast Ratio: 1000:1 Noise: <20 dBA Projection Lens: Manual Focus Projection Image: Available Size 9 ~ 100 inch Lamp: Single Chip White LED 15,000 Hours Projection Angle: 33.6 GENERAL SPECIFICATIONS Audio Output: Onboard Dual 1w speaker Stereo speaker/headphone mini-jack...
  • Page 16 SUPPORTED FORMATS AVI, RMVB, RM, MP4, MOV, VOB, DAT, MPG, MPEG, 3GP CODECS SUPPORTED *MPEG-4: DivX-4, DivX-5, DivX-6, XviD, H.263+ *RV: RealVideo-3, RealVideo-4 *MPEG2/1 *MP3: *RA: Cooker/AAC *LC AAC,HE AAC,MP2,PCM,AC3 *AVI (MPEG-4/MJPEG + MP3/LC AAC/HE AAC/MP2/PCM/AC3) *MP4 (MPEG-4 + MP3/LC AAC/HE AAC/MP2/PCM/AC3) Max.
