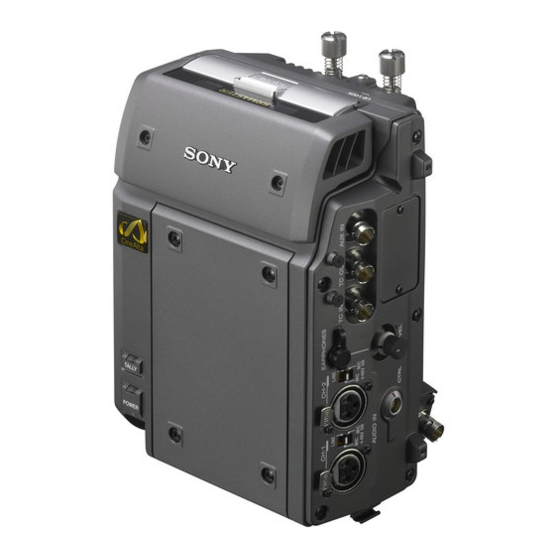

Sony SR-R4 Product Manual

Sony SR-R4 Product Manual

Message decoder
Hide thumbs Also See for SR-R4:

Advertisement

Quick Links

Download this manual See also: Operating Manual

Advertisement

loading

Related Manuals for Sony SR-R4

Summary of Contents for Sony SR-R4

  • Page 6 SY NVRAM ERROR Detected a FRAME (HOURS METER and TC related information) checksum error If rebooting doesn’t correct the problem, the SR-R4 should be serviced...
  • Page 7 SY-AU I/F ERROR Detected a communication error between the audio circuit and system CPU If rebooting doesn’t correct the problem, the SR-R4 should be serviced...
  • Page 8 SY-CP I/F ERROR Detected a communication error between the system CPU and CP CPU Check the cable between the Control Panel and the SR-R4...
  • Page 9 FAN STOP Detected a cooling fan failure If rebooting doesn’t correct the problem, the SR-R4 should be serviced...
  • Page 10 DC IN OVERLOAD Detected an over-current condition in the power supply input stage Reduce the amount of power the F65 is getting from the power supply...
  • Page 11 DC VOLTAGE DOWN The power supply voltage dropped below the rated value Increase the amount of power the F65 is getting from the power supply...
  • Page 12 ILLEGAL SHUTDOWN The power was previously turned off without proper un-mounting (i.e. ejecting) of the camera card Reboot the SR-R4...
  • Page 13 BOARD TEMP NG The temperature within the SR-R4 exceeds the rated value The SR-R4 needs to cool down...
  • Page 14 DUPLICATE FILES Detected a file name duplication Change the name of either one of the files with the same name...
  • Page 15 MEDIA IF ERROR Cannot communicate with the SRMemory Card Try reinserting the SRMemory Card...
  • Page 16 UNMOUNT ERROR An interface error occurred when ejecting the SRMemory Card Reboot the SR-R4...
  • Page 17 MOUNT ERROR An I/F error occurred when connecting the SRMemory Card the SR-R4 Re-insert the SRMemory Card...
  • Page 18 FILE SYSTEM ERR Detected an SRMemory card file system error Try a different SRMemory Card...
  • Page 19 SALVAGE PROCESS Cannot salvage the SRMemory Card Try to salvage the SRMemory Card on the SR-D1, SR-PC4 or SRPC-5...
  • Page 20 MEDIA FORMAT Cannot format the SRMemory Card file system Try to format the SRMemory Card on the SR-D1, the SR-PC4 or SRPC-5...
  • Page 21 AV WRITE ERROR Detected an audio/video recording error due to an interface or memory problem Try a different SRMemory Card...
  • Page 22 AV READ ERROR Detected an audio/video playback error due to an interface or memory problem Try a different SRMemory Card...
  • Page 23 WRITE FAIL OW Detected an access error when recording an AV file to the SRMemory Card Power may have been lost before the recording was completed...
  • Page 24 CANNOT REC MEDIA Detected an error in the unrecorded areas of the SRMemory Card Try a different SRMemory Card...
  • Page 25 WP OFF TO MOUNT The write-protect switch on the SRMemory Card is set to WP Turn off the Write Protect Switch on the SRMemory Card...
  • Page 26 CAM NO INPUT There is no optical input from the F65 or the input is below required levels Reseat the SR-R4 on the back of the F65...
  • Page 27 PB FREQ MISMATCH There is a mismatch between the configured system frequency and the frequency of the file Change the system frequency of the SR-R4 to match the file on the SRMemory Card...
  • Page 28 PB FMT MISMATCH There is a mismatch between the configured system format and the format of the file Change the system format of the SR-R4 to match the file on the SRMemory Card...
  • Page 29 REC INHIBIT MODE Unit is in a non-record mode or SYSTEM settings are being configured Take the SR-R4 out of record-inhibit mode...
  • Page 30 TEMPERATURE LOW The temperature within the unit has fallen below the rated value Warm up the SR-R4...
  • Page 31 CP MISSING Cannot detect a signal from the Control Panel Attach the Control Panel...
  • Page 32 DC VOLTAGE LOW Detected a drop in the supply voltage Make sure the F65’s power supply is outputting the proper voltage...
  • Page 33 BOARD TEMP HIGH The temperature inside the SR-R4 is too high Cool down the SR-R4...
  • Page 34 MEDIA FULL Cannot record because the SRMemory Card is full Use a different SRMemory Card that has available capacity...
  • Page 35 TOO MANY FILES The number of files on the SRMemory Card exceeds the maximum value Use a different SRMemory Card with fewer files on it...
  • Page 36 COND3 BAD Cannot record due to insufficient bad memory swap area on the SRMemory Card Use a different SRMemory Card...
  • Page 37 LID OPEN The SRMemory Card insertion slot lid is open Close the lid on the SR-R4...
  • Page 38 MEDIA REMOVED Detected an SRMemory Card connection failure Re-insert the SRMemory Card...
  • Page 39 AUDIO PLL UNLOCK The audio clock is not locked to the reference video signal Reboot the SR-R4...
  • Page 40 LOST LOCK Detected a loss of lock synchronization during recording or playback Reboot the SR-R4...
  • Page 41 NO AUX INPUT No input on the AUX IN connector Connect a digital audio signal to the AUX IN connector of the SR-R4...
  • Page 42 AUX IN UNLOCK AUX IN is selected in the AUDIO menu but the AUX INPUT signal and the video signal are not locked Ensure the reference for the F65 and the audio source are the same...
  • Page 43 ENC WARNING Recording Malfunction (encoder error) Reboot the SR-R4...
  • Page 44 DEC WARNING Cannot playback data from the SRMemory Card (decoder error) Reboot the SR-R4...
  • Page 45 WP SW ON The SRMemory Card write- protect switch is set to WP Slide the WP switch so that is not in the WP position...
  • Page 46 FS LOCKED The SRMemory Card is set to FS LOCK in the SYSTEM menu Change the FS LOCK setting in the SYSTEM menu to UNLOCK...
  • Page 47 CONDITION NG Detected an SRMemory Card access error Try a different SRMemory Card...
  • Page 48 PB NOT READY Not ready for playback Try playing back the file again...
  • Page 49 CAM ERROR An error occurred in the Check the settings on the F65’s display...
  • Page 50 CAM WARNING A warning occurred in the Check the settings on the F65’s display...
  • Page 51 CAM ID MISMATCH The CAM ID setting in the FILE NAME menu and the card information do not match Put this SRMemory Card back into the F65 it came from or just start recording...
  • Page 52 CAM FMT MISMATCH The camera and the format settings do not match Change the settings of the SR-R4 to match the...
  • Page 53 CAM VOL LOW The camera supply voltage is too low Increase the power input to the F65...
  • Page 54 CAM MISSING Cannot detect a signal from the camera Reseat the SR-R4 on the...
  • Page 55 CAM OPT CARE The received optical level from the CAMERA connector is low Clean the optical connector on the SR-R4...
  • Page 56 CAM OPT NG The received optical level from the CAMERA connector is extremely low Clean the optical connector on the SR-R4...
  • Page 57 CAM CRC NG Detected a CRC error in the received optical signal data from the CAMERA connector Clean the optical connector on the SR-R4...
  • Page 58 REC RATE OVER The SRMemory Card cannot record in the current format Use a faster speed SRMemory Card, such as the S2.5 or the S5.5 speed SRMemory Cards...
  • Page 59 CAM UNLOCK The input video signal from the CAMERA connector is not locked with the SR-R4 Reseat the SR-R4 on the...
