GE GTR10GBEWW Dimensions And Installation Information

GTR10GBE
GE 9.9 Cu. Ft. Top-Freezer Refrigerator
®

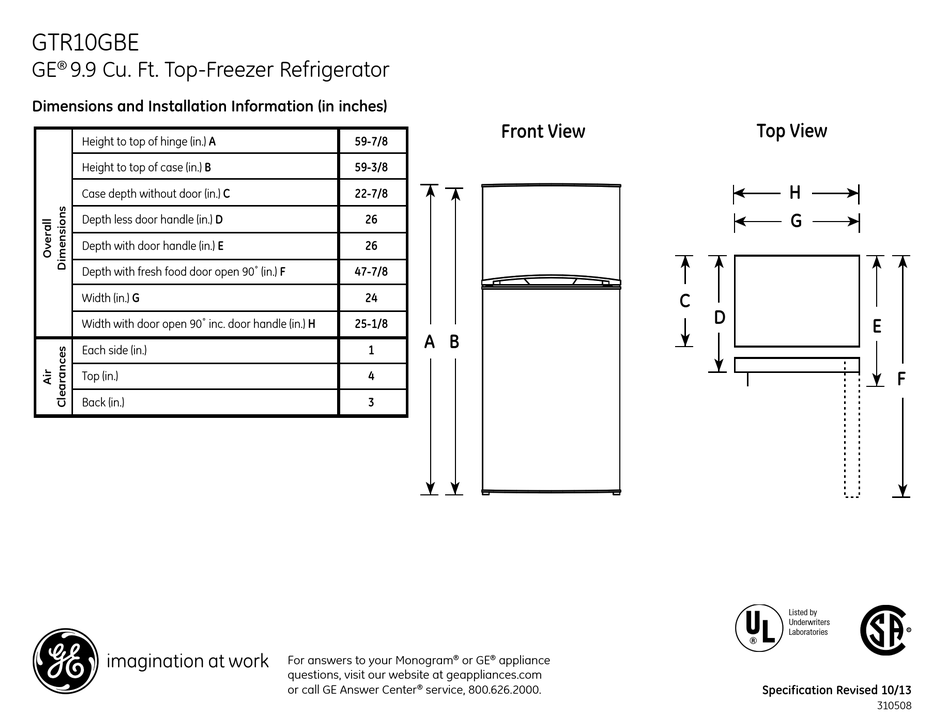

Dimensions and Installation Information (in inches)
Height to top of hinge (in.) A
Height to top of case (in.) B
Case depth without door (in.) C
Depth less door handle (in.) D
Depth with door handle (in.) E
Depth with fresh food door open 90˚ (in.) F
Width (in.) G
Width with door open 90˚ inc. door handle (in.) H
Each side (in.)
Top (in.)
Back (in.)
59-7/8
59-3/8
22-7/8
26
26
47-7/8
24
25-1/8
A B
1
4
3
For answers to your Monogram or GE
®
questions, visit our website at geappliances.com
or call GE Answer Center service, 800.626.2000.
®

Front View

Height to top of hinge (in.) A
Height to top of case (in.) B
Case depth without door (in.) C
appliance
®
Depth less door handle (in.) D
Depth with door handle (in.) E
Depth with fresh food door open 90˚ (in.) F
Width (in.) G

Top View

H
G
C
D
59-7/8
Listed by
59-3/8
Underwriters
Laboratories
22-7/8
26
26
Specification Revised 10/13
47-7/8
24
E
F
310508
