PARTS LIST
REF.NO.
PART NO.
or
405 014 4509 TR 2SC2412K-R
Q4004
405 014 4509 TR 2SC2412K-R
or
405 011 1006 TR 2SC1623-L6
or
405 146 2206 TR KTC3875-GR
or
405 146 2107 TR KTC3875-Y
Q4005
405 146 2206 TR KTC3875-GR
or
405 146 2107 TR KTC3875-Y
or
405 011 1006 TR 2SC1623-L6
or
405 014 4509 TR 2SC2412K-R
Q4006
405 021 2307 TR 2SD1048-X6
or
405 021 2406 TR 2SD1048-X7
Q4007
405 157 6507 TR XP151A13A0M
Q4008
405 157 6507 TR XP151A13A0M
Q4009
405 005 5508 TR 2SA812-M6
or
405 002 0308 TR 2SA1037K-R
or
405 134 5905 TR 2SA1037AK-R
or
405 146 1704 TR KTA1504-Y
or
405 146 9700 TR KTA1504-GR
Q4010
405 141 4403 TR DTC124EKA
or
405 149 6109 TR KRC103S
Q4011
405 141 4403 TR DTC124EKA
or
405 149 6109 TR KRC103S

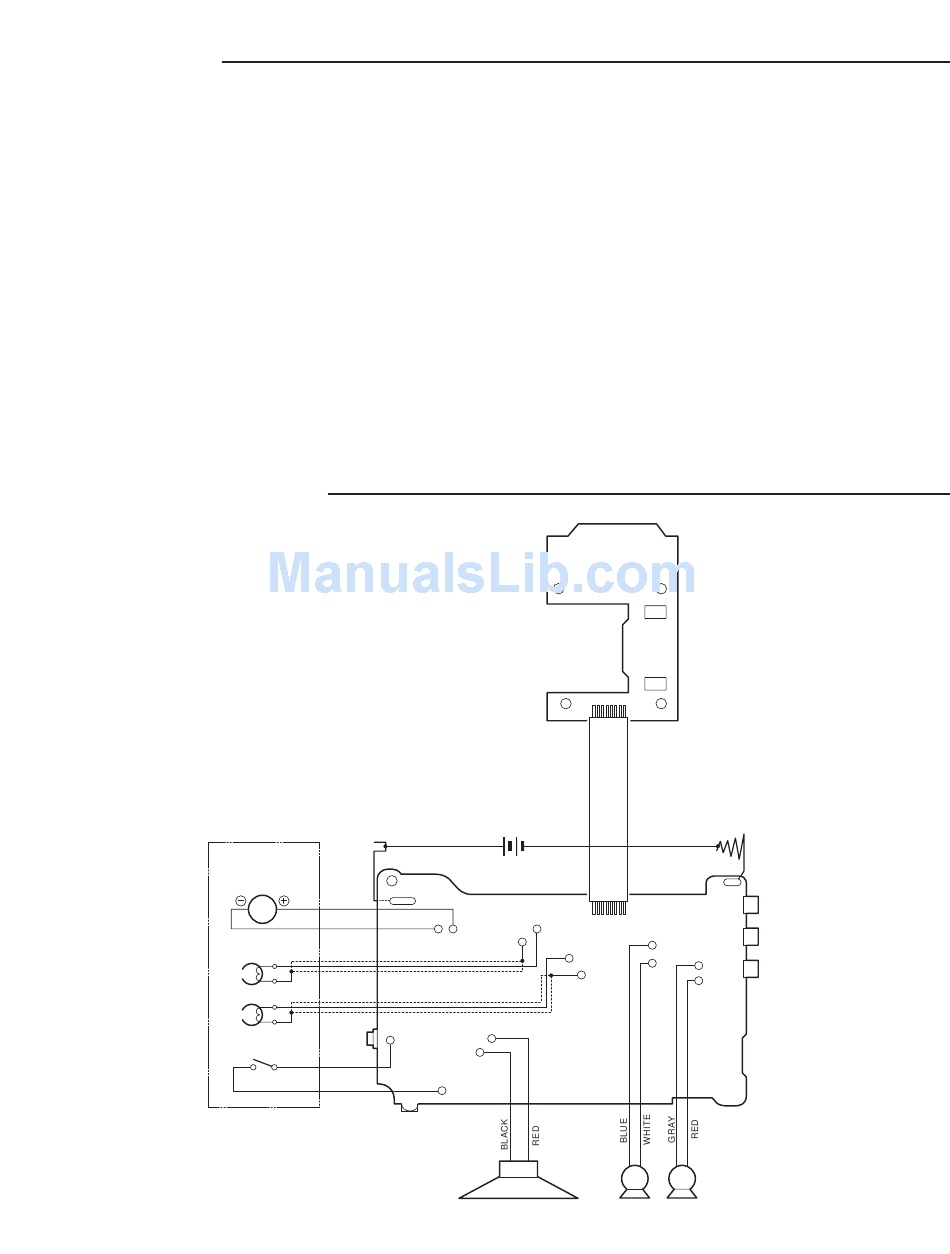

WIRING CONNECTION
TAPE DECK
MECHANIZUM
M
HEAD A
HEAD B
PLAY SWITCH
This is a basic wiring connection.
DESCRIPTION
BATT +
RED
BLACK
- +
MOTOR
CN403
P.SW
REMOTE
BLACK
SP -
P.SW
RED
CN491
EXT. DC 3V
REF.NO.
PART NO.
Q4902
405 064 6300 TR 2SB1295-6
or
405 064 6409 TR 2SB1295-7
Q4903
405 149 6109 TR KRC103S
or
405 141 4403 TR DTC124EKA
S4001
645 059 8012 SWITCH,PUSH,R/P SW
or
620 199 9839 SWITCH,PUSH,4-2,R/P SW
S4002
645 057 0056 SWITCH,SLIDE 2P-2T,2.4/4.8 SW
S4003
645 026 2630 SWITCH,SLIDE 2P-3T,PLAYSPEEDSW
S4004
645 057 2470 SWITCH,SLIDE,PAUSESW
S4005
645 026 2623 SWITCH,SLIDE 1P-2T,VASSW
VR401
645 057 0032 VR,ROTARY 10KBX2,VOL
VR471
645 026 5495 VR,SEMI,1K S,SPEED VR
TAPE MECHANISM
REF.NO.
PART NO.
614 325 8896 ASSY,MECHA,TM-2050CTN-SH
TM1
645 027 2318 HEAD,ERASE
TM2
645 059 8296 HEAD,R/P
TM3
645 027 2561 ASSY,PINCH ROLLER
TM4
645 059 7305 ASSY,MOTOR
TM5
645 027 2745 MAIN BELT
SWITCH P.W.B
BATTERY
DC 3V
HEAD-A +
HEAD-A -
MIC2-GND
HEAD-B +
MIC1
-GND
HEAD-B -
SP +
AMPLIFIER
P.W.B
SPEAKER
MIC 2
- 4 -
DESCRIPTION
DESCRIPTION
BATT -
HP
CN405
MIC 2
CN402
MIC-1 +
MIC 1
CN401
MIC-2 +
MIC 1
