Hitachi DS18DL Parts List
Hitachi cordless driver drill parts list
Hide thumbs
Also See for DS18DL:
- User manual (88 pages) ,
- Handling instructions manual (99 pages) ,
- Handling instructions manual (82 pages)
Advertisement
Quick Links
Download this manual
See also:
User Manual
Hitachi Power Tools

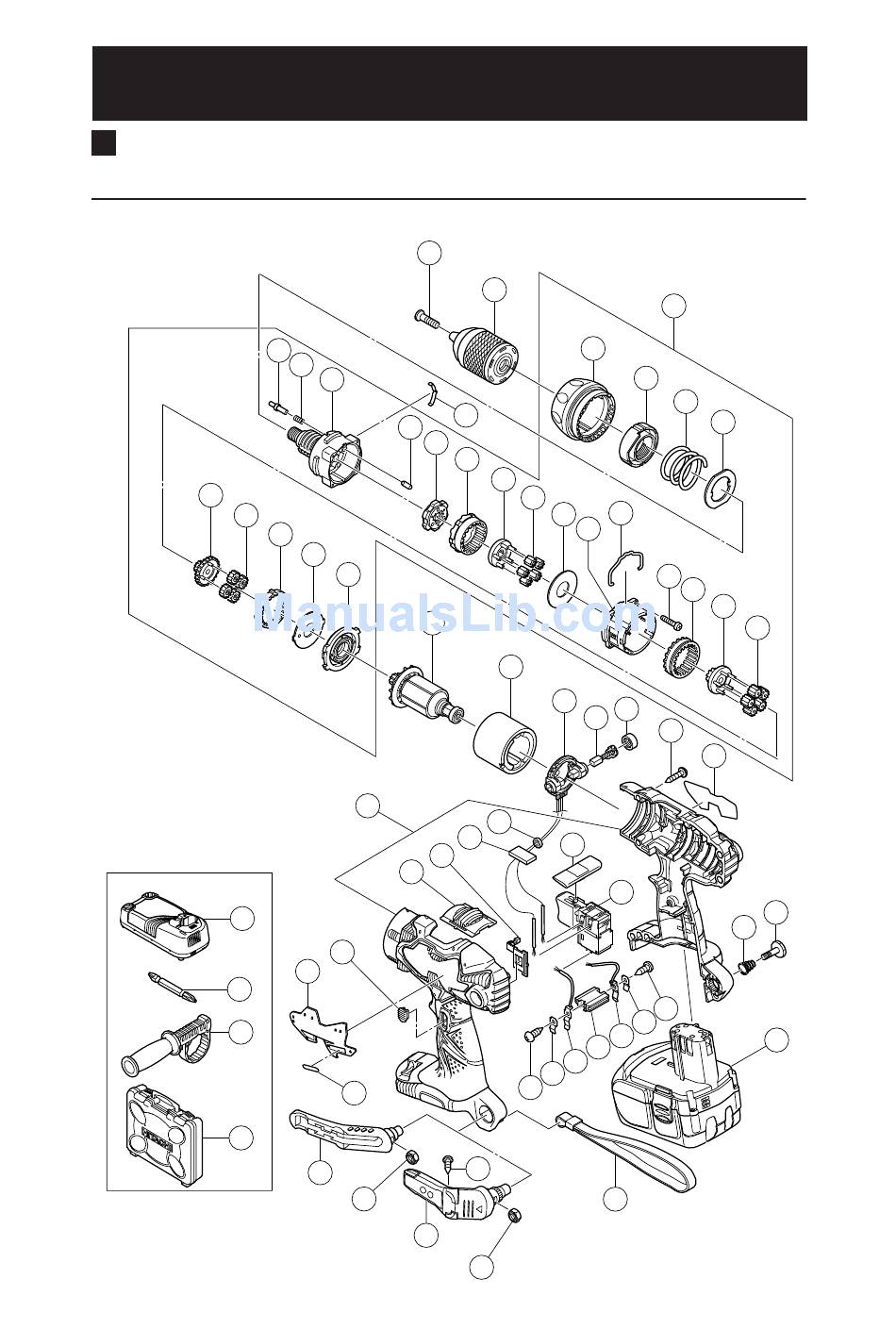

ELECTRIC TOOL PARTS LIST
CORDLESS DRIVER DRILL
Model DS 18DL
24
25
501
502
503
504
1
8
9
10
12
13
26
27
28
29
36
40
39
38
37
45
51
52
53
2
4
11
14
15
16
19
17
18
30
31
33
32
42
41
43
44
50
49
48
47
46
54
55
52
LIST NO. G851
2006
7
5
•
•
(E1)
3
5
6
7
20
21
22
23
34
35
57
56
46
47
58
Advertisement
Related Manuals for Hitachi DS18DL
Summary of Contents for Hitachi DS18DL
- Page 1 Hitachi Power Tools LIST NO. G851 ELECTRIC TOOL PARTS LIST CORDLESS DRIVER DRILL 2006 • • Model DS 18DL (E1)
- Page 2 LEVER (B) 326-493 SUPPORT (D) EXCEPT FOR AUS, USA, CAN 323-229 FERRITE CORE EXCEPT FOR AUS, USA, CAN 322-997 PUSHING BUTTON 322-994 DC-SPEED CONTROL SWITCH HITACHI LABEL 958-715 TAPPING SCREW D4X10 996-118 HOLDER SPRING 323-003 TERMINAL 320-997 TERMINAL PIECE 322-995 TERMINAL 320-287 HOOK ASS’Y...
- Page 3 PARTS DS 18DL ITEM CODE NO. REMARKS DESCRIPTION USED 320-288 V-LOCK NUT M5 321-918 HOOK ASS’Y (W/LIGHT) INCLUD. 52, 54 FOR USA, CAN, GBR, FRG 321-672 TAPPING SCREW D2X6 FOR USA, CAN, GBR, FRG 306-952 STRAP (BLACK) EXCEPT FOR USA, CAN 319-926 HOOK SPRING 320-881...
-
