Hitachi G10SR3 Parts List
Hitachi disc grinder parts list
Hide thumbs
Also See for G10SR3:
- Handling instructions manual (61 pages) ,
- User manual (36 pages) ,
- Technical data and service manual (30 pages)
Advertisement
Quick Links
Hitachi Power Tools

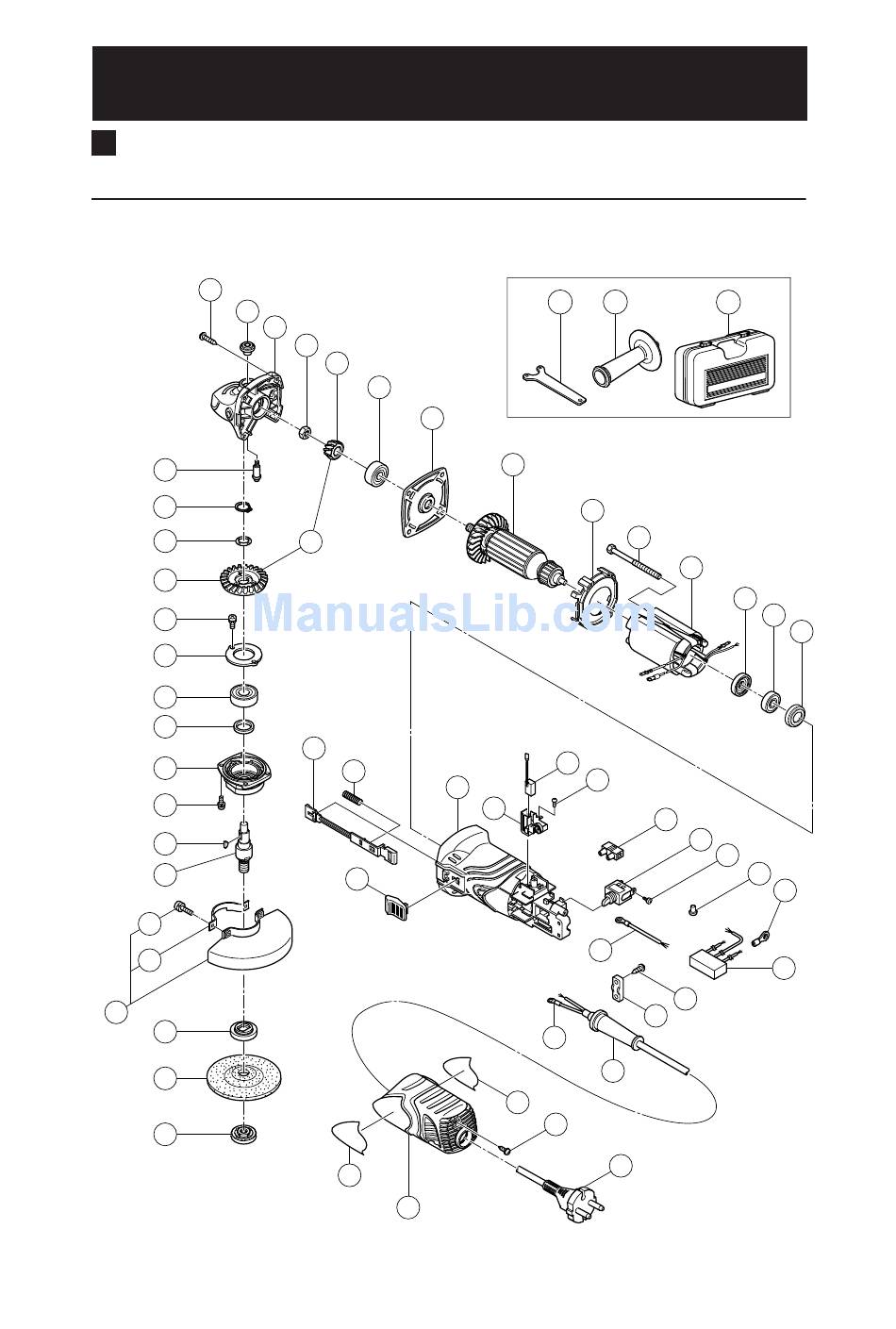

ELECTRIC TOOL PARTS LIST
