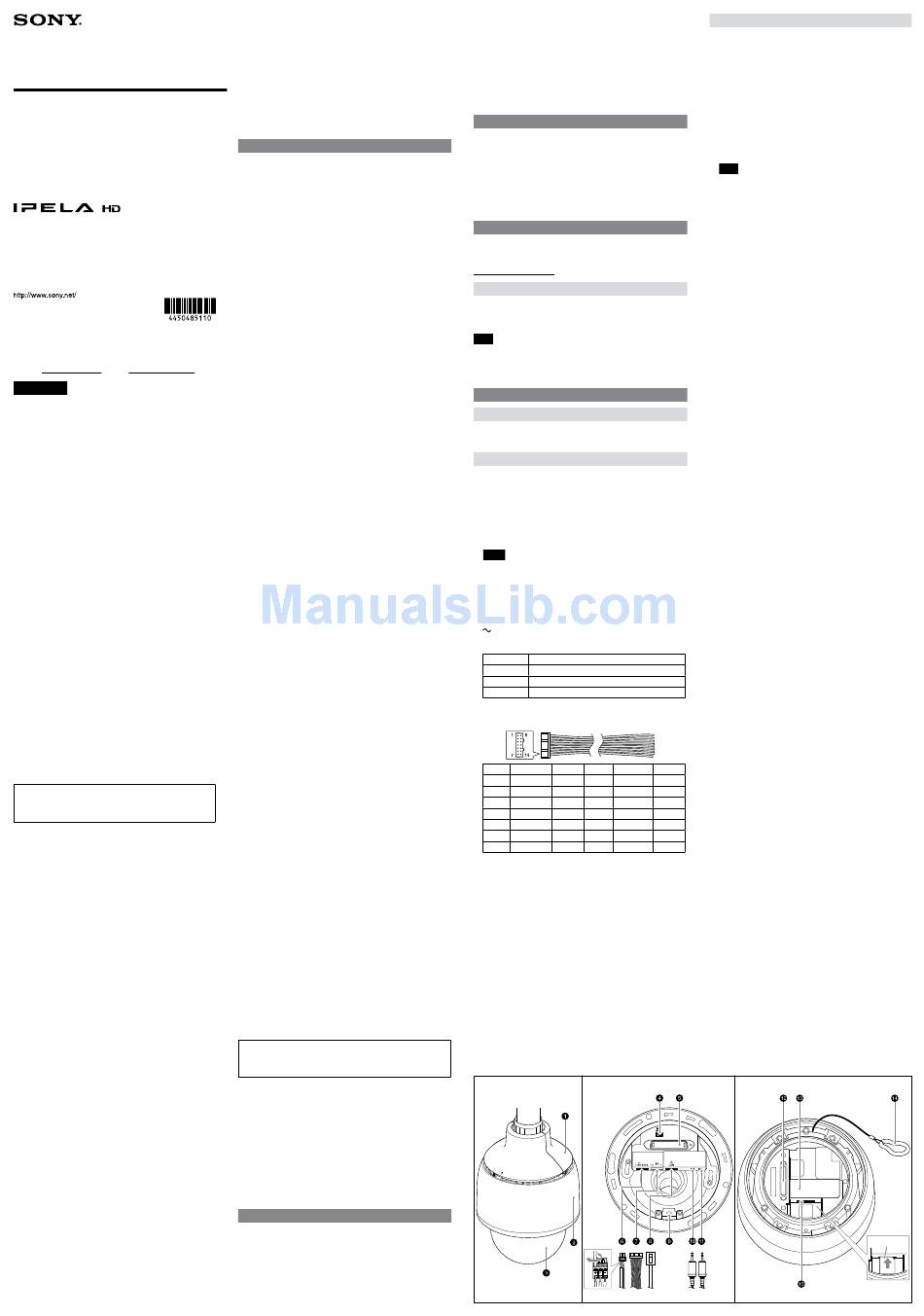

Sony Ipela SNC-ER585 Installation Manual

4-450-485-11 (1)
Network Camera
Installation Manual
Before operating the unit, please read this manual thoroughly and
retain it for future reference.
SNC-ER585/ER585H
 2012 Sony Corporation
Printed in China
Owner's Record
Refer to these numbers whenever you call upon your Sony dealer regarding
this product.
Model No. Serial No.
WARNING
To avoid electrical shock, do not open the cabinet. Refer
servicing to qualified personnel only.
Afin d'écarter tout risque d'électrocution, garder le
coffret fermé. Ne confier l'entretien de l'appareil qu'à un
personnel qualifié.
Um einen elektrischen Schlag zu vermeiden, darf
das Gehäuse nicht geöffnet werden. Überlassen Sie
Wartungsarbeiten stets nur qualifiziertem Fachpersonal.
CAUTION
This installation should be made by a qualified service person and should
conform to all local codes.
CAUTION
The rating label is located underneath the top unit.
ATTENTION
L'étiquette de régime nominal est située sous l'unité supérieure.
VORSICHT
Das Typenschild befindet sich unterhalb der oberen Einheit.
Power Supply
Caution for U.S.A. and Canada
The SNC-ER585/ER585H operates on 24 V AC.
In the USA, these products shall be powered by a UL listed Class 2 Power
supply Only. In Canada, these products shall be powered by a CSA Certified
Class 2 Power Supply Only.
Caution for other countries
The SNC-ER585/ER585H operates on 24 V AC.
Use a power supply rated 24 V AC which meets the requirements for
SELV (Safety Extra Low Voltage) and complies with Limited Power Source
according to IEC 60950-1 second edition.
Alimentation
Avertissement pour les États-Unis et le Canada
La caméra SNC-ER585/ER585H fonctionne sous 24 V c.a.
Aux États-Unis, ce produit doit être utilisé uniquement avec une source
d'alimentation de classe 2 répertoriée dans la liste UL. Au Canada, ce produit
doit être utilisé uniquement avec une source d'alimentation de classe 2
certifiée CSA.
Avertissement pour les autres pays
La caméra SNC-ER585/ER585H fonctionne sous 24 V c.a.
Utilisez une source d'alimentation de 24 V c.a. TBTS (Très basse tension de
sécurité) conforme aux dispositions de la section Sources à puissance limitée
de la norme CEI 60950-1, deuxième édition.
For the customers in the U.S.A.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
You are cautioned that any changes or modifications not expressly approved
in this manual could void your authority to operate this equipment.
All interface cables used to connect peripherals must be shielded in order to
comply with the limits for a digital device pursuant to Subpart B of Part 15 of
FCC Rules.
For the customers in Canada
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du
Canada.
For the customers in Europe
The manufacturer of this product is Sony Corporation, 1-7-1 Konan, Minato-
ku, Tokyo, 108-0075 Japan.
The Authorized Representative for EMC and product safety is Sony
Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany.
For any service or guarantee matters please refer to the addresses given in
separate service or guarantee documents.
Pour les clients en Europe
Le fabricant de ce produit est Sony Corporation, 1-7-1 Konan, Minato-ku,
Tokyo, 108-0075 Japon.
Le représentant autorisé pour EMC et la sécurité des produits est Sony
Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Allemagne.
Pour toute question concernant le service ou la garantie, veuillez consulter
les adresses indiquées dans les documents de service ou de garantie séparés.
Für Kunden in Europa
Der Hersteller dieses Produkts ist Sony Corporation, 1-7-1 Konan, Minato-ku,
Tokyo, 108-0075 Japan.
Der autorisierte Repräsentant für EMV und Produktsicherheit ist Sony
Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Deutschland.
Bei jeglichen Angelegenheiten in Bezug auf Kundendienst oder Garantie
wenden Sie sich bitte an die in den separaten Kundendienst- oder
Garantiedokumenten aufgeführten Anschriften.
For the customers in Europe, Australia and New Zealand
WARNING
This is a Class A product. In a domestic environment, this product may cause
radio interference in which case the user may be required to take adequate
measures.
In the case that interference should occur, consult your nearest authorized
Sony service facility.
Pour les clients en Europe, Australie et Nouvelle-Zélande
AVERTISSEMENT
Il s'agit d'un produit de Classe A. Dans un environnement domestique, cet
appareil peut provoquer des interférences radio, dans ce cas l'utilisateur
peut être amené à prendre des mesures appropriées.
Si des interférences se produisent, contactez votre service après-vente agréé
Sony.
Für Kunden in Europa, Australien und Neuseeland
WARNUNG
Dies ist eine Einrichtung, welche die Funk-Entstörung nach Klasse A besitzt. Diese
Einrichtung kann im Wohnbereich Funkstörungen verursachen; in diesem Fall
kann vom Betreiber verlangt werden, angemessene Maßnahmen durchzuführen
und dafür aufzukommen.
Sollten Funkstörungen auftreten, wenden Sie sich bitte an den nächsten
autorisierten Sony-Kundendienst.
This apparatus shall not be used in the residential area.
Ne pas utiliser cet appareil dans une zone résidentielle.
Dieser Apparat darf nicht im Wohnbereich verwendet werden.
ATTENTION
The electromagnetic fields at the specific frequencies may influence the picture
of this unit.
Notes on Use
Before Use
If you find condensation when you open the package, turn on the power after
the condensation disappears.
Data and security

Since the service is Internet-based, there is a risk that the image or audio you
are monitoring can be viewed or used by a third-party via the network. You
should keep in mind that the images or audio you are monitoring may be
protected by privacy and other legal rights, and the responsibility for making
sure you are complying with applicable laws is yours alone.
 Access to the images and audio is protected only by a user name and the
password you set up. No further authentication is provided nor should you
presume that any other protective filtering is done by the service.

SONY IS NOT RESPONSIBLE, AND ASSUMES ABSOLUTELY NO LIABILITY TO YOU
OR ANYONE ELSE, FOR SERVICE INTERRUPTIONS OR DISCONTINUATIONS OR
EVEN SERVICE CANCELLATION. THE SERVICE IS PROVIDED AS-IS, AND SONY
DISCLAIMS AND EXCLUDES ALL WARRANTIES, EXPRESS OR IMPLIED, WITH
RESPECT TO THE SERVICE INCLUDING, BUT NOT LIMITED TO, ANY OR ALL
IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE, OR THAT IT WILL OPERATE ERROR-FREE OR CONTINUOUSLY.

Security configuration is essential for wireless LAN. Should a problem
occur without setting security, or due to the limitation of the wireless LAN
specifications, SONY shall not be liable for any damage, loss of recorded data
or restoration thereof.
 Always make a test recording, and verify that it was recorded successfully.
SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT
LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF FAILURE
OF THIS UNIT OR ITS RECORDING MEDIA, EXTERNAL STORAGE SYSTEMS OR
ANY OTHER MEDIA OR STORAGE SYSTEMS TO RECORD CONTENT OF ANY TYPE.
 Always verify that the unit is operating properly before use. SONY WILL NOT
BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO,
COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT
OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING THE
WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY
OTHER REASON WHATSOEVER.

If you lose data by using this unit, SONY accepts no responsibility for
restoration of the data.
Personal information
The images taken by the system using this device can identify individuals
and thus they fall under "personal information" stipulated in the "Act on the
Protection of Personal Information". Please handle the video data appropriately
according to law.
 Information recorded using this product may also be "personal information".
Upon disposal, transfer, repair, or any other occasion where this product or
storage media is passed on to a third party, practice due care in its handling.
Operating or storage location
Avoid operating or storing the camera in the following locations.

Extremely hot or cold places
 Close to sources of strong magnetism
 Close to sources of powerful electromagnetic radiation, such as radios or TV
transmitters

Locations subject to vibration or shock

Locations where radiation or X-rays are emitted

Near the outdoor unit of an air conditioner or any other place where drastic
temperature changes may occur (this may cause clouding of the dome cover)
 Locations subject to steam or high humidity
 Locations subject to strong wind, such as high places
 Locations where corrosive gas or flammable gas is emitted, or where salt
damage may occur
Ventilation
To prevent heat buildup, do not block air circulation around the camera.
Transportation

Always turn off the power when carrying.

When transporting the camera, repack it as originally packed at the factory or
in materials of equal quality.
Grounding
 Always connect the ground cable before connecting the power cable to the
main power supply.
Before removing the ground connection, disconnect the power cable from the
main power supply.

This unit should be always connected to the ground connection to reduce
damage from lightning strike, etc. Check that the ground cable is correctly and
securely connected before use.
Installation
Ensure that the dome cover is installed facing perpendicularly downward
without any tilt.
Humidity when installing the device
Install this device under low humidity condition. Otherwise the dome cover may
cloud up during operation.
Using in cold climates (SNC-ER585 only)
This device is equipped with a built-in heater, which automatically turns on if the
internal temperature is significantly low. Note that, in some environments, the
heater may not melt snow or frost on the dome cover.
Starting and closing under low temperature

When starting the SNC-ER585 in temperatures below 0 °C (32 °F), the camera
system may not start operating immediately after start-up. In such a case, the
heater starts and raises the internal temperature, starting the camera system.
It may take about two hours for the camera system to start streaming normal
images. Since there is no heater function in the SNC-ER585H, it cannot be
started in temperatures below 0 °C (32 °F).

If the unit is turned off in an ambient temperature of 0 °C (32 °F) or below,
condensation may occur in the dome cover, which may take some time
to clear after turning the unit on again. In order to prevent the prolonged
condensation, it is recommended that to leave this unit powered on for a short
term recess, in that environment.
Cleaning

Use a soft, dry cloth to clean the external surfaces of the camera. Stubborn
stains can be removed using a soft cloth dampened with a small quantity of
detergent solution, then wipe dry.
 Do not use volatile solvents such as alcohol, benzene or thinners as they may
damage the surface finishes.
Please consult the store of purchase or authorized Sony dealer if there were
troubles and anomalies.
Note on laser beams
Laser beams may damage image sensors. You are cautioned that the surface of
image sensors should not be exposed to laser beam radiation in an environment
where a laser beam device is used.
About the SD Memory Card
Data on the SD Memory Card may be damaged or deleted in the following cases.
Sony is not responsible for compensation for damage or lost earnings due to
damage or loss of data.
 If you remove the SD Memory Card from this device or turn off the power
while the SD Memory Card is being accessed.

If the SD Memory Card is subject to shock.

When the lifetime of the SD Memory Card expires.
(Lifetime may shorten significantly, depending on its use.)
 If the SD Memory Card is not set or inserted properly.
Camera settings
DynaView(WDR) is not available when the slow shutter is used.
The exposure compensation function is not available when DynaView(WDR) is
used.
Phenomena Specific to Image Sensors
The following phenomena that may occur in images are specific to image
sensors. They do not indicate a malfunction.
White flecks
Although the image sensors are produced with high-precision technologies, fine
white flecks may be generated on the screen in rare cases, caused by cosmic rays,
etc.
This is related to the principle of image sensors and is not a malfunction.
The white flecks especially tend to be seen in the following cases:
- when operating at a high environmental temperature
- when you have raised the gain (sensitivity)
- when using the slow shutter
Aliasing
When fine patterns, stripes, or lines are shot, they may appear jagged or flicker.
About the Supplied Manuals
Installation Manual (this document)
This Installation Manual describes the names and functions of parts and controls
of the Network Camera, gives connection examples and explains how to set up
the camera. Be sure to read the Installation Manual before operating.
User's Guide (stored in the CD-ROM)
The User's Guide describes how to set up the camera and how to control the
camera via a Web browser.
After installing and connecting the camera correctly, operate referring to this
User's Guide.
Using the software
The CD-ROM supplied with this product includes the User's Guide (in PDF format)
and a setup program for assigning an IP address.
This product is equipped with a Smartphone viewer.
For more details, see "Smartphone viewer User's Manual" at the following URL:
http://www.sony.net/ipela/snc
Using the CD-ROM manual
The manual can be read on a computer with Adobe Reader installed.
You can download Adobe Reader free from the Adobe website.
1
Open the index.htm file in the CD-ROM.
2
Select and click on the manual that you want to read.
Note
If you have lost or damaged the CD-ROM, you can purchase a new one from your
Sony dealer or Sony service counter.
Adobe and Acrobat Reader are trademarks of Adobe Systems Incorporated in the
United States and/or other countries.
Location and Function of Part
Camera (Front)
 Top sunshade
 Sunshade
 Dome cover
Top Unit (Bottom)
 Reset switch
This switch returns the setting of the device to the factory default setting.
1. Move the INIT switch in the direction indicated by  and connect with
camera.
2. Turn on power and wait 1 minute. After the initialization is completed, the
camera starts.
3. Check that the camera has started and turn off the power to remove
camera.
4. Move the INIT switch back to its original position.
Notes

Resetting the device removes all customized settings. It is recommended
that users save the settings as necessary. Instructions on how to save
settings are available in the User's Guide.
 The reset switch should always be returned to its original position.
Otherwise your device is reset to its factory default setting whenever it is
turned on.
 Camera connection terminal
Connect to the camera connection terminal of the camera.
 AC 24 V (power input) terminal
Use the supplied AC connector to connect to the 24 V AC power supply
system.
Pin No. Pin name
1 AC 24 V+
2 Frame Ground
3 AC 24 V–
 I/O (Input/Output) port
Provides two sensor inputs and one alarm outputs.
Connect the supplied I/O harness.
Pin No. Pin name Color Pin No. Pin name
1 Alarm Out 1– Blue 8 NC
2 Alarm Out 1+ Blue 9 NC
3 NC Yellow 10 NC
4 NC Orange 11 NC
5 Sensor In 2 Red 12 GND
6 Sensor In 1 Brown 13 NC
7 GND Black 14 NC
  LAN (network) port (RJ-45)
Connect to a 10BASE-T or 100BASE-TX network using a network cable (UTP,
category 5).
CAUTION
For safety, do not connect the connector for peripheral device wiring that
might have excessive voltage to this port. Follow the instructions for this port.
ATTENTION
Par mesure de sécurité, ne raccordez pas le connecteur pour le câblage de
périphériques pouvant avoir une tension excessive à ce port. Suivez les
instructions pour ce port.
VORSICHT
Aus Sicherheitsgründen nicht mit einem Peripheriegerät-Anschluss
verbinden, der zu starke Spannung für diese Buchse haben könnte. Folgen
Sie den Anweisungen für diese Buchse.
 Harness holder
Attach the supplied band mount.
  (microphone input) terminal (minijack, monaural)
Connect a commercially available microphone.
  (line output) terminal (minijack, monaural)
Connect to a commercially available speaker with a built-in amplifier.
 
Camera (Top)
 Camera connection terminal
Connect to the camera connection terminal of the top unit.
 Rating Label
This label shows the name of device and its electric rating.
 Built-in wire rope
The wire rope is used for fall-prevention.
 SD memory card slot
This slot is used for an optional SD memory card.
Images captured by the camera can be stored into an inserted memory
card.
Be sure that the printed side of a memory card and the product
specifications label face in the same direction, and then insert the card
firmly into the slot. (a)
This unit only supports memory card formats compatible with the
SD/SDHC standards.
Note
For information about Sony-approved SD memory cards, contact your
Sony dealer.


Color
Yellow
Orange
Red
Brown
Black
Purple
Purple


(continued on the reverse side)
a
Printed side
