RS232 Commands and Protocol
Function List

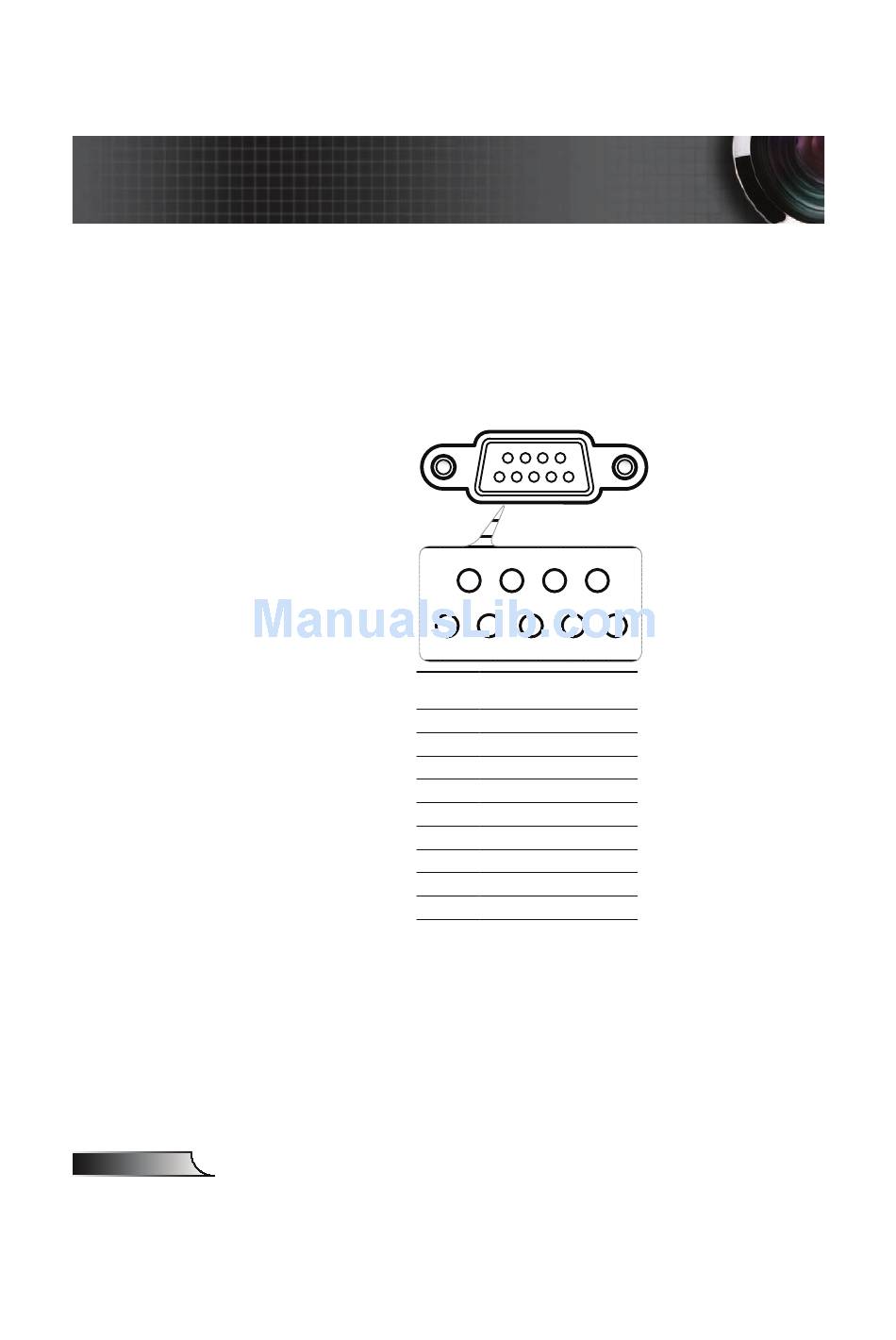

RS232 Pin Assignments
5
Pin no.
1
2
3
4
5
6
7
8
9
9
8
7
6
4
3
2
1
Spec.
(from projector side)
N/A
RXD
TXD
N/A
GND
N/A
N/A
N/A
N/A
Advertisement
Related Manuals for Optoma GT360
Summary of Contents for Optoma GT360
-
Page 1: Rs232 Commands And Protocol Function List
Appendices RS232 Commands and Protocol Function List RS232 Pin Assignments Spec. Pin no. (from projector side) English... -
Page 2: Rs232 Protocol Function List
Appendices RS232 Protocol Function List XX=00-99, projector's ID, Baud Rate : 9600 XX=00 is for all projectors Data Bits: 8 Parity: None Stop Bits: 1 1. There is a <CR> after Flow Control : None all ASCII commands. UART16550 FIFO: Disable 2. - Page 3 Appendices ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ---------------------------------- ~XX60 1 7E 30 30 36 30 20 31 0D Format ~XX60 2 7E 30 30 36 30 20 32 0D 16:9-l (for ES523ST) / 16:9 (for EW533ST) ~XX60 3 7E 30 30 36 30 20 33 0D 16:9-ll (for ES523ST) / 16:10 (for EW533ST) ~XX60 6 7E 30 30 36 30 20 36 0D...
- Page 4 Appendices --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX105 1 7E 30 30 31 30 35 20 31 0D Advanced Direct Power On ~XX105 0 7E 30 30 31 30 35 20 30 0D Off (0/2 for backward compatible) ~XX106 n 7E 30 30 31 30 36 20 a 0D Auto Power Off (min) n = 0 (a=30) ~ 180 (a=31 38 30) step:5 ~XX107 n...
