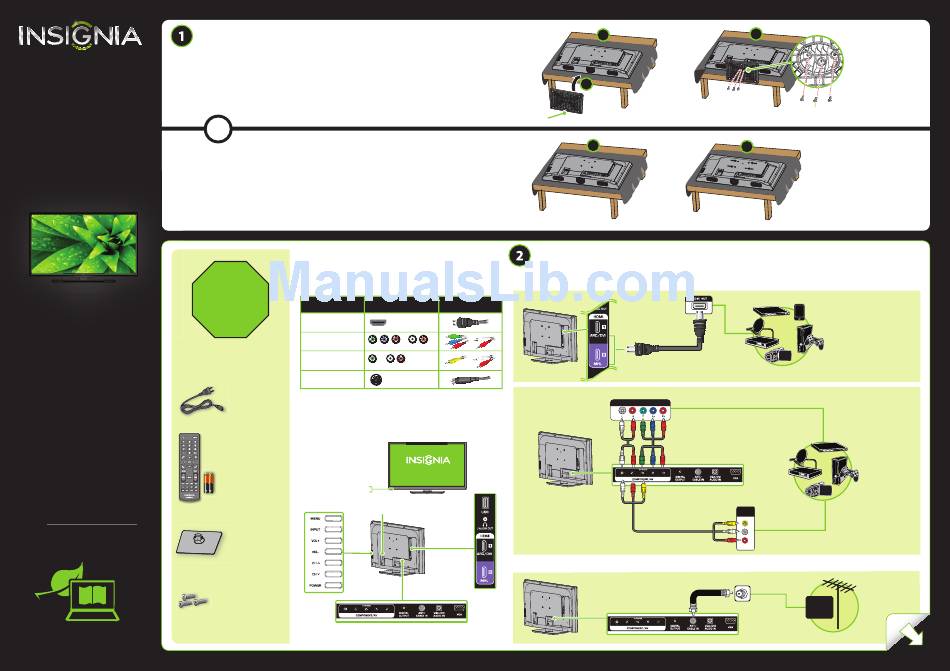

Insignia NS-32D200NA14 Quick Setup Manual

TM
QUICK
SETUP GUIDE
32" LED TV
NS-32D200NA14
Thank you
for purchasing this state-of-the-art
Insignia television. We hope you enjoy
the quality and reliability of this
television for years to come.
Included accessories
FIND YOUR
USER GUIDE ONLINE!
We are going green so a copy of your
User Guide is not provided in the box
but is available online.
Go to www.insigniaproducts.com,
then click Support & Service. Enter your
model number in the box under Manual,
Firmware, Drivers & Product Information,
then click .
START HERE
How do I attach the stand to my TV?
(not for wall mounting)
You'll need: A Phillips screwdriver and a soft surface to lay the TV on.
A Carefully place your TV face-down on a cushioned, clean surface to protect the screen from damages and
scratches.
B Align the TV stand with the bottom of the TV.
C Secure the stand to the TV with the three provided screws.
- OR -
How do I prepare my TV for wall mounting?
(not for use with a TV stand)
A Carefully place your TV face-down on a cushioned, clean surface to protect
the screen from damages and scratches.
B Locate the mounting screw holes on the back of your TV. See the instructions
that came with the wall-mount bracket for information about how to
correctly hang your TV.
Which cables do you have?
Your TV has several different jacks for connecting devices. For the
STOP!
best video quality, use the best available connection. Use the cables
that came with your devices.
Do not plug your
power cord in until all
other devices have
VIDEO QUALITY
been connected.
BEST
BETTER
Component video and analog audio
GOOD
Composite video and analog audio
GOOD
Note: You can use the HDMI 1/ARC/DVI jack to connect a DVI device to your TV. Attach
an HDMI-to-DVI adapter to the end of the HDMI cable. The adapter connects to the DVI
device's jack. See your online User Guide for more information about different types of
Power cord HDMI (ARC, DVI, MHL).
Features
Front view
Remote control
and two AAA batteries
Power indicator
Remote control sensor
Back view
Power connector
TV stand
M4 screws
(18 mm length) (3 pcs.)
L R P B
Note: Images do not necessarily represent the exact design of your television.
Before using your new product, please read these instructions to prevent any damage.
Front of Base
MAKING CONNECTIONS
How do I watch TV (cable or satellite receiver) or connect a device such as a DVD or
Blu-ray Disc player, game station, MHL-enabled device, Roku Streaming Stick, or camcorder?
Using an HDMI cable (BEST)
JACK TYPE CABLE CONNECTOR
HDMI video/audio
Coaxial video/audio
Using component cables (BETTER)
- OR -
Using an AV cable (GOOD)
How do I connect my TV to an antenna or cable wall jack?
P R
A C
B
A
B
AUDIO/VIDEO OUT Component cable option
L R P P
B R
AUDIO/VIDEO
OUT
AV cable option
L R P P
B R
M4 (18 mm)
Multi-purpose jacks: You can plug any
device that uses HDMI into either
HDMI jack. However, certain devices
must be connected to the ARC/DVI
jack or MHL jack. The ARC and DVI
jacks are shared. This means you
can only connect one ARC or DVI
device at a time.
Note: The component and AV jacks
are shared. This means you can
connect only one component or AV
device at a time. We suggest using
HDMI if your device supports it. See
the instructions that came with your
DVI, ARC, or MHL device.
Note: Connect the yellow video
cable connector to the green
Y/VIDEO jack on the back of
your TV.
CABLE
OVER
