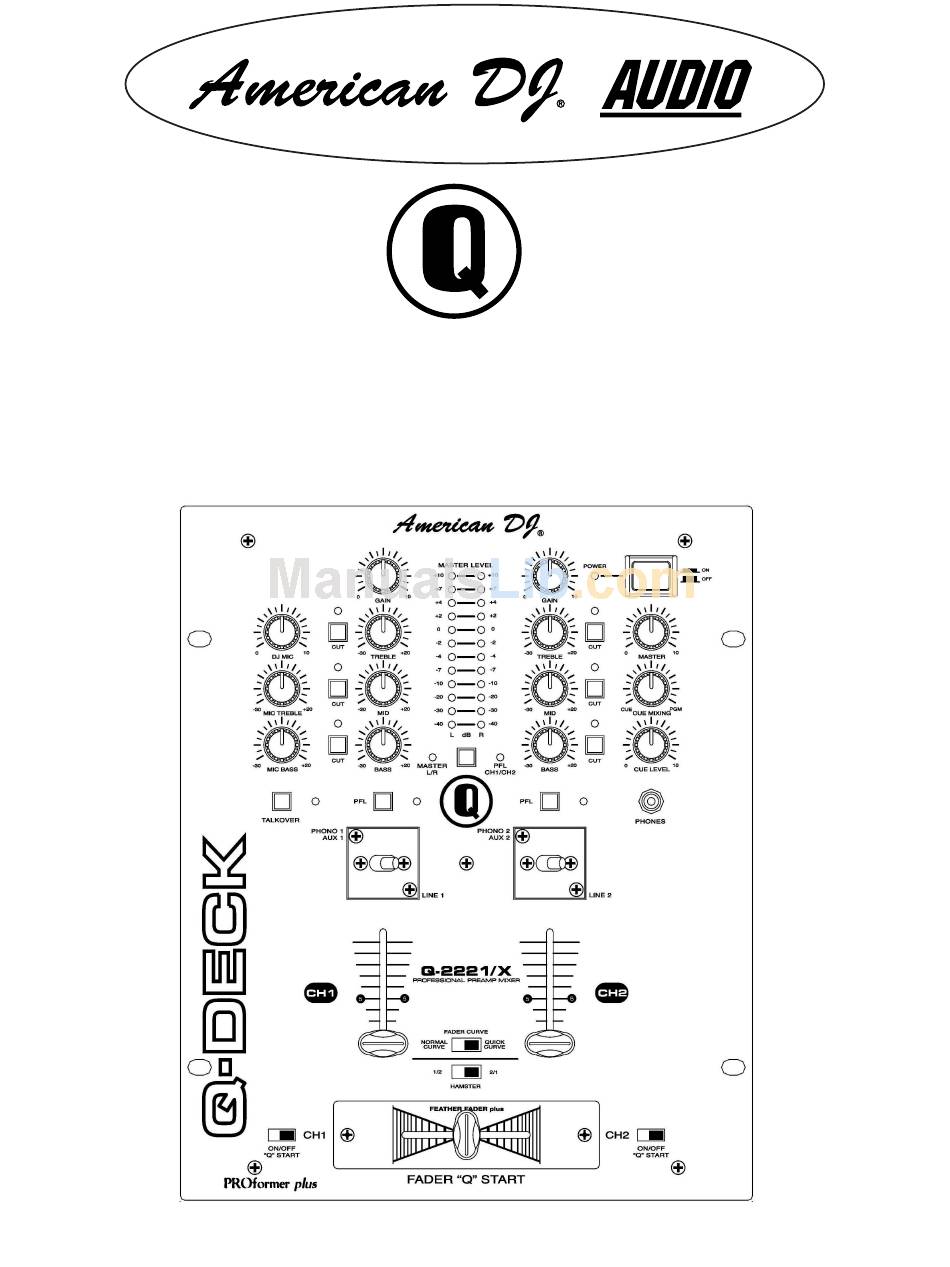

- Page 1 Q-2221/X “Q-Deck” USER INSTRUCTIONS djs wanted.
- Page 2 Main Features • Soft-touch rubber knobs for better control • Super clean signal to noise ratio the working dj. American DJ AUDIO Los Angeles, CA 90058 USA © ® Specifications subject to change without notice. Q-2221/X User Instructions page 2...
-
Page 3: Table Of Contents
The Q-2221/X Is ready to be ® used, there Is no assembly required. Please read the following Instructions before installing or using your new unit. The Q-2221/X has a 2 year limited warranty! CAUTION! - Keep this device away from rain and moisture! Safety Instructions Always plug in the power last. -
Page 4: Operating Determinations
• Connect your microphone to the Microphone Input on the rear panel. • The Q-2221/X features one microphone input. The 1/4 inch (6.3mm) MIC JACK on the rear panel. You can adjust the microphone volume output by turning the DJ MIC LEVEL. DJ MIC TREBLE & BASS may be controlled by the BASS &... - Page 5 5. PFL BUTTONS - Depressing these button sends the PFL (Pre-Fader Level) input signal to the cue level controls (14, 15, and 16). This allows you to monitor an input signal in a pair of headphones. American DJ Supply © - www.americandj.com - Q-2221/X User Instructions page 5 ®...
- Page 6 17. CHANNEL EQUALIZER "ROTARY KILLS" - BASS/MID/TREBLE CONTROL - Used to increase or decrease the LOW's, MID’s, and HI’s of the input signal. The Q-2221/X features "Rotary Kills" with -30dB to +20db input control.
- Page 7 © PLAYER CONTROL MADE IN TAIWAN AUX 2 MASTER LINE 2 PHONO 2 AUX 2 OUTPUT CH-2 - www.americandj.com - Q-2221/X User Instructions page 7 ® LIGHT CONTROL PHONO2 AUX 1 PHONO 1 LINE 1 PHONO 1 AUX 1 CH-1...
-
Page 8: Replacing The Crossfader
The connector is desired to only fit one way, so don't worry about the connectors orientation. 5. Connect the new crossfader to the ribbon cable and replace in reverse order. American DJ Supply © - www.americandj.com - Q-2221/X User Instructions page 8 ®... -
Page 9: Changing The Transformer Switch
Replacing the Transformer Switch 1. Disconnect the mixers main power supply 2. Using a number two Phillips screw driver, unscrew the two larger stainless steel retain screws on the outside corners of the selector switch. These screws hold the selector switch in place. 3. -
Page 10: Warranty & Service
Bass = +12 ± 1dB, -12 ± 1 dB at 100KHz / Treble = +12 ± 1dB, -12 ± 1 dB at 10KHz Warranty & Service: The Q-2221/X has a 2-year limited warranty. Please mail in warranty card as soon as possible to validate your warranty.
