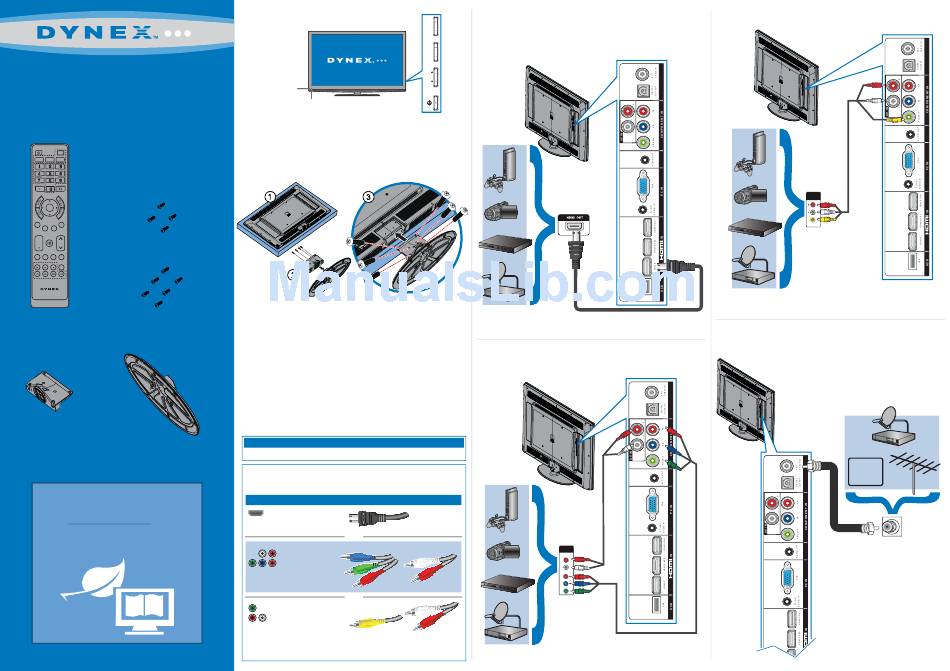

Dynex DX-60D260A13 Quick Setup Manual

60" 1080p LED
QUICK SETUP GUIDE
DX-60D260A13
TV
VIDEO HDMI ACC
Remote control
and 2 AAA batteries
ENTER
INPUT CCD
CH-LIST FAVORITE
+
MUTE
M4 type (20 mm length) (4 pcs)
VOL CH
SLEEP ZOOM MTS/SAP PICTURE
AUDIO
DX-RC03A-13
M4 type (16 mm length) (6 pcs)
Stand column TV stand
WE ARE GOING GREEN!
A copy of your User Guide is not provided
in the box but is available online.
Go to www.dynexproducts.com, then click
Support & Service. Enter your model number in
the Manual, Firmware, Drivers & Product
Information, then click Search.

Front features

Power indicator
Remote
control sensor

Installing the stand

1 Carefully place your TV face-down on a cushioned, clean surface to protect
the screen from damages and scratches.
2 Attach the stand to the stand column using the four provided M4 screws
(20 mm).
3 Attach the stand assembly to the TV using the six provided M4 screws
(16 mm).

Installing a wall-mount bracket

1 Carefully place your TV face-down on a cushioned, clean surface to protect
the screen from damages and scratches.
2 Attach the wall-mount bracket to your TV using the mounting holes on the
back of your TV. See the instructions that came with the wall-mount bracket
for information about how to correctly hang your TV.
Warning
This apparatus is intended to be supported by a UL Listed wall mount bracket.

Identifying cables

Your TV has several connection types for connecting devices. For the best video quality,
connect a device to the best available connection.
Connection type Video quality Cable connector
Best
HDMI video/audio
OR
Better
Component video
and analog audio
OR
Good
Composite video
and analog audio
You can use the HDMI1/DVI jack to connect a DVI device to your TV. You need to attach
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device's jack.
Connecting a DVD or Blu-ray player, cable box,
MENU
satellite receiver, camcorder, or game console
INPUT
Using an HDMI cable (best)
VOL +
VOL -
CH
CH
Note: Cable is not included.
Using component cables (better)
AUDIO/VIDEO
OUT
R
L
Using an AV cable (good)
Note: Cable is not included.

Connecting an antenna/cable wall jack

Note: Cables are not included.
AUDIO/VIDEO
OUT
Note: Connect the
yellow (video) cable
connector to the green
(VIDEO/Y) jack.
CABLE
Note: Cable is not included.
