Brother BE-1204C Technical Reference

Brother sewing machines - changing needle bar cushions

Hide thumbs Also See for BE-1204C:

Download this manual See also: Maintenance Schedule, Parts Book

Title:

Changing needle bar cushions

Models:

BE-1204C, BE-1206B

Loosen

Remove

Technical Reference

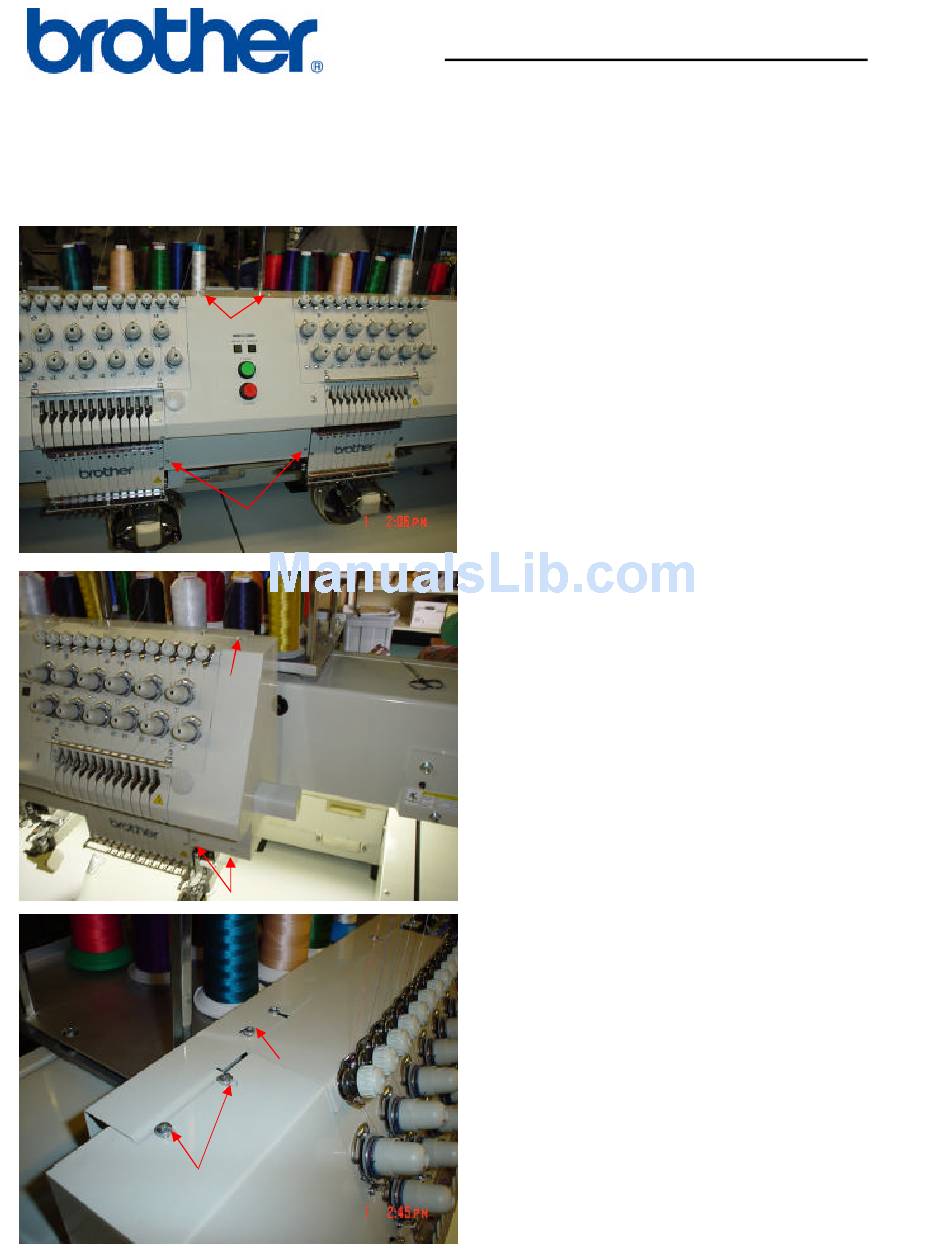

1. Make sure the machine power is turned off.

2. Remove the covers between each head by removing

the two lower screws and loosening the two upper

screws on the BE-1204 or one upper screw on the

BE-1206.

3. Remove the right end cover by removing the two

lower screws and loosening the one upper screw.

4. Remove the right end cover by removing the two

lower screws and loosening two upper screws. Plus

removing a screw on the cover behind the head.

Page 1 Technical Reference Title: Changing needle bar cushions Models: BE-1204C, BE-1206B 1. Make sure the machine power is turned off. 2. Remove the covers between each head by removing the two lower screws and loosening the two upper screws on the BE-1204 or one upper screw on the BE-1206.
Page 2 Technical Reference 5. Loosen the screw on the left and remove the screw on the right of the face plate that has the Brother logo on it. Slide the face plate off to the right on each head. 6. Remove the two screws of the middle thread guide Middle thread guide and remove the middle thread guide on all heads.
Page 3 Technical Reference 10. Remove the four hex screws securing the tension base. Remove tension base from the machine by disconnecting the harness at the back and the ground wire held on by a screw to the tension base mount. Remove 11.
Page 4 Technical Reference 18. Please see “Adjusting Needle Bar Height” in instruction manual for completing adjustment of each needle bar. (Note: You will need to engage each Needle bar shown engaged needle bar by pushing down on the needle bar clamp until it locks in to place before performing the adjustment.

Be-1206b
