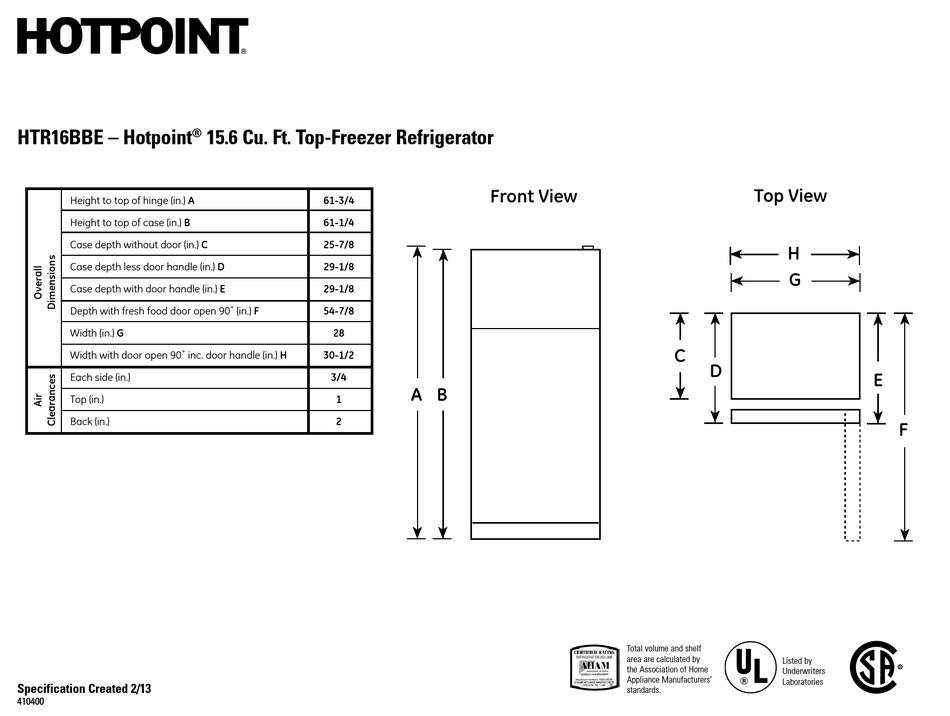

HTR16BBE – Hotpoint
®
Height to top of hinge (in.) A
Height to top of case (in.) B
Case depth without door (in.) C
Case depth less door handle (in.) D
Case depth with door handle (in.) E
Depth with fresh food door open 90˚ (in.) F
Width (in.) G
Width with door open 90˚ inc. door handle (in.) H
Each side (in.)
Top (in.)
Back (in.)
Specification Created 2/13
410400
15.6 Cu. Ft. Top-Freezer Refrigerator
61-3/4
61-1/4
25-7/8
29-1/8
29-1/8
54-7/8
28
30-1/2
3/4
1
2
F
Front View
A
B
Height to top of hinge (in.) A
Height to top of case (in.) B
Case depth without door (in.) C
Case depth less door handle (in.) D
Case depth with door handle (in.) E
Depth with fresh food door open 90˚ (in.) F
Top View
H
G
C
D
Total volume and shelf
area are calculated by
Listed by
the Association of Home
Underwriters
Appliance Manufacturers'
Laboratories
standards.
E
F
61-3/4
61-1/4
25-7/8
29-1/8
29-1/8
54-7/8
