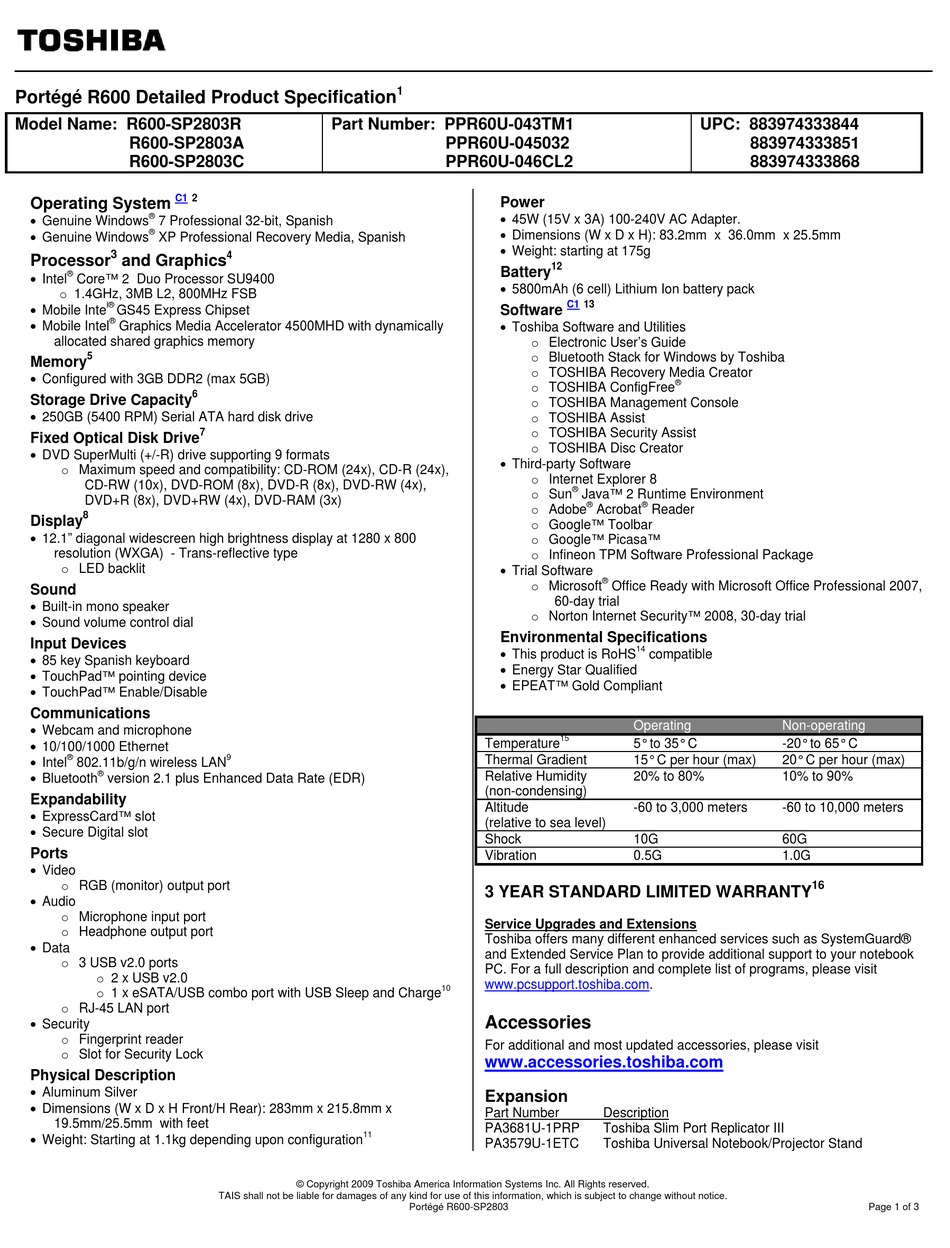

Portégé R600 Detailed Product Specification
Model Name: R600-SP2803R
R600-SP2803A
R600-SP2803C
C1
2
Operating System
 Genuine Windows
®
7 Professional 32-bit, Spanish
 Genuine Windows
®
XP Professional Recovery Media, Spanish
3
Processor
and Graphics
 Intel
®
Core™ 2 Duo Processor SU9400
o 1.4GHz, 3MB L2, 800MHz FSB
 Mobile Inte
GS45 Express Chipset
 Mobile Intel
®
Graphics Media Accelerator 4500MHD with dynamically
allocated shared graphics memory
5
Memory
 Configured with 3GB DDR2 (max 5GB)
6
Storage Drive Capacity
 250GB (5400 RPM) Serial ATA hard disk drive
Fixed Optical Disk Drive
 DVD SuperMulti (+/-R) drive supporting 9 formats
o Maximum speed and compatibility: CD-ROM (24x), CD-R (24x),
CD-RW (10x), DVD-ROM (8x), DVD-R (8x), DVD-RW (4x),
DVD+R (8x), DVD+RW (4x), DVD-RAM (3x)
8
Display
 12.1" diagonal widescreen high brightness display at 1280 x 800
resolution (WXGA) - Trans-reflective type
o LED backlit
Sound
 Built-in mono speaker
 Sound volume control dial
Input Devices
 85 key Spanish keyboard
 TouchPad™ pointing device
 TouchPad™ Enable/Disable
Communications
 Webcam and microphone
 10/100/1000 Ethernet
 Intel
®
802.11b/g/n wireless LAN
 Bluetooth
®
version 2.1 plus Enhanced Data Rate (EDR)
Expandability
 ExpressCard™ slot
 Secure Digital slot
Ports
 Video
o RGB (monitor) output port
 Audio
o Microphone input port
o Headphone output port
 Data
o 3 USB v2.0 ports
o 2 x USB v2.0
o 1 x eSATA/USB combo port with USB Sleep and Charge
o RJ-45 LAN port
 Security
o Fingerprint reader
o Slot for Security Lock
Physical Description
 Aluminum Silver
 Dimensions (W x D x H Front/H Rear): 283mm x 215.8mm x
19.5mm/25.5mm with feet
 Weight: Starting at 1.1kg depending upon configuration
Part Number: PPR60U-043TM1
4
7
9
11
© Copyright 2009 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
1
PPR60U-045032
PPR60U-046CL2
Power
 45W (15V x 3A) 100-240V AC Adapter.
 Dimensions (W x D x H): 83.2mm x 36.0mm x 25.5mm
 Weight: starting at 175g
12
Battery
 5800mAh (6 cell) Lithium Ion battery pack
C1
Software
 Toshiba Software and Utilities
o Electronic User's Guide
o Bluetooth Stack for Windows by Toshiba
o TOSHIBA Recovery Media Creator
o TOSHIBA ConfigFree
o TOSHIBA Management Console
o TOSHIBA Assist
o TOSHIBA Security Assist
o TOSHIBA Disc Creator
 Third-party Software
o Internet Explorer 8
®
o Sun
o Adobe
o Google™ Toolbar
o Google™ Picasa™
o Infineon TPM Software Professional Package
 Trial Software
o Microsoft
60-day trial
o Norton Internet Security™ 2008, 30-day trial
Environmental Specifications
 This product is RoHS
 Energy Star Qualified
 EPEAT™ Gold Compliant
15
Temperature
Thermal Gradient
Relative Humidity
(non-condensing)
Altitude
(relative to sea level)
Shock
Vibration
3 YEAR STANDARD LIMITED WARRANTY
Service Upgrades and Extensions
Toshiba offers many different enhanced services such as SystemGuard®
and Extended Service Plan to provide additional support to your notebook
PC. For a full description and complete list of programs, please visit
www.pcsupport.toshiba.com.
10
Accessories
For additional and most updated accessories, please visit
www.accessories.toshiba.com
Expansion
Part Number
PA3681U-1PRP
PA3579U-1ETC
Portégé R600-SP2803
UPC: 883974333844
883974333851
883974333868
13
®
Java™ 2 Runtime Environment
®
®
Acrobat
Reader
®
Office Ready with Microsoft Office Professional 2007,
14
compatible
Operating
5° to 35° C
15° C per hour (max)
20% to 80%
-60 to 3,000 meters
10G
0.5G
Description
Toshiba Slim Port Replicator III
Toshiba Universal Notebook/Projector Stand
Non-operating
-20° to 65° C
20° C per hour (max)
10% to 90%
-60 to 10,000 meters
60G
1.0G
16
Page 1 of 3
