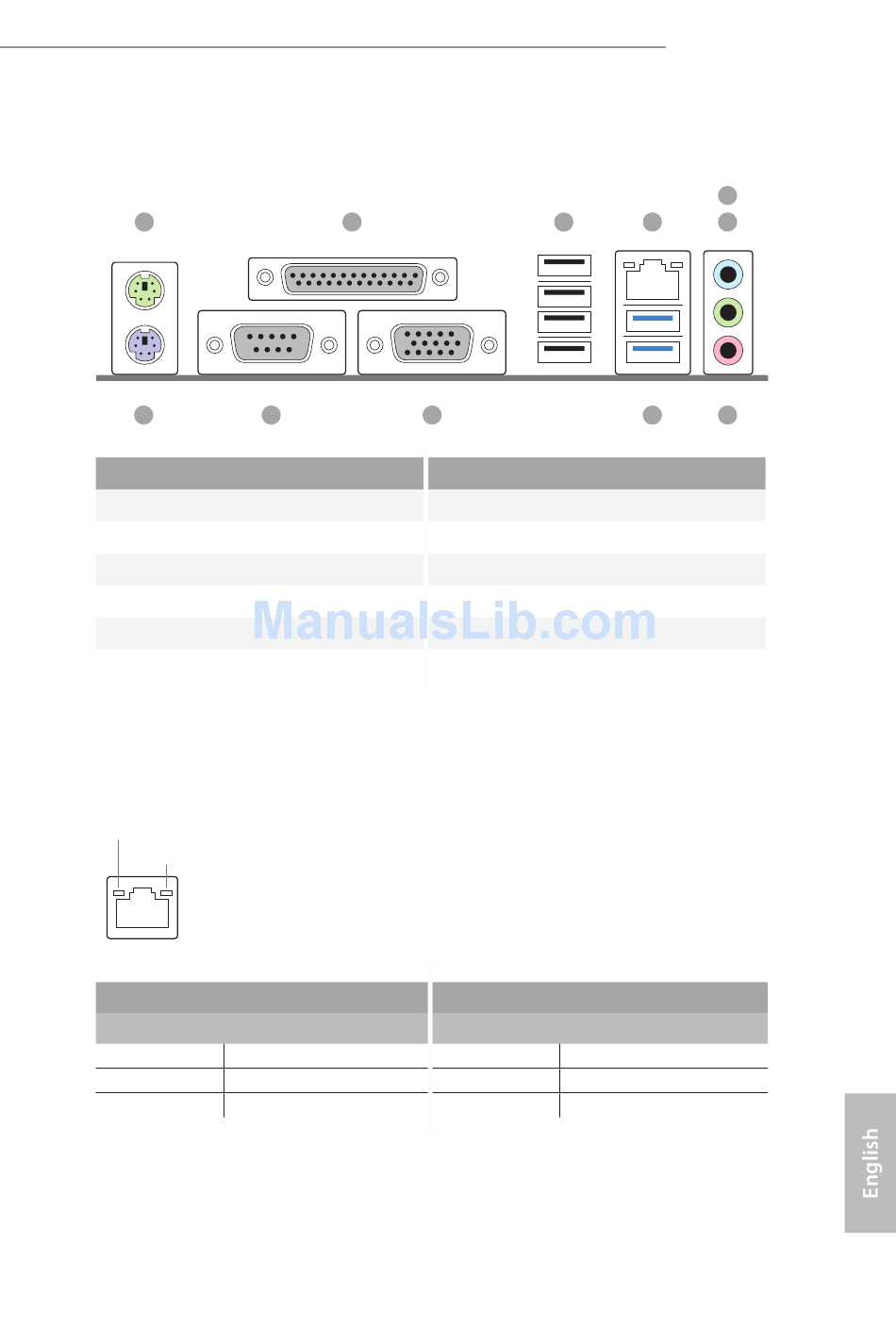

1.5 I/O Panel

1
11 10
No. Description
1 PS/2 Mouse Port
2 Parallel Port
3 USB 2.0 Ports (USB0123)
4 LAN RJ-45 Port*
5 Line In (Light Blue)
6 Front Speaker (Lime)
* There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED
SPEED LED
LAN Port
Activity / Link LED
Status Description
Off No Link
Blinking Data Activity
On Link
2
9
No. Description
7 Microphone (Pink)
8 USB 3.0 Ports (USB3_01)
9 DVI-D Port
10 COM Port
11 PS/2 Keyboard Port
Speed LED
Status
Off
Orange
Green
5
3 4 6
8 7
Description
10Mbps connection
100Mbps connection
1Gbps connection
