Getting Started

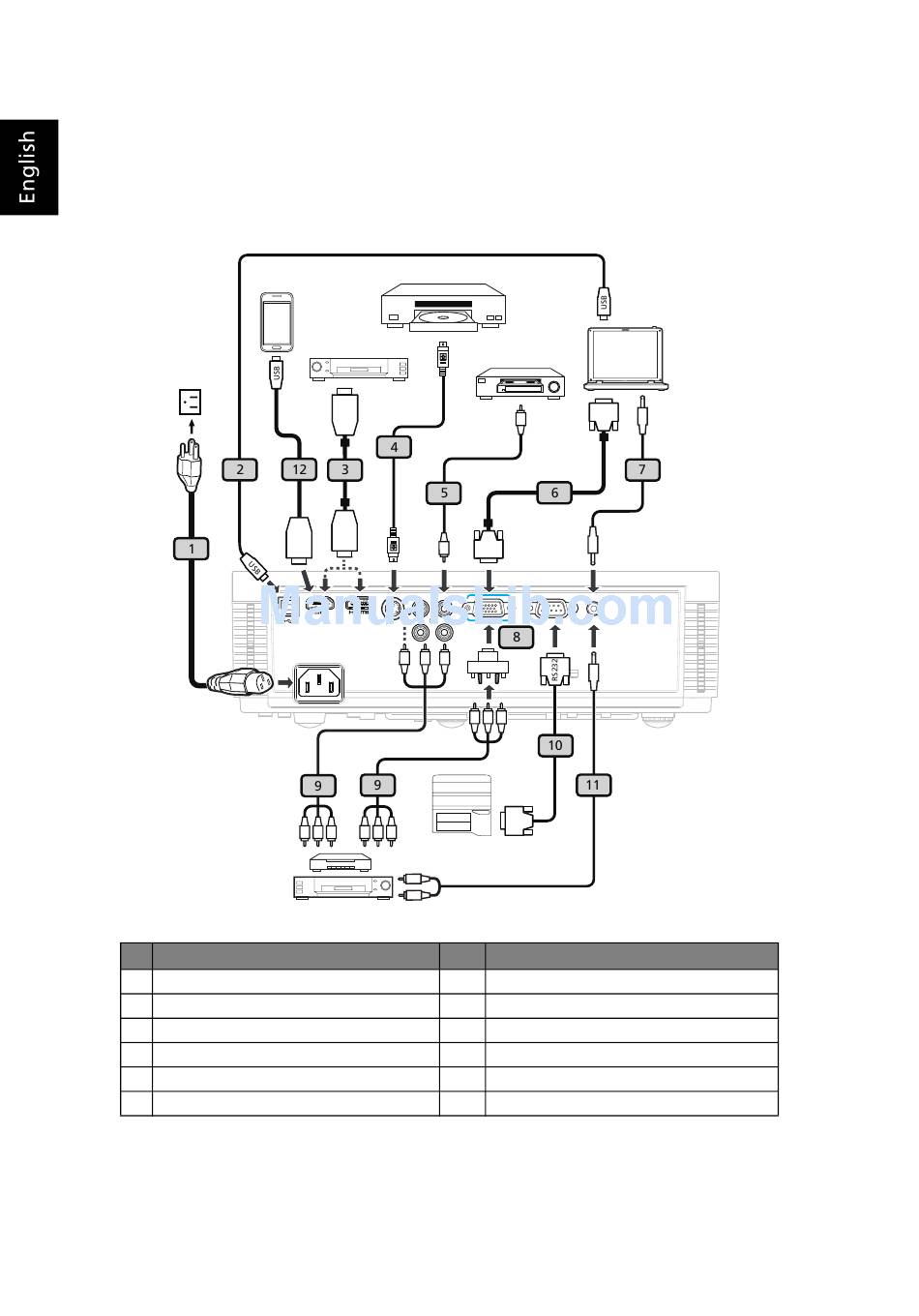

Connecting the Projector

MHL
HDMI
DVD player,
Set-up Box,
HDTV receiver
# Description
1 Power cord
2 USB cable
3 HDMI cable
4 S-Video cable
5 Composite video cable
6 VGA cable
S-Video Output
DVD player
Video Output
HDMI
HDMI
Y
2 1
(MHL)
Y VIDEO
S VIDEO
Pb Pr
G B R
HDTV adapter
R B G
R B G R B G
RS232
R
W
#
7
8
9
10
11
12
D-Sub
Y
D-Sub
VGA IN
RS 232 AUDIO IN
RS232
Description
Audio cable Jack/Jack
VGA to component/HDTV adapter
3 RCA component cable
RS232 cable
Audio cable Jack/RCA
MHL cable (MicroUSB to HDMI)
