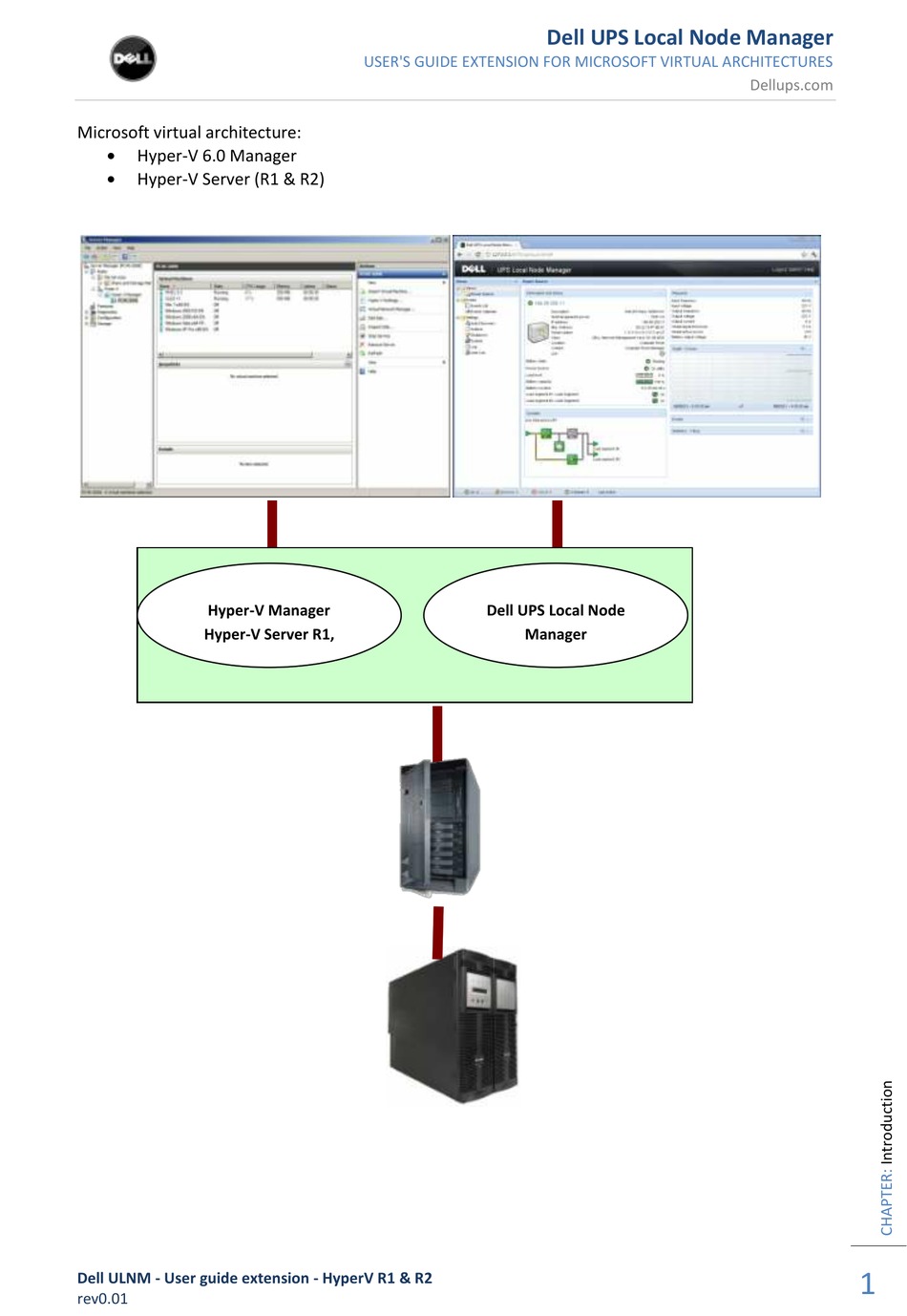

Microsoft virtual architecture:
Hyper-V 6.0 Manager
Hyper-V Server (R1 & R2)
Hyper-V Manager
Hyper-V Server R1,
Main Operating System: 2008Enterprise R2 x64 (hosting Hyper-V)
Dell ULNM - User guide extension - HyperV R1 & R2
rev0.01
USER'S GUIDE EXTENSION FOR MICROSOFT VIRTUAL ARCHITECTURES
R2
Dell UPS Local Node Manager
Dell UPS Local Node
Manager
Dellups.com
1

Advertisement

Table of Contents
loading

Related Manuals for Dell PowerEdge UPS 500T

Summary of Contents for Dell PowerEdge UPS 500T

  • Page 1  Hyper-V 6.0 Manager  Hyper-V Server (R1 & R2) Hyper-V Manager Dell UPS Local Node Hyper-V Server R1, Manager Main Operating System: 2008Enterprise R2 x64 (hosting Hyper-V) Dell ULNM - User guide extension - HyperV R1 & R2 rev0.01...

  • Page 2: Table Of Contents

    2.3. Dell Hardware architecture ......................10 2.4. Network architecture ........................10 2.5. Installing Dell ULNM on Hyper-V Server R1 & R2 and Windows Server 2008 R2 (Hyper-V Manager) 2.6. Uninstalling Dell ULNM ........................12 2.7. Useful commands ..........................12 2.8.

  • Page 3: Introduction

     Dynamic management of virtual machines configuration, with a personalized script. This manual will guide you through the installation and configuration process of the Dell UPS Local Node Manager on Microsoft Hyper-V (or Hyper-V Server) platform. Dell tested virtualization security in a redundant power supply configuration, for system shutdown, electrical shutdown, and reboot.

  • Page 4: Installation

    Dellups.com 2. INSTALLATION This section will guide the user through the installation process of Dell UPS Local Node Manager on Microsoft Hyper-V architecture. Use of Dell UPS Local Node Manager will allow continuity of the electrical power supply to the end user’s internal power system.

  • Page 5: Microsoft Hyper-V Manager / Hyper-V Server R1 & R2 Configuration

    Open Hyper-V console and select the virtual machine where the service was installed.   Do a Right-click. Choose Settings Integration Services.  Check the box "Operating System shutdown". Dell ULNM - User guide extension - HyperV R1 & R2 rev0.01...
  • Page 6 Dell UPS Local Node Manager USER'S GUIDE EXTENSION FOR MICROSOFT VIRTUAL ARCHITECTURES Dellups.com This configuration is illustrated on the following screenshot: Dell ULNM - User guide extension - HyperV R1 & R2 rev0.01...
  • Page 7 Automatic Start Action Choose the appropriate parameters for the virtual machine that coincide with the start rules of the specific application. This configuration is illustrated on the following screenshot: Dell ULNM - User guide extension - HyperV R1 & R2 rev0.01...
  • Page 8 Automatic Stop Actions, o Choose the appropriate parameters for the virtual machine, to fit with shutdown rules of the specific application This configuration is illustrated on the following screenshot: Dell ULNM - User guide extension - HyperV R1 & R2 rev0.01...
  • Page 9 Dellups.com Note: With Windows Hyper-V Server, this configuration will be done remotely. MMC Microsoft console is installed on a remote computer running Windows 2008 Server or Vista SP1. Dell ULNM - User guide extension - HyperV R1 & R2 rev0.01...

  • Page 10: Dell Hardware Architecture

    Dellups.com 2.3. DELL HARDWARE ARCHITECTURE The prerequisites for Dell UPS Local Node Manager installation are described in the "Dell UPS Local Node Manager – User Guide" chapter: “Installation Prerequisites“. (http://www.dellups.com/) For UPS systems compatibility, please refer to the chapter “Appendix -> Compatibility List”...
  • Page 11 To start the installer in graphical mode, type:  ulnm_win_x_xx_xxx.exe –install To start ULNM, type:  ulnm_win_x_xx_xxx.exe To start the installer in silent mode, type:  ulnm_win_x_xx_xxx.exe –install –silent Dell ULNM - User guide extension - HyperV R1 & R2 rev0.01...

  • Page 12: Uninstalling Dell Ulnm

    At the end of the installation it is possible to access to the Dell ULNM web interface. 2.6. UNINSTALLING DELL ULNM To uninstall Dell ULNM from the DOS Window, go to the directory where you have installed the Dell USP Local Node Manager. (Default installation path is C:\Program...

  • Page 13: Alarms Reception

    When there is a UPS status change, a notification window displays the alarms: 2.9. USING DELL ULNM WITH HYPER-V SERVER R1 & R2 OR HYPER-V MANAGER After DELL ULNM installation, follow these 3 steps to use DELL ULNM or refer to the DELL ULNM User Guide.

  • Page 14: Step 2 (Configuration)

    The discovered UPS connected through (RS232 or USB) is automatically assigned as the Power source (the Status icon is Green => Networked UPSs through broadcast within a few seconds (Dell UPS Management Card H910P) The discovered UPS connected through (Network) are not automatically assigned as the...

  • Page 15: Step 3 (Operation)

     The Views Power Source menu item (optional) allows you to supervise the current state of the UPS that powers the server running Dell UPS Local Node Manager.  The Events Event List view allows you to view the device events.

  • Page 16: Appendix

    USER'S GUIDE EXTENSION FOR MICROSOFT VIRTUAL ARCHITECTURES Dellups.com 3. APPENDIX 3.1. REFERENCES  USP Local Node Manager USER GUIDE: http://www.dellups.com  Dell software download page: http://www.dellups.com  Microsoft Hyper-V reference documents: http://www.microsoft.com/windowsserver2008/en/us/hyperv.aspx Dell ULNM - User guide extension - HyperV R1 & R2 rev0.01...
