Dell PowerEdge UPS 500T Network Management Card Setup

1
2
book.book Page 1 Monday, May 5, 2008 11:15 AM 4
Safety, Environmental, and
Regulatory Information
EXAMPLE

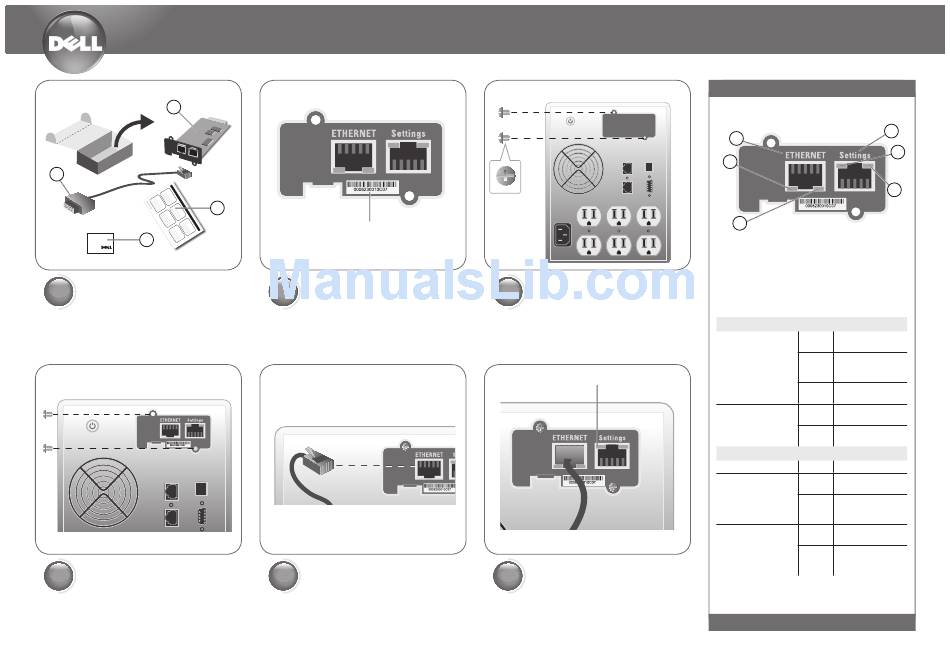

Verify the package contents
1
1. Network Management Card
2. Serial cable
3. Setup instructions
4. Safety, Enviromental, and
Regulatory Information
Insert and secure the card
4
with the retaining screws
w w w . d e l l . c o m | s u p p o r t . d e l l . c o m

Setting Up Your Network Management Card

3
MAC address
Note the MAC address on the card
2
Connect an Ethernet cable to the card
5
and to the network (not supplied)
NOTE: You can set the card parameters
via the Settings Port even if the network is
not connected
Remove the cover from the
3
UPS communication bay
UPS Data LED flashing
ACT 100M UPS Data RS232
Wait approximately two
6
minutes until the UPS Data
LED flashes regularly,
indicating normal operation

About Your Network Management Card

4
1
2
3
1. Ethernet port (10/100BaseT) 4. Settings port
2. ACT LED (green) 5. UPS Data LED (green)
3. 100M LED (orange) 6. RS232 LED (orange)
Ethernet Port (10/100BaseT)
ACT LED (green) Off Card is not connected
to the network
On Card is connected
to the network,
but no activity
Flashing Port is sending/
receiving
100M LED (orange) Off Port is operating
at 10 Mbits/s
On Port is operating
at 100 Mbits/s
Settings Port
UPS Data LED (green) Off Card is starting
On Card is communicating
with the UPS
Flashing Normal operation;
communication with
the UPS is operational
RS232 LED (orange) On Configuration menu
is activated
Off Normal operation;
Configuration menu
is not activated
5
6
