Dell PowerVault NX3300 Owner's Manual

Owner's manual
Hide thumbs Also See for PowerVault NX3300:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Troubleshooting Manual, Administrator's Manual

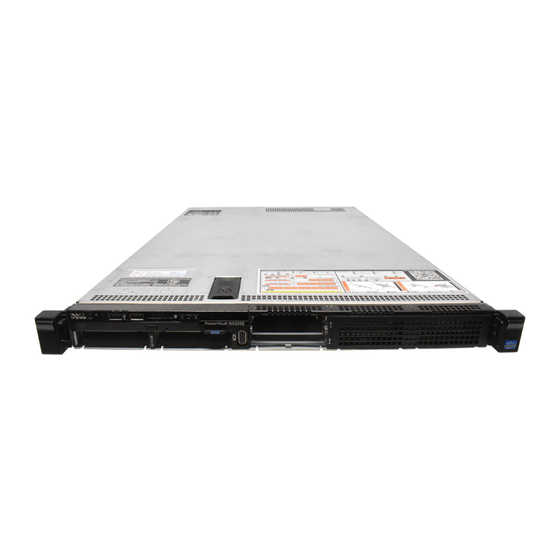

Dell PowerVault NX3300
Owner's Manual
Regulatory Model: E16S Series
Regulatory Type: E16S001

Advertisement

Table of Contents
loading

Related Manuals for Dell PowerVault NX3300

Summary of Contents for Dell PowerVault NX3300

  • Page 1 Dell PowerVault NX3300 Owner's Manual Regulatory Model: E16S Series Regulatory Type: E16S001...

  • Page 2: Notes, Cautions, And Warnings

    CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. WARNING: A WARNING indicates a potential for property damage, personal injury, or death. © 2012 Dell Inc. Trademarks used in this text: Dell , the Dell logo, Dell Precision , OptiPlex , Latitude...

  • Page 3: Table Of Contents

    Contents Notes, Cautions, and Warnings....................2 1 About Your System........................9 ........................9 Front Panel Features And Indicators ..............................10 LCD Panel Features ..............................11 Home Screen ..............................11 Setup Menu ...............................12 View Menu ..............................12 Diagnostic Indicators ..........................13 Hard-Drive Indicator Patterns ........................14 Back-Panel Features And Indicators ..............................15 NIC Indicator Codes ............................15...
  • Page 4 ....................30 Operating With A Setup Password Enabled ...........................30 Entering The UEFI Boot Manager ......................31 Using The Boot Manager Navigation Keys ............................31 Boot Manager Screen ...............................32 UEFI Boot Menu ..........................32 Embedded System Management ..............................32 iDRAC Settings Utility ........................32 Entering The iDRAC Settings Utility 3 Installing System Components....................33 ..............................33 Recommended Tools...
  • Page 5 ......................52 Expansion Cards And Expansion-Card Risers ......................52 Expansion Card Installation Guidelines ..........................53 Removing An Expansion Card ...........................54 Installing An Expansion Card ........................55 Removing Expansion-Card Risers ........................56 Installing Expansion-Card Risers ................................56 SD vFlash Card ...........................57 Replacing An SD vFlash Card ............................57 Internal Dual SD Module ......................57 Removing The Internal Dual SD Module...
  • Page 6 Troubleshooting Expansion Cards ...........................96 Troubleshooting Processors 5 Using System Diagnostics.......................97 ............................97 Dell Online Diagnostics ........................97 Dell Embedded System Diagnostics ..................97 When To Use The Embedded System Diagnostics ....................97 Running The Embedded System Diagnostics ..........................98 System Diagnostic Controls 6 Jumpers And Connectors......................99 ..........................99...
  • Page 7 7 Technical Specifications.......................103 8 System Messages........................107 ..............................107 LCD Messages ..........................107 Viewing LCD Messages ..........................107 Removing LCD Messages ............................107 System Error Messages ...............................121 Warning Messages ............................121 Diagnostic Messages ..............................121 Alert Messages 9 Getting Help..........................123 ..............................123 Contacting Dell...

  • Page 9: About Your System

    About Your System Front Panel Features And Indicators Figure 1. Front-Panel Features and Indicators Item Indicator, Button, or Icon Description Connector Power-on indicator, power The power-on indicator lights when the system power is button on. The power button controls the power supply output to the system.

  • Page 10: Lcd Panel Features

    Item Indicator, Button, or Icon Description Connector NOTE: DVD devices are data only. vFlash media card slot Allows you to insert a vFlash media card. LCD menu buttons Allows you to navigate the control panel LCD menu. LCD panel Displays system ID, status information, and system error messages.

  • Page 11: Home Screen

    Item Button Description Left Moves the cursor back in one-step increments. Select Selects the menu item highlighted by the cursor. Right Moves the cursor forward in one-step increments. During message scrolling: • Press once to increase scrolling speed • Press again to stop •...

  • Page 12: View Menu

    View Menu NOTE: When you select an option in the View menu, you must confirm the option before proceeding to the next action. Option Description iDRAC IP Displays the IPv4 or IPv6 addresses for the iDRAC7. Addresses include DNS (Primary and Secondary), Gateway, IP, and Subnet (IPv6 does not have Subnet).

  • Page 13: Hard-Drive Indicator Patterns

    Memory indicator Condition Corrective Action The indicator blinks amber if a See the system event log or system messages for the location of the failed memory error occurs. memory. Reinstall the memory device. If the problem persists, see Getting Help. Hard-Drive Indicator Patterns Figure 3.

  • Page 14: Back-Panel Features And Indicators

    Back-Panel Features And Indicators Figure 4. Back-Panel Features and Indicators Item Indicator, Button, or Icon Description Connector System identification button The identification buttons on the front and back panels can be used to locate a particular system within a rack. When one of these buttons is pressed, the LCD panel on the front and the system status indicator on the back blink until one of the buttons is pressed again.

  • Page 15: Nic Indicator Codes

    Item Indicator, Button, or Icon Description Connector Power supply (PSU1) 495 W, 750 W, or 1100 W Power supply (PSU2) 1100 W (when available) NIC Indicator Codes Figure 5. NIC Indicator 1. link indicator 2. activity indicator Indicator Indicator Code Link and activity indicators are off The NIC is not connected to the network.
  • Page 16 1. AC power supply status indicator/handle Figure 7. DC Power Supply Status Indicator 1. DC power supply status indicator Power Condition Indicator Pattern Not lit Power is not connected. Green The handle/LED indicator lights green indicating that a valid power source is connected to the power supply and that the power supply is operational.

  • Page 17: Other Information You May Need

    • For the full name of an abbreviation or acronym used in this document, see the Glossary at support.dell.com/ manuals. NOTE: Always check for updates on support.dell.com/manuals and read the updates first because they often...

  • Page 19: Using The System Setup And Boot Manager

    Enters the System Setup. <F10> Enters System Services, which opens the Dell Lifecycle Controller 2 (LC2). The Dell LC2 supports systems management features such as operating system deployment, hardware diagnostics, platform updates, and platform configuration, using a graphical user interface. The exact LC2 feature set is determined by the iDRAC license purchased.

  • Page 20: Entering System Setup

    NOTE: Operating systems must be UEFI-compatible to be installed from the UEFI boot mode. DOS and 32-bit operating systems do not support UEFI and can only be installed from the BIOS boot mode. NOTE: For the latest information on supported operating systems, go to dell.com/ossupport. Entering System Setup Turn on or restart your system.

  • Page 21: System Setup Main Screen

    System Setup Main Screen NOTE: Press <Alt><F> to reset the BIOS or UEFI settings to their default settings. Menu Item Description System BIOS This option is used to view and configure BIOS settings. iDRAC Settings This option is used to view and configure iDRAC settings. Device Settings This option is used to view and configure device settings.

  • Page 22: Memory Settings Screen

    Menu Item Description System Service Tag Displays the system Service Tag. System Manufacturer Displays the name of system manufacturer. System Manufacturer Contact Information Displays the contact information of the system manufacturer. Memory Settings Screen Menu Item Description System Memory Size Displays the amount of memory installed in the system.

  • Page 23: Sata Settings Screen

    Menu Item Description Alternate RTID Allows you to allocate more RTIDs to the remote socket increasing cache performance (Requestor Transaction between the sockets or work in normal mode for NUMA. By default, the Alternate RTID ID) Setting (Requestor Transaction ID) Setting is set to Disabled. Virtualization Technology Allows you to enable or disable the additional hardware capabilities provided for virtualization.

  • Page 24: Boot Settings Screen

    Menu Item Description Port E Auto enables BIOS support for the device attached to SATA port E. Off disables BIOS support for the device. By default, Port E is set to Auto. Port F Auto enables BIOS support for the device attached to SATA port F. Off disables BIOS support for the device.

  • Page 25: Serial Communications Screen

    Menu Item Description NOTE: This option is displayed only if IDSDM is installed on the system board. Internal SD Card If set to Mirror mode, data is written on both SD cards. If any one of the SD card fails, data is Redundancy written to the active SD card.

  • Page 26: System Profile Settings Screen

    Custom. By default, the System Profile option is set to Performance Per Watt Optimized (DAPC). DAPC is Dell Active Power Controller. NOTE: The following parameters are available only when the System Profile is set to Custom.

  • Page 27: System Security Screen

    BIOS updates, it is recommended to set this field to Disabled. By default, the BIOS Update Control option is set to Unlocked. NOTE: BIOS updates using Dell Update Package are not affected by this option. Power Button Allows you to enable or disable the power button on the front of the system.

  • Page 28: Miscellaneous Settings

    Miscellaneous Settings Menu Item Description System Time Allows you to set the time on the system. System Date Allows you to set the date on the system. Asset Tag Displays the asset tag and allows you to modify it for security and tracking purposes. Keyboard NumLock Allows you to set whether the system boots with the NumLock enabled or disabled.

  • Page 29: Deleting Or Changing An Existing System And/Or Setup Password

    To enter System Setup, press <F2> immediately after a power-on or reboot. In the System Setup Main Menu, select System BIOS and press <Enter>. The System BIOS screen is displayed. In the System BIOS screen, select System Security and press <Enter>. The System Security screen is displayed.

  • Page 30: Using Your System Password To Secure Your System

    Using Your System Password To Secure Your System NOTE: If you have assigned a setup password, the system accepts your setup password as an alternate system password. Turn on or reboot your system. Type your password and press <Enter>. When Password Status is Locked, type the password and press <Enter> when prompted at reboot. If an incorrect system password is entered, the system displays a message and prompts you to re-enter your password.

  • Page 31: Using The Boot Manager Navigation Keys

    Displays a list of the drivers installed on the system and their health status. Launch System Enables you to access the System Setup. Setup System Utilities Enables you to access the BIOS Update File Explorer, run the Dell Diagnostics program, and reboot the system.

  • Page 32: Uefi Boot Menu

    Sets a one-time boot option not included in the boot option list. Embedded System Management The Dell Lifecycle Controller provides advanced embedded systems management throughout the server’s lifecycle. The Lifecycle Controller can be started during the boot sequence and can function independently of the operating system.

  • Page 33: Installing System Components

    Installing System Components Recommended Tools You may need the following items to perform the procedures in this section: • Key to the system keylock • #1 and #2 Phillips screwdrivers • T10 and T15 Torx screwdrivers • Wrist grounding strap connected to ground Following tools are required for assembling cables for a DC power supply unit (PSU), when available: •...

  • Page 34: Installing The Front Bezel

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 35: Closing The System

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 36: Cooling Shroud

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 37: Installing The Cooling Shroud

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.
  • Page 38 The system contains 24 memory sockets split into two sets of 12 sockets, one set per processor. Each 12-socket set is organized into four channels. In each channel, the release levers of the first socket are marked white, the second socket black, and the third socket green.

  • Page 39: General Memory Module Installation Guidelines

    Processor 2 channel 0: slots B1, B5, and B9 channel 1: slots B2, B6, and B10 channel 2: slots B3, B7, and B11 channel 3: slots B4, B8, and B12 The following table shows the memory populations and operating frequencies for the supported configurations. DIMM Type DIMMs Populated/ Operating Frequency (in MT/s)

  • Page 40: Mode-Specific Guidelines

    • Memory modules of different sizes can be mixed provided that other memory population rules are followed (for example, 2 GB and 4 GB memory modules can be mixed). • Populate four DIMMs per processor (one DIMM per channel) at a time to maximize performance. •...

  • Page 41: Sample Memory Configurations

    • Memory modules must be identical in size, speed, and technology. • DIMMs installed in memory sockets with white release tabs must be identical and similar rule applies for sockets with black and green release tabs. This ensures that identical DIMMs are installed in matched pairs - for example, A1 with A2, A3 with A4, A5 with A6, and so on.
  • Page 42 System Capacity DIMM Size (in Number of DIMM Rank, Organization, DIMM Slot Population (in GB) DIMMs and Frequency NOTE: 16 GB DIMMs must be installed in slots numbered A1, A2, A3, A4, A5, A6, A7, and A8 and 8 GB DIMMs must be installed in slots A9 and A11.

  • Page 43: Removing Memory Modules

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 44: Installing Memory Modules

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 45: Hard Drives

    Locate the memory-module sockets. Press the ejectors on the memory module socket down and out to allow the memory module to be inserted into the socket. If a memory module blank is installed in the socket, remove it. NOTE: Retain removed memory-module blank(s) for future use. CAUTION: Handle each memory module only on either card edge, making sure not to touch the middle of the memory module.

  • Page 46: Installing A 2.5 Inch Hard-Drive Blank

    Figure 14. Removing and Installing a 2.5 Inch Hard-Drive Blank 1. hard-drive blank 2. release button Installing A 2.5 Inch Hard-Drive Blank If installed, remove the front bezel. Insert the hard-drive blank into the hard-drive slot until the release button clicks into place. If applicable, install the front bezel.

  • Page 47: Installing A Hot-Swap Hard Drive

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 48: Removing A Hard Drive From A Hard-Drive Carrier

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 49: Optical Drive

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 50: Installing The Optical Drive

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 51: Installing A Cooling Fan

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 52: Replacing The Internal Usb Key

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 53: Removing An Expansion Card

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 54: Installing An Expansion Card

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 55: Removing Expansion-Card Risers

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 56: Installing Expansion-Card Risers

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 57: Replacing An Sd Vflash Card

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 58: Installing The Internal Dual Sd Module

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 59: Internal Sd Card

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 60: Removing The Integrated Storage Controller

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 61: Installing The Integrated Storage Controller

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 62: Installing The Network Daughter Card

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 63: Removing A Processor

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.
  • Page 64 Figure 26. Removing and Installing the Heat Sink 1. heat sink 2. retention sockets (2) 3. retention screws (2) 4. processor CAUTION: The processor is held in its socket under strong pressure. Be aware that the release lever can spring up suddenly if not firmly grasped.
  • Page 65 Figure 27. Processor Shield Opening and Closing Lever Sequence 1. close-lock symbol 2. processor socket-release lever 3. processor 4. processor socket-release lever 5. open-lock symbol 10. Rotate the processor shield upward and out of the way. CAUTION: The socket pins are fragile and can be permanently damaged. Be careful not to bend the pins in the socket when removing the processor out of the socket.

  • Page 66: Installing A Processor

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 67: Power Supplies

    Open the system. Remove the cooling shroud. WARNING: The heat sink and processor are hot to the touch for some time after the system has been powered down. Allow the heat sink and processor to cool before handling them. CAUTION: Never remove the heat sink from a processor unless you intend to remove the processor. The heat sink is necessary to maintain proper thermal conditions.

  • Page 68: Hot Spare Feature

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 69: Installing An Ac Power Supply

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 70: Wiring Instructions For A Dc Power Supply

    DC power and to safety grounds. Do not attempt connecting to DC power or installing grounds yourself. All electrical wiring must comply with applicable local or national codes and practices. Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow all safety instructions that came with the product.
  • Page 71 DC power and to safety grounds. Do not attempt connecting to DC power or installing grounds yourself. All electrical wiring must comply with applicable local or national codes and practices. Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow all safety instructions that came with the product.

  • Page 72: Removing A Dc Power Supply

    DC power and to safety grounds. Do not attempt connecting to DC power or installing grounds yourself. All electrical wiring must comply with applicable local or national codes and practices. Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow all safety instructions that came with the product.

  • Page 73: Installing A Dc Power Supply

    DC power and to safety grounds. Do not attempt connecting to DC power or installing grounds yourself. All electrical wiring must comply with applicable local or national codes and practices. Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow all safety instructions that came with the product.

  • Page 74: Removing The Power Supply Blank

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.
  • Page 75 Turn off the system, including any attached peripherals, and disconnect the system from the electrical outlet and peripherals. Open the system. Press the touch points and lift the system battery cover up and away from the network daughter card cooling shroud.

  • Page 76: Hard-Drive Backplane

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.
  • Page 77 Figure 36. Removing and Installing the 2.5 Inch (x4) Hard-Drive Backplane 1. hard-drive backplane 2. backplane signal cable 3. backplane power cable 4. release tab 5. SAS A cable Figure 37. Cabling Diagram—2.5 Inch (x4) Systems...

  • Page 78: Installing The Hard-Drive Backplane

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 79: Installing The Control Panel Board

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.
  • Page 80 If installed, remove the front bezel. Turn off the system, including any attached peripherals, and disconnect the system from the electrical outlet and peripherals. Open the system. CAUTION: The display module connector is a ZIF (zero insertion force) connector. Ensure that the locking tab on the connector is released before removal and insertion.

  • Page 81: Installing The Control Panel

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 82: Installing The Vga Module

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 83: System Board

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.
  • Page 84 a. mini SAS cable connector b. metal tab c. connector on the system board Disconnect all other cables from the system board. CAUTION: Take care not to damage the system identification button while removing the system board from the chassis. Grasp the system-board holder, lift the blue release pin, slide the system board toward the front of the system, and lift the system board out of the chassis.

  • Page 85: Installing The System Board

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 87: Troubleshooting Your System

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 88: Troubleshooting A Serial I/O Device

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 89: Troubleshooting A Damaged System

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 90: Troubleshooting The System Battery

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 91: Troubleshooting Cooling Fans

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 92: Troubleshooting An Internal Usb Key

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 93: Troubleshooting An Optical Drive

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 94: Troubleshooting A Hard Drive

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 95: Troubleshooting Expansion Cards

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 96: Troubleshooting Processors

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 97: Using System Diagnostics

    Dell Online Diagnostics Dell Online Diagnostics, a stand-alone suite of diagnostic programs or test modules, allows you to run diagnostic tests on the systems in a production environment, and helps you ensure maximum uptime of your systems. Online Diagnostics allows you to run diagnostic tests on chassis and storage components such as hard drives, physical memory, and network interface cards (NICs).

  • Page 98: System Diagnostic Controls

    Displays a time-stamped log of the results of all tests run on the system. This is displayed if at least one event description is recorded. Dell Enhanced Pre-boot System Assessment User Guide at For information about embedded system diagnostics, see the...

  • Page 99: Jumpers And Connectors

    Jumpers And Connectors System Board Jumper Settings For information on resetting the password jumper to disable a password, see Disabling A Forgotten Password. Table 5. System Board Jumper Settings Jumper Setting Description PWRD_EN The password feature is enabled (pins 4–6). (default) The password feature is disabled (pins 2–4).

  • Page 100: System Board Connectors

    System Board Connectors Figure 42. System Board Connectors and Jumpers Item Connector Description J_PS2 PSU 2 power connector J_SATA_CD Optical drive SATA connector J_BP0 Hard-drive backplane power connector J_TBU Tape backup unit power connector J_PS1 PSU 1 power connector J_RIPS Redundant internal persistent storage unit connector J_NDC...
  • Page 101 Item Connector Description J_VIDEO_REAR Video connector J_COM1 Serial connector J_IDRAC_RJ45 iDRAC7 connector J_CYC System identification connector CYC_ID System identification button J_RISER_2A Riser 2 connector J_RISER_1A Riser 1 connector TOUCH POINT Touch point for holding system board J_RISER_2B Riser 2 connector J_RISER_1B Riser 1 connector J_STORAGE...

  • Page 102: Disabling A Forgotten Password

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 103: Technical Specifications

    Technical Specifications Processor Processor type One or two Intel Xeon processor E5-2600 product family Expansion Bus Bus type PCI Express Generation 3 Expansion slots using riser card: Riser 1 (Slot 1) One half-height, half-length x8 link (Slot 2) One half-height, half-length x16 link Riser 2 (Slot 1) One half-height, half-length x8 link or one half- height, half-length x16 link...
  • Page 104 Up to four 2.5 inch, internal, hot-swappable SAS, SATA, or Nearline SAS hard drives NOTE: Four–hard-drive systems support software RAID. For more information on software RAID, see the Dell PowerEdge RAID Controller (PERC) documentation at support.dell.com/manuals. Optical drive One optional SATA DVD-ROM drive or DVD+/-RW drive NOTE: DVD devices are data only.
  • Page 105 3050 m (10,000 ft). • GPU is not supported • 130 W (4 core) and 135 W processor is not supported • Redundant power supplies are required • Non Dell qualified peripheral cards and/or peripheral cards greater than 25 W are not supported...

  • Page 107: System Messages

    System Messages LCD Messages NOTE: Applicable only if your system has an LCD display. The LCD messages consist of brief text messages that refer to events recorded in the System Event Log (SEL). For information on the SEL and configuring system management settings, see the systems management software documentation.
  • Page 108 Error Code Message Information AMP0302 Message The system board < name > current is greater than the upper warning threshold. name > current is outside of the optimum range. Details System board < Action 1. Review system power policy. 2. Check system logs for power related failures. 3.
  • Page 109 Error Code Message Information BAT0002 Message The system board battery has failed. LCD Message The system board battery has failed. Check battery. Details The system board battery is either missing or bad. Action Getting Help. BAT0017 name > battery has failed. Message The <...
  • Page 110 Error Code Message Information CPU0204 Message CPU < number > < name > voltage is outside of range. number > < name > voltage is outside of range. Re-seat CPU. LCD Message CPU < Details Voltages outside the allowable range may damage electrical components or may cause the system to shutdown.
  • Page 111 Error Code Message Information 4. Reapply input power and turn on the system. 5. If the issue persists, see Getting Help. CPU0703 Message CPU bus initialization error detected. LCD Message CPU bus initialization error detected. Power cycle system. Details System event log and operating system logs may indicate that the exception is external to the processor.
  • Page 112 Error Code Message Information Details Fan has failed. Action Remove and reinstall failed fans or install additional fans. HWC1001 name > is absent. Message The < name > is absent. Check hardware. LCD Message The < Details The absent device may be necessary for proper operation. System functionality may be degraded.
  • Page 113 Error Code Message Information Action Check the memory configuration. Re-seat the memory modules. If the issue persists, Getting Help. MEM0701 Message Correctable memory error rate exceeded for < location >. Details The memory may not be operational. This an early indicator of a possible future uncorrectable error.
  • Page 114 Error Code Message Information Action Cycle input power, update component drivers, if device is removable, reinstall the device. PCI1308 Message A PCI parity error was detected on a component at bus < bus >device< device >function func >. < LCD Message PCI parity error on bus < bus >...
  • Page 115 Error Code Message Information Action Remove and re-seat the failed disk. If the issue persists, see Getting Help. PDR1016 number > is removed from disk drive bay < bay >. Message Drive < number > removed from disk drive bay < bay >. Check drive. LCD Message Drive <...
  • Page 116 Error Code Message Information LCD Message Power supply < number > is incorrectly configured. Check PSU. Details Power supplies should be of the same input type and power rating. Action Install matched power supplies and review proper configuration in this manual. PSU0016 number >...
  • Page 117 Error Code Message Information PSU0035 Message An over voltage fault detected on power supply < number >. number >. Check PSU. LCD Message Over voltage fault on PSU < Action Check input power or reinstall the power supply. If the issue persists, see Getting Help.
  • Page 118 Error Code Message Information Action Check the event log for power supply failures. Review system configuration and power consumption and upgrade or install power supplies accordingly. PWR1005 Message The system performance degraded because the user-defined power capacity has changed. Details The user-defined power settings have affected system operation.
  • Page 119 Error Code Message Information Action Reinstall the SD module. RFM2004 name >. Message Failure detected on Internal Dual SD Module < name > failed. Check SD Card. LCD Message Internal Dual SD Module < Details The SD card module is installed but improperly configured or failed to initialize. Action Reinstall the SD module and remove and reinstall SD cards.
  • Page 120 Error Code Message Information SEL1204 Message An unknown system hardware failure detected. LCD Message Unknown system hardware failure. Details If the system event log failed to initialize, platform status and failure events are not captured. Some management software do not report platform exceptions. Action Re-configure system to the minimum supported configuration.

  • Page 121: Warning Messages

    Warning Messages A warning message alerts you to a possible problem and prompts you to respond before the system continues a task. For example, before you format a hard drive, a message warns you that you may lose all data on the hard drive. Warning messages usually interrupt the task and require you to respond by typing y (yes) or n (no).

  • Page 123: Getting Help

    Visit support.dell.com. Select your support category. If you are not a U.S. customer, select your country code at the bottom of the support.dell.com page, or select All to see more choices. Select the appropriate service or support link based on your need.

Table of Contents
