For Models:
For Models:
HRV 1500 IFD
HRV 1500 SFD
HRV 1500 EFD
HRV 1500 SFDE
a
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
_______________________________
Do Not Attempt Installing Unit Without First Reading Entire Manual
Note: Due to ongoing research and product development, specifications,
ratings and dimensions are subject to change with notice

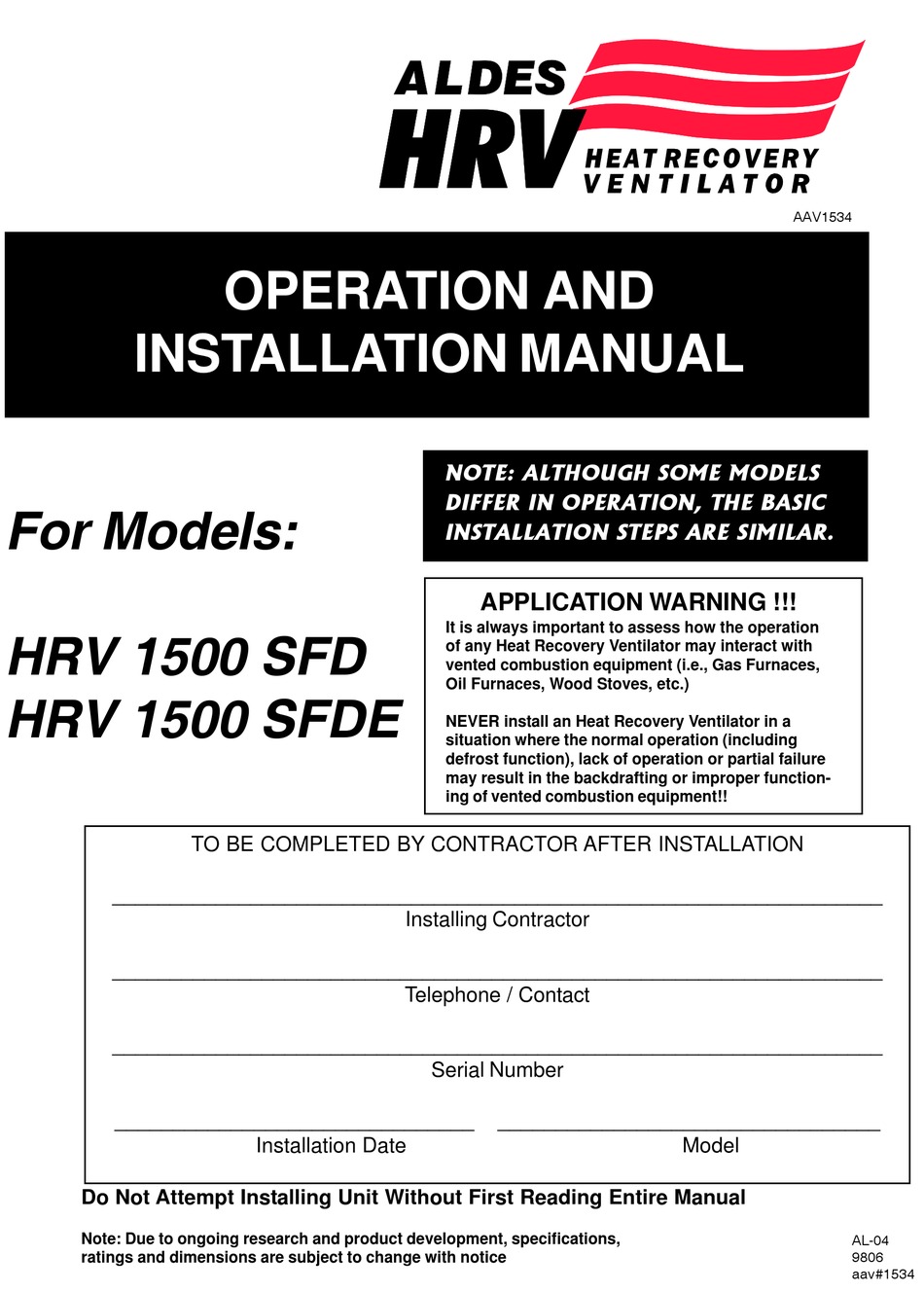

OPERATION AND
INSTALLATION MANUAL
TO BE COMPLETED BY CONTRACTOR AFTER INSTALLATION
Installation Date
NOTE: ALTHOUGH SOME MODELS
DIFFER IN OPERATION, THE BASIC
INSTALLATION STEPS ARE SIMILAR.
APPLICATION WARNING !!!
It is always important to assess how the operation
of any Heat Recovery Ventilator may interact with
vented combustion equipment (i.e., Gas Furnaces,
Oil Furnaces, Wood Stoves, etc.)
NEVER install an Heat Recovery Ventilator in a
situation where the normal operation (including
defrost function), lack of operation or partial failure
may result in the backdrafting or improper function-
ing of vented combustion equipment!!
Installing Contractor
Telephone / Contact
Serial Number
_________________________________
AAV1534
Model
AL-04
9806
aav#1534
Advertisement
Table of Contents
Related Manuals for American Aldes 1500 SFDE
Summary of Contents for American Aldes 1500 SFDE
-
Page 1: Cover & Installation Information
INSTALLATION MANUAL For Models: For Models: HRV 1500 IFD HRV 1500 SFD HRV 1500 EFD HRV 1500 SFDE TO BE COMPLETED BY CONTRACTOR AFTER INSTALLATION ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ _______________________________ Do Not Attempt Installing Unit Without First Reading Entire Manual Note: Due to ongoing research and product development, specifications,... -
Page 2: Table Of Contents
INTRODUCTION GENERAL This Heat Recovery Ventilator (HRV) is designed to provide fresh air into the building while exhaust- ing an equal amount of stale air. During the winter months, the incoming cold fresh air is warmed by utilizing the heat recovered from the stale air be- fore it is exhausted to the outdoors. -
Page 3: Engineering Data
Engineering Data SPECIFICATIONS AIRFLOW 1500cfm (705 L/s) at 1.0”wg ESP. PERFORMANCE 65% effective at 1500 cfm (705 L/s). CORES Six patented aluminum heat recovery cores arranged for efficient cross-flow ventilation. MOTORS Two single shaft ECM variable speed, 208/240V, 9.1 Amps, 1 ph, 1 hp. -
Page 4: Engineering Data
28-885 3 Speed Control inches SFDE 20 16.5 All units conform to CSA and UL standards WARRANTY All units carry a 15 year warranty on the heat recovery cores and a 2 year replacement parts warranty. Model HRV 1500 SFDE 69.5 14.5 46.5... -
Page 5: Function And Controls
Function & Controls Basic Functions Speed control is obtained by powering 24V to one of the designated speed taps. Example: A jumper between the R terminal and the G terminal will result in low speed operation. Optional Speed Control Part #28 885 Optional DET Timer Part #28-879... -
Page 6: Additional Features
Additional Features HRV 1500 SFD or SFDE Speed Selection The HRV 1500 SFD and HRV 1500 SFDE are equipped with ECM motors that can be programmed to maintain various different airflows. The HRV 1500 SFD and HRV 1500 SFDE have three selectable speeds (High medium and low). Each of these speeds can be further adjusted to obtain the desired airflow. -
Page 7: Servicing
Servicing The HRV 1500 SFD and HRV 1500 SFDE are designed to be serviceable from either side. If access to the unit will only be available from one side, the unit must be set up accord- ingly. The unit is factory shipped to be serviced from the front. -
Page 8: Mounting The 1500
Mounting the 1500 Option 1 Unit can be suspended with “U” channels and Threaded Rod Option 2 Unit can be placed on blocks (sleepers) -
Page 9: Roof Curb Assembly Instructions
Roof Curb Assembly Instructions for Model HRV 1500 SFDE Frame Assembly 1. Take one end piece (locking tabs) and one side piece (slots). Stand both pieces vertically on the floor or roof. See Figure 1. 2. Raise slightly the corner of the end piece (locking tabs) and mate with side piece (slots), ensuring that lower lock- ing tab with leading edge is through slot opening. -
Page 10: Roof Curb Detail
Roof Curb Detail for Model HRV 1500 SFDE... -
Page 11: Ducting
Outside Weatherhoods The HRV 1500 SFDE is shipped with 2 weatherhoods inside the cabinet which attach to the outer ends of the cabinet using bolts provided. The HRV 1500 SFD requires exterior hoods to be provided by the contractor. - Page 12 Ducting - Distribution Stale Air Return System The stale air return system is used to draw air from the points in the building where the worst air quality problems occur. Balancing dampers and/or adjustable grilles are rec- ommended on all return air lines which are used during installation to help balance the “draw”...
-
Page 13: The Integrated Hvac System
The Integrated HVAC System WARNING: This unit is a quiet, efficient, low pres- sure system. Special care and attention should be given if connecting this unit to any other air han- dler that may draw more air than this unit is de- signed to accommodate. -
Page 14: Pitot Tube Air Flow Balancing
Pilot Tube Air Flow Balancing - Commercial It is necessary to have balanced air flows in an HRV. The volume of air brought in from the outside must equal the volume of air exhausted by the unit. If the air flows are not properly balanced, then; •... -
Page 15: Wiring Diagram
Wiring Diagram... -
Page 16: Warranty
Heat Recovery Ventilators ♦ TWO YEAR LIMITED WARRANTY - 15 YEAR CORE WARRANTY AMERICAN ALDES VENTILATION CORPORATION warrants to the original purchaser of the Com- mercial ALDES HRV model and accessories referred to below, to be free from manufacturing defects.
