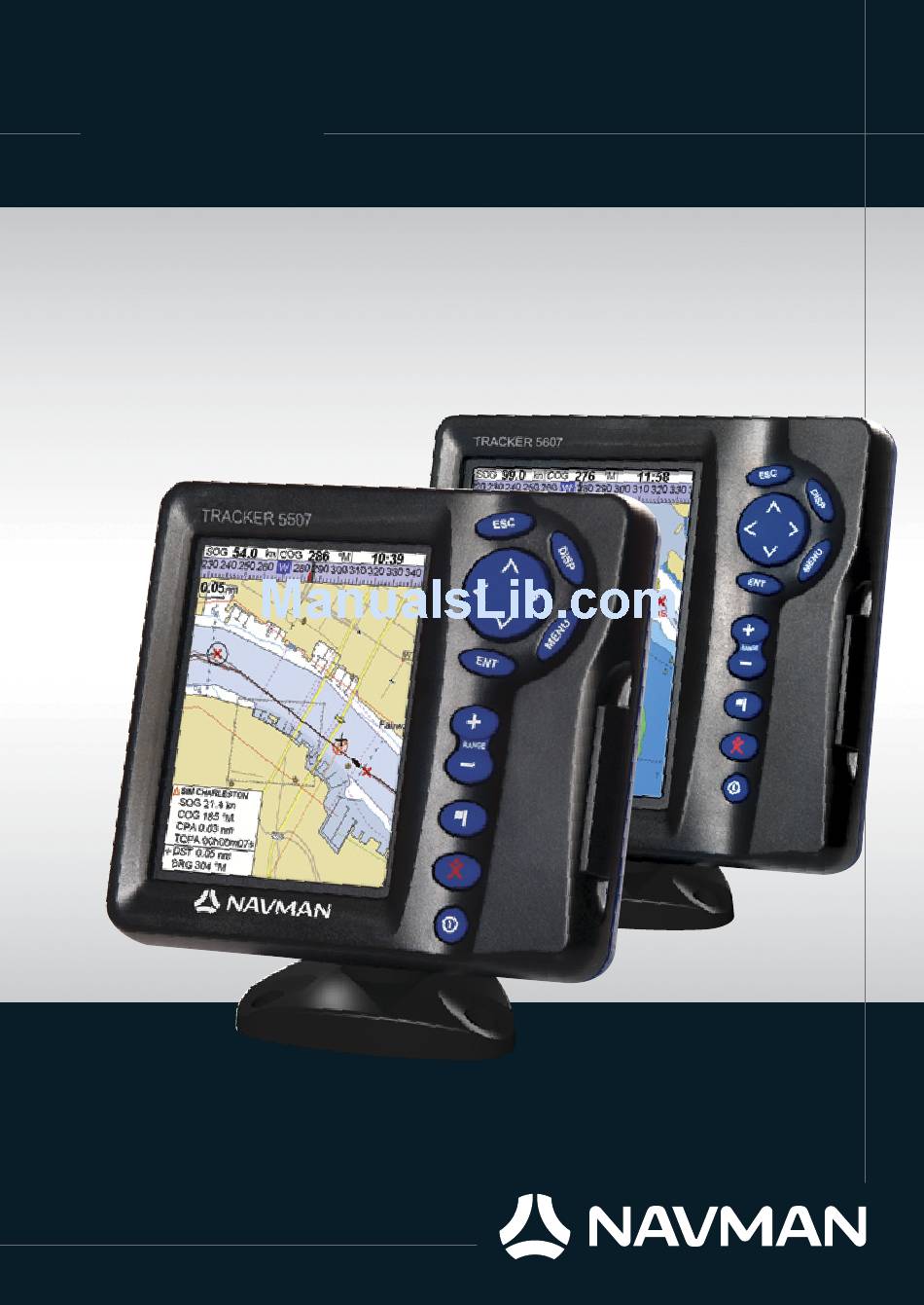

- Page 1 Tracker NAVMAN 5507/ 5607 Installation and Operation Manual Chartplot ters w w w . n a v m a n . c o m...
-
Page 3: Important Safety Information
CAUTION IMPORTANT SAFETY INFORMATION Please read carefully before installation and use. WARNING This is the safety alert symbol. It is used to alert you to DANGER potential personal injury hazards, Obey all safety messages CAUTION CAUTION that follow this symbol to avoidpossible injury or death. WARNING indicates a potentially hazardous situation which, CAUTION WARNING... - Page 4 Important It is your sole responsibility to install and use NAVMAN’s instrument and GPS antenna in a manner that will not cause accidents, personal injury or property damage. Always observe safe boating practices. The choice, location, angle and installation of the instrument & GPS antenna are critical to performance of the system as intended.
-
Page 5: Table Of Contents
7-1 Satellite window ..............32 8 Gauges window ........................... 32 NAVMAN TRACKER 5507/5607 Installation and Operation Manual... - Page 6 15-14 Setup > Simulate ............. .62 NAVMAN TRACKER 5507/5607 Installation and Operation Manual...
- Page 7 16-6 Installation: NAVMAN petrol/gasoline sensors ........67...
- Page 8 Compass at top of main displays 2-8-4 Dedicated data window Fuel Fuel computer, petrol/gasoline engine Fuel sensors Fuel computer, SmartCraft™ engines SmartCraft™ Fuel computer, diesel engine Diesel sensors What to do when you add or remove fuel 10-3 NAVMAN TRACKER 5507/5607 Installation and Operation Manual...
-
Page 9: Introduction
SmartCraft™ fuel the unit. For more information on this instrument sensors to be installed and set up. and other NAVMAN products, go to our website, SmartCraft™ engine functions require a www.navman.com. SmartCraft™ system to be installed. For information on using SmartCraft™, see the... -
Page 10: Removing And Replacing The Display Unit
Match the connector’s color to the socket display for best viewing, then hand tighten color. the knob on the mounting bracket. Remove Insert each connector and turn the locking the dust cover. collar clockwise until it is finger tight. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 11: Basic Operation
Press means to push the key for less than a second. Hold means to hold the key down. The internal beeper beeps when a key is pressed (to disable or enable the beep, see section 15-1). NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 12: Using The Menus
, the 5507/5607 stays on when you turn the boat’s ignition switch off. You can now turn the 5507/5607 off manually. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 13: Backlight And Night Mode
The 5507/5607 has user settable alarms plus an or lights operate. alarm for loss of GPS fix (see section 15-8). NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 14: Simulate Mode
Other windows are available from the More… sub menu. Note: The windows available depend on the optional sensors and instruments that are installed (see section 1-1). NAVMAN TRACKER 5507/5607 Installation and Operation Manual... - Page 15 Note: The windows below the menu divider can only be shown full screen without a data header. (see section 2-8-3). NAVMAN TRACKER 5507/5607 Installation and Operation Manual...
- Page 16 Press the active window. twice to change the active window. Chart is active Red border Gauges is active Red border NAVMAN TRACKER 5507/5607 Installation and Operation Manual...
- Page 17 5507/5607 displays the favorites list. Select where in the list to add the new favorite. If you select an existing favorite display then the new favorite will replace the existing favorite in the list. NAVMAN TRACKER 5507/5607 Installation and Operation Manual...
- Page 18 Press Tip: The data header will change when you select another display. To set a data header that NAVMAN TRACKER 5507/5607 Installation and Operation Manual...
-
Page 19: Navigation: Chart
Create a waypoint at the start of the alarm will sound to show that the boat has trip for you to navigate back to (see section 5-2-1). reached the destination (see section 15-8). NAVMAN TRACKER 5507/5607 Installation and Operation Manual... - Page 20 The 5507/5607 asks for the direction to traverse the route. Select Forward (the order the route was created) or Reverse. The 5507/5607 displays a chart with the route marked and starts navigating from the start of the route. NAVMAN TRACKER 5507/5607 Installation and Operation Manual...
-
Page 21: Chart Window
Distance and bearing of cursor from boat Land The cursor (see section 3-2-1) A typical waypoint (see section 5) Note: To change the types of information displayed on the chart (see section 15-2) NAVMAN TRACKER 5507/5607 Installation and Operation Manual... - Page 22 36° 29.841’ N or S Latitude 175° 09.012’ E or W Longitude NAVMAN TRACKER 5507/5607 Installation and Operation Manual...
-
Page 23: Distance And Bearing Calculator
(COG), speed and a specified time. To turn Projected course on and off and to set the time, see section 15-2. A Projected position Boat’s projected course Boat position NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 24: Tracks And Tracking
The track lengths are in the current distance units, for example nm. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 25: Navigation: Highway Window
A position. Note: The other choices for Waypoints are Hide A color for the waypoint symbol and name all and Show all (see section 15-2). on the chart. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 26: Waypoints Window
A new waypoint, with a default name and data, is created at the boat position. Change the waypoint data if necessary (see section 5-2-7). Select Save. Note: Waypoints can also be created when a route is created (see section 6-2-1). NAVMAN TRACKER 5507/5607 Installation and Operation Manual... - Page 27 Distance: In order of distance from the route can be deleted. boat. An arrow at at the top of a column indicates how the waypoints are sorted. 5-2-9 Navigating to a waypoint See section 3-1-2. NAVMAN TRACKER 5507/5607 Installation and Operation Manual...
-
Page 28: Navigation: Routes
To go to the routes window, press , select More , then select Routes. If there are more routes than will fit on the display, press to scroll up or down a page at a time. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 29: Managing Routes
Change the name if necessary. vi Press to complete the route iii Press Menu options while creating a route: To add a waypoint to the route and select Add. Press NAVMAN TRACKER 5507/5607 Installation and Operation Manual... - Page 30 Press select Edit. The selected route is displayed: the route name and a list of the waypoints. Edit the route as described in section 6-2-1 B, starting at step 3. NAVMAN TRACKER 5507/5607 Installation and Operation Manual...
-
Page 31: Satellites
The accuracy of the corrected GPS position is typically better than 2 to 5 m (6 to 16 ft). NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 32: Satellite Window
Select the layout to change (see above). Press and select Gauge setup. Highlight the gauge to change. Press and select the data to display in the gauge. Repeat the above step to change other gauges. Press NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 33: Data Window
Select a data item that is available on your system or select None to leave the field empty. Repeat the above step to set the other data fields. Press NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 34: Fuel Functions And Display
(see section 10-4), a red bar shows the level at which the alarm will trigger. If there are two tanks, the left bar shows the port tank, the right bar shows the starboard tank. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 35: When You Add Or Remove Fuel
On a multi-tank boat, select the tank that you are removing fuel from. Write down the value of Remaining for the tank; this is the amount of fuel originally in the tank. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 36: Low Fuel Alarm
A paddlewheel Select Paddlewheel or Pitot. sensor is more accurate than a pitot sensor at Tip: You can select a different speed sensor low speeds. during a trip. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 37: Speed Log
If the boat travels for one hour, uses 3 gallons of fuel and has 50 gallons of fuel left: Speed Economy Range Using water speed: 10 knots 10 nm 3.3 nm / gal 165 nm Using ground speed: 14 knots 14 nm 4.7 nm / gal 235 nm NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 38: Fuel Consumption Curves
RPM. Now, do not change the engine speed. Wait for about 60 seconds for the boat to stabilise, then press . Wait while the fuel computer records the data. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... - Page 39 If the blue curve has a dip, then running the curves is available in NAVMAN’s Diesel flow boat at this RPM will give the best speed for sensors installation and operation manual. the least fuel consumption. NAVMAN TRACKER 5507/5607 Installation and Operation Manual...
-
Page 40: Calibration
Repeat for the other engines. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 41: Tides Window
M Height of cursor on the tide chart The tides window requires the local time N Moon phase for moon at the current offset to be set to work correctly (see section time on the chosen date 15-12) NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 42: User Card Window
For Tracks, select the track number to existing waypoints. save. The new file is created. Change the name if required. The new file appears in the file list. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 43: Ais
To enable AIS from the system menu check the when connected to an AIS receiver. Available AIS AIS box. (see section 15-1) vessels transmitting in the local area are show on the chart when this feature is enabled. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 44: Viewing Ais Vessels
(See section 15-8 for setting the place the cursor over an AIS vessel for at least two dangerous vessel alarm) seconds and press A dangerous vessel is indicated on the chart by a red circle around the icon. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 45: Ais Windows
Safety msgs (rx) list will store up Instrument switches to chart window, with to 10 messages. The oldest message is replaced the selected vessel position in the middle. when the list is full. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 46: Dsc/Buddy Track Windows
Distress: The position is the distress waypoint, Buddy track: The position is where the boat which is where the boat was when it sent the was when your radio last polled the boat. distress message. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 47: Using The Windows
Delete any boat waypoint manually (see section 5-2-5). Buddy track boats automatically disappear from the Buddy track window when your DSC radio can not pick up their signal. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 48: Setting Up The 5507/5607
The Setup menu options are explained in the following sections. Section 2-1 describes how to set or change data in the setup menus. The setup data available will depend on the optional sensors and instruments installed. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... - Page 49 Track Favorites (see 15-3) (see 15-4) (see 15-5) (see 15-13) Logs Alarms Units (see 15-6) (see 15-7) (see 15-8) (see 15-9) Comms Calibrate Time Simulate (see 15-10) (see 15-11) (see 15-12) (see 15-14) NAVMAN TRACKER 5507/5607 Installation and Operation Manual...
-
Page 50: Setup > System
No appropriate NAVMAN DSC VHF radio is • The versions and dates. fitted. Disable Buddy track. • The world chart version. An appropriate NAVMAN DSC VHF radio is • Any card fitted. fitted. Enable Buddy track. See section 14. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 51: Setup > Chart
When you change to a chart with a different DANGER direction needs to change to make the chart datum, change the 5507/5607 map datum redraw. again. Tip: If the chart redraws too frequently, CAUTION increase the course deviation setting. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... - Page 52 Use map shift with caution: shift. incorrect application will cause incorrect CAUTION boat positions. Press and select Clear. Press Some charts have consistent position errors. To correct this, apply a map shift. After a map shift: NAVMAN TRACKER 5507/5607 Installation and Operation Manual...
- Page 53 Land submenu Land features Displays land features, for example regions, rivers, roads, railways, airports. Land elevation Displays land contours, shaded like depths (requires an NT Max card) NAVMAN TRACKER 5507/5607 Installation and Operation Manual...
-
Page 54: Setup > Gps
GPS receiver (see section 7). Restart the GPS if the receiver has not been used for some time and is taking a long time to get a GPS fix. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 55: Setup > Fuel
For the selected engine, you can enter: Diesel sensors From tank: The fuel tank the engine is If the boat has more than one diesel engine and connected to. has NAVMAN diesel sensors, set up the diesel sensors: NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 56: Setup > Track
Max RPM known engine’s name and press The maximum engine RPM to be displayed on Repeat the above step for the other engines an analog RPM gauge. Required only if NAVMAN in turn. diesel flow sensors are installed. Enter the Press... -
Page 57: Setup > Ais
This option resets the total distance to zero. Reset engine hours Use this option to reset the engine hours to zero. This can be useful after an engine service or to count the engine hours between service intervals. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 58: Setup > Alarms
Battery voltage is less than the alarm trigger value Low fuel remaining equals the alarm trigger value; on a multi- Low fuel tank boat you can set separate alarms for each tank (see section 10-4) NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 59: Setup > Units
5507/5607 to other NAVMAN instruments. Select this if the instruments are connected using NavBus. NavBus Group Use this when a group of NAVMAN instruments NMEA out are connected together using NavBus, to specify NMEA is generally used with third party a group of instruments for backlighting, if instruments (see section 16-10). -
Page 60: Setup > Calibrate
The range is 1 Calibrating speed: to 30 seconds or Off (0). Travel at a constant, known speed. In the Calibrate menu, select Speed. Press to change the displayed speed to the true value. Press NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 61: Setup > Time
MM/dd/yy. Local offset The difference between local time and UTC (GMT). Change local offset when daylight saving time starts and ends. The range is 0 to ± 13 hours, in 30 minute steps. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 62: Setup > Favorites
2 Demo Simulates a boat moving along a route and automatically displays different 5507/5607 functions. The options required for Demo are: Speed: The simulated boat speed to use. Route: The route to follow. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 63: Installation
C-MAP™ user cards (3 V) for storing data. (The older 5 volt cards are not supported) • NAVMAN carry bag. • NAVMAN NavBus junction boxes simplify wiring, particularly if several instruments are connected. For more information, see the NavBus Installation Manual. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... - Page 64 Brown Not used White NMEA out Blue NavBus- Power in, +10.5 to +30.5 V DC Orange NavBus+ Yellow Auto power in Green External alarm out, 30 V DC 200 mA maximum. NAVMAN TRACKER 5507/5607 Installation and Operation Manual...
-
Page 65: Installation: The Display Unit
Screw the four studs into the brass inserts in knob on the mounting bracket. the back of the display unit. Sit the display unit in place and fit the washers and nuts to the studs. Mounting Knob bracket NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 66: Installation: Power/Data Cable
If the current is more than 200 mA, fit a relay. Black Connect the power/data cable to the black Green display unit connector; turn the collar to External beepers or lock the connector. lights NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 67: Installation: Gps Antenna
SmartCraft™ engines have fuel flow sensors, therefore NAVMAN fuel sensors are not White required as well. • Wire for auto power (see section 16-4). Fuel sensor cable During setup enter fuel setup data (see section 15-4) NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 68: Installation: Navman Diesel Sensors
Wire the unit for auto power (see section 16-4). During setup Enter fuel setup data (see section 15-4) Set NavBus and SmartCraft™ to (see section 15-1) Enter SmartCraft™ setup data (see the SmartCraft™ Gateways Installation and Operation Manual) NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 69: Installation: Other Navbus Instruments
16-9-1 Installation: NAVMAN VHF radio other instruments in the same group. If the backlight is changed in an instrument Fit and set up the optional NAVMAN VHF radio in group 0 then no other instruments are (with NavBus functionality) following the affected. -
Page 70: Installation: Other Nmea Instruments
Select the language to use. Change the data if necessary (see section 2-1) iii When the setup data is correct, press This data can be changed later (see section 15). NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 71: Appendix A - Specifications
500 points. Chart datums 121 Chart datums (see next page) One user-defined map shift. Chart scale: 0.05 to 4096 nm for chart (chart dependent) down to 0.01 nm in plotter mode. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... - Page 72 Sierra Leone 1960 S-JTSK South American 1969 South Asia Tananarive Observatory 1925 Timbalai 1948 Tokyo Tristan Astro 1968 Viti Levu 1916 Voirol 1874 Voirol 1960 Wake Island Astro 1952 Wake-Eniwetok 1960 WGS 84 Yacare Zanderij NAVMAN TRACKER 5507/5607 Installation and Operation Manual...
-
Page 73: Appendix B - Troubleshooting
Repairs to the product may only be carried out It is possible in many cases to solve difficulties by a service centre approved by NAVMAN. If the without having to send the display unit back to product must be sent into a service centre for the manufacturer for repair. -
Page 74: Gps Navigation Problems
No GPS fix. In simulate mode. Turn simulate mode off (see section 15-12). Local time offset is wrong (see section 15-11). The Local Time Offset must be changed when daylight saving time starts or ends. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 75: Fuel Consumption Problems
You added or removed fuel but did not tell the 5507/5607 (see section 10-3). The fuel tank may not refill to the same capacity each time due to air pockets. This is a particular problem with underfloor tanks. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... -
Page 76: Appendix C - Glossary And Navigation Data
Leg - The straight segments of a route between 5507/5607 chart, for example a fishing spot or a point on a route (see section 5). waypoints. A route with four waypoints has three legs. NAVMAN TRACKER 5507/5607 Installation and Operation Manual... - Page 77 Velocity Made Good: The speed at which the boat is approaching the destination. Destination Destination Plotted DTG (distance) course (distance) VMG (speed) SOG (speed) Boat position CDI scale CDI scale (distance) (distance) Plotted course Boat position Start Start NAVMAN TRACKER 5507/5607 Installation and Operation Manual...
- Page 78 OCEANIA e-mail: mail@pronav.no Thailand Uruguay Australia web: www.pronav.no PING Electric Co., Ltd. Alvaro Burmudez, Nautica Navman Australia Pty. Limited Finland 2/80 Sreesutus Road, Puerto del Buceo Suite 2, 408 Victoria Road Vator Oy 11300 Montevideo, Uruguay. Russada Muang Gladesville, NSW 2111, Australia.
- Page 79 Lat 36° 48.404’S Made in New Zealand MN000652A-G N AVM AN Tr a c ke r 55 07/5 6 07 I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l...
