Brother HL-5130, HL-5140, HL-5150D, HL-5170DN, HL-5170DLT, HL-5170DNLT Parts Reference List page 5

Laser printer
Hide thumbs

Advertisement

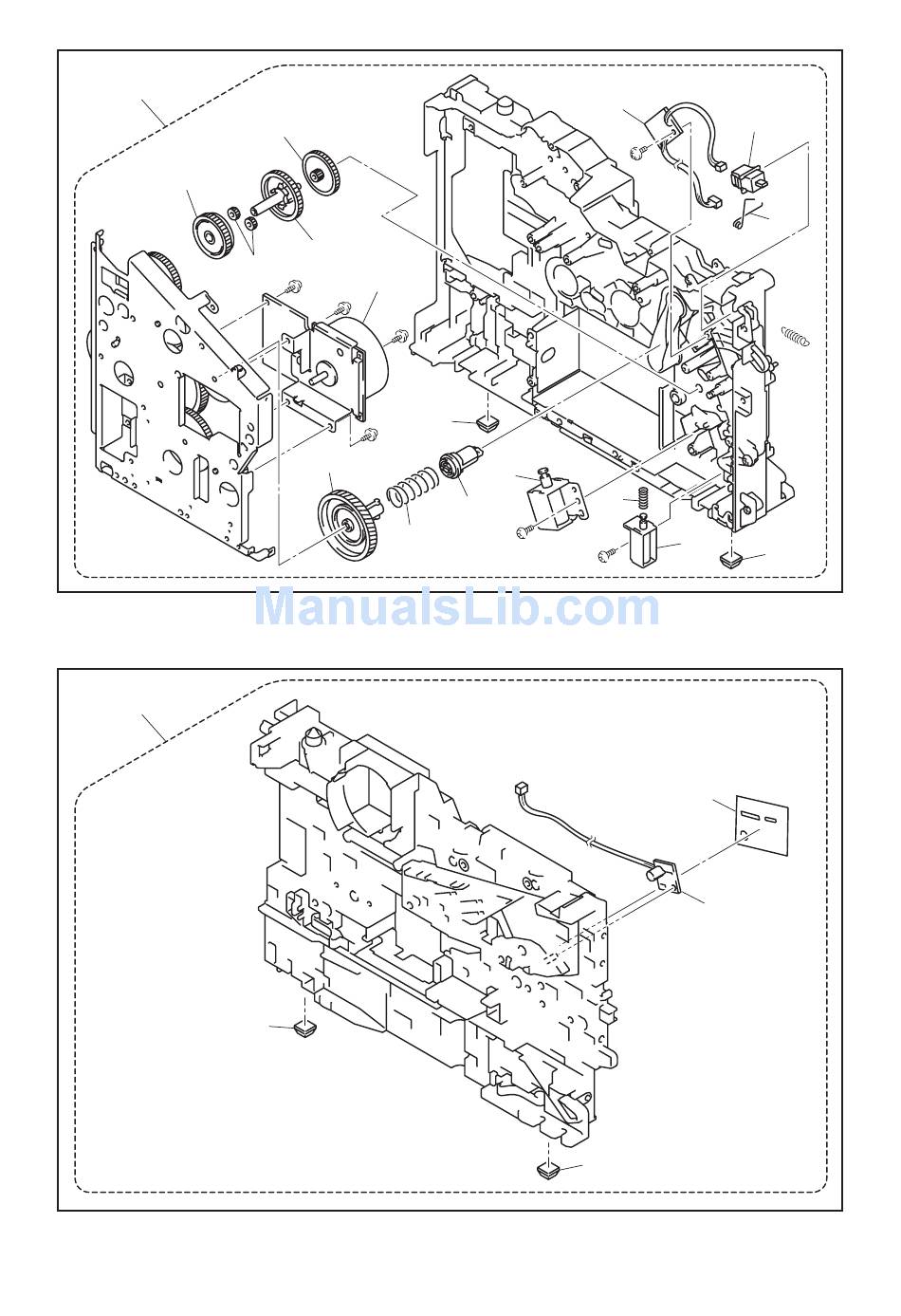

1. FRAME L / DRIVE UNIT
1
1-11
MODEL
HL-5130/5140/5150D/5170DN/5150DLT/5170DNLT US 84U-Z71/Z72/Z73/Z74/Z76/Z77-010
2. FRAME R
1
MODEL
HL-5130/5140/5150D/5170DN/5150DLT/5170DNLT US 84U-Z71/Z72/Z73/Z74/Z76/Z77-011
1-14
1-13
1-12
1-1
1-15
1-10
1-2
1-6
1-2
1-9
1-2
- 2 -
1-5
1-7
1-4
1-3
1-3
1-1
1-8
1-6
