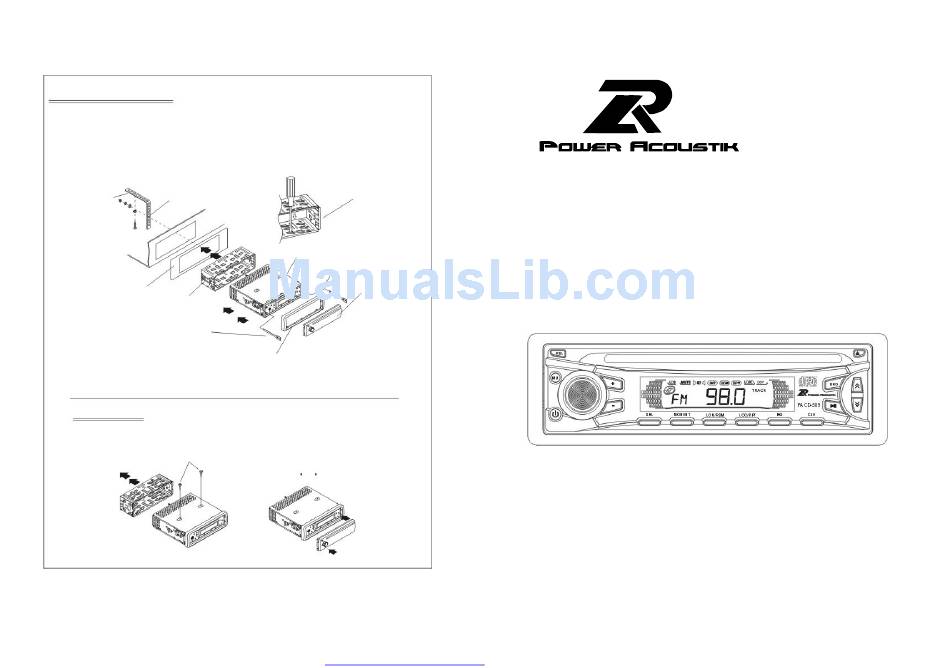

INSTALLATION METHOD

This is an anti-theft installation method.
The main unit wears a METAL MOUNTING SLEEVE.
Please connect the wiring, eg, the Power supply, the Speakers and the Antenna
according to the requirements of this Instruction Manual, then install the
metal mounting sleeve into the car as per the diagram illustrated below.
To raise the anti-skip capability of the unit,
please ensure the metal support strap is
connected firmly to the car chassis.
M ETAL S UPPORT ST RA P
DASHBOARD
METAL MOUNTING SLEEVE
To remove the CD player out of the mounting sleeve,
insert the two supplied keys into the left and right side
slots of the chassis at the same time.
Then pull the chassis out of the mounting sleeve as
shown in the illustration.
To remove the plastic trim ring out of the unit chassis, please grasp the upside
of
draw it out. Or grasp the upside of one side of the plastic trim ring and pull it up
a little, and draw it outward, then grasp the other side and pull it up a little and
draw it outward.
NOTE
Remove the two screws that protect
Before installing and operating
the CD player during transportation
the CD player, remove the metal
before operating the player.
mounting sleeve illustrated by the
arrows.
PDF created with FinePrint pdfFactory trial version
Bend the tabs on the mounting
sleeve against the dashboard
with a screwdriver.
UNIT CHASSIS
PLAS TIC TRIM RI NG
FRONT PANEL
left and right two sides of
the plastic trim ring and pull it up a little firstly, then
To attach the removable faceplate, insert the
right side of the faceplate into the right of the
CD player chassis first. Then push the left side
of the faceplate into the chassis until you hear
it click .
http://www.pdffactory.com

INSTRUCTION MANUAL

THEFT DETERRENT DETACHABLE SYSTEM
AUTO-LOADING DISC COMPACT DISC PLAYER
AM/FM STEREO 2-BAND TUNING RECEIVER
PACD-509
