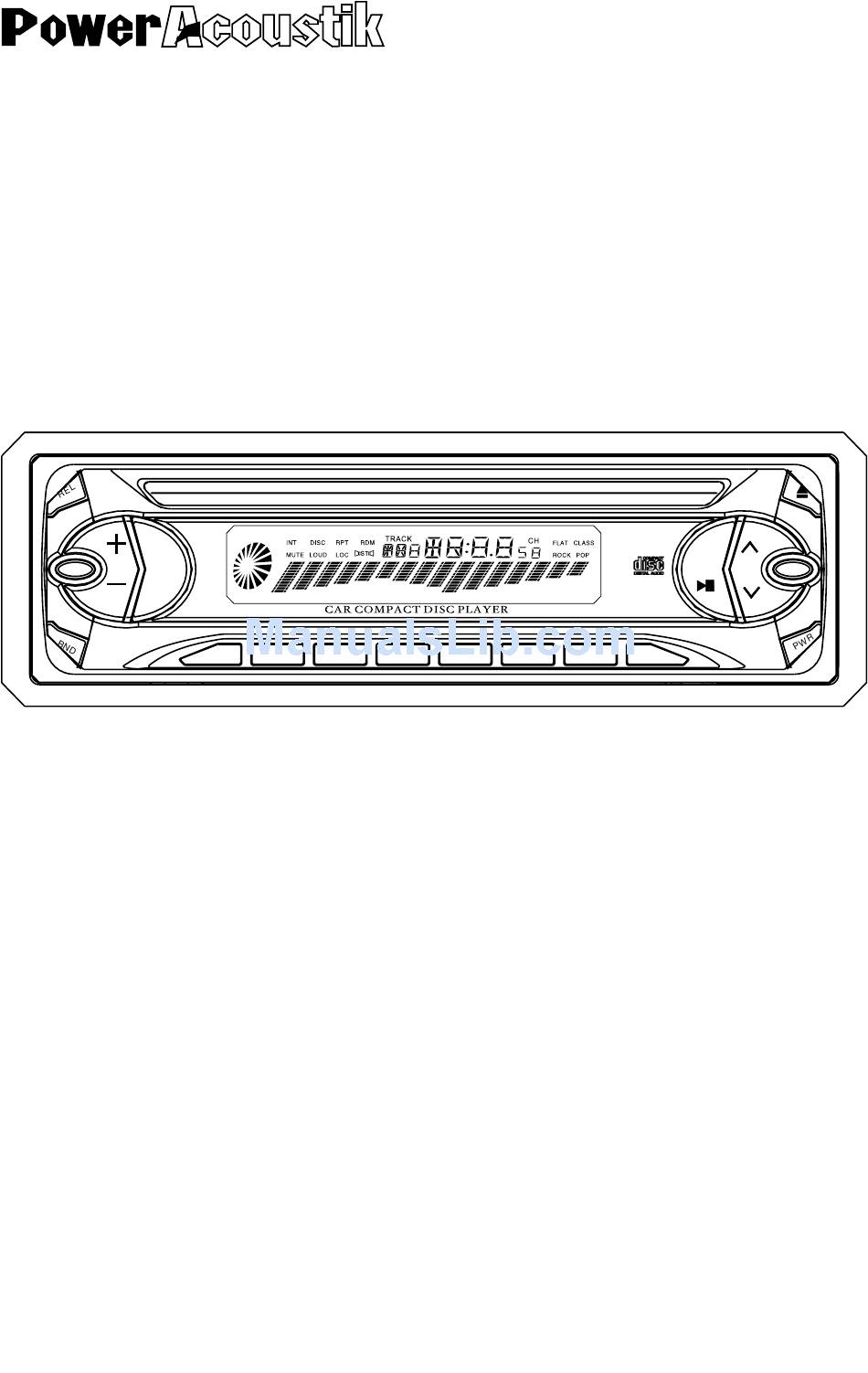

PACD-875 INSTRUCTION MANUAL TUNE 1/TOP 2/RPT 3/INT 4/RDM ANTI-THEFT FULL DETACHABLE PANEL AUTO-LOADING COMPACT DISC PLAYER AM/FM-STEREO DIGITAL PLL TUNING RADIO... -
Page 2: Customer Notice
CUSTOMER NOTICE DEAR CUSTOMER Selecting fine audio equipment such as the unit you have just purchased is only the start of your musical enjoyment. Now it is time to consider how you can maximize the fun and excitement your equipment offers. We want you to get the most out of your equipment by playing it at a safe level. -
Page 3: Basic Operation
BASIC OPERATION TUNE 1/TOP 2/RPT 3/INT 4/RDM 18 19 1. REL BUTTON Press it to detach the front panel when you want to take the unit away. 2.8. SEL( AUDIO MODE SELECT)/+/- BUTTONS Press SEL button to change the mode in the sequence of (Volume) (Bass) (Treble) - Page 4 BASIC OPERATION 5. TRACK UP/DOWN BUTTONS During CD mode, press button allow you to track forwards. Hold the button allow you to skip forwards. During AUDIO mode, press and hold for more than 2 seconds you can auto search channel. Then press or , you can have manual search channel.
- Page 5 BASIC POPERATION 19. CDP BUTTON When in RADIO mode, press the button to change into CD playing, press it again to pause the CD playing, press it again to return back to CD playing. 20. POWER BUTTON Press it to turn on or off the unit. 21.
-
Page 6: Electric Connection
ELECTRIC CONNECTION ANTENNA CONNECTOR IGNITION SWITCH (B+) FUSEBOX YELLOW MEMORY (B+) FRONT RCA RCH RED OUTPUT CABLE (optional) BLACK GROUND(B-) LCH WHITE AUTO BLUE ANTENNA WHITE GREY FRONT FRONT LchSPK RchSPK WHITE/BLACK GREY/BLACK GREEN VIOLET REAR REAR LchSPK RchSPK GREEN/BLACK VIOLET/BLACK NOTE: In spite of having any kinds of speaker system, must use 4-8 ohms impedance of... -
Page 7: Installation
INSTALLATION DASH BOARD METAL MOUNTING STRAP HEX NUT SPRING WASHER CONSOLE PLAIN WASHER PLAIN WASHER TAPPING SCREW SLIDE BRACKET HOUSING HEX BOLT... -
Page 8: How To Remove And Install The Front Panel
INSTALLATION HOW TO REMOVE AND INSTALL THE FRONT PANEL 1. Press the release button and pull-off the front panel. Keep front panel into the case. 2. To install the front panel, insert the panel into the housing and make sure the panel is properly installed, otherwise, abnormalities occurs on the display or some keys will not function properly. - Page 9 NOTES DISC PLAY: Cleaning discs Before playing, clean the disc with a clean, lint-free. Flip the disc in the direction of the arrow. NOTE: Do not use so solvents such as benzine, thinners. Commercially available cleaners or anti static spray damage the unit. Insert a disc with the label surface down.
-
Page 10: Specifications
SPECIFICATIONS Power requirement ................... DC 12V Current consumption ....................5A POWER OUTPUT ....................7w x 4 FM SECTION Frequency range ................87.5MHz-108.0MHz Usable sensitivity ....................3uV I.F Frequency ....................10.7MHz AM SECTION Frequency range ................522KHz-1620KHz LINE-OUT [OPTION] Output ................500mV@FM10% THD POWER CD PLAYER CD PLAYER System ................compact disc audio system... -
Page 11: Troubleshooting
TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom Cause Solution No power. The car ignition switch is If the power supply is properly not on. - Page 12 88-C2710-02...
