rECoMMEnDATIonS

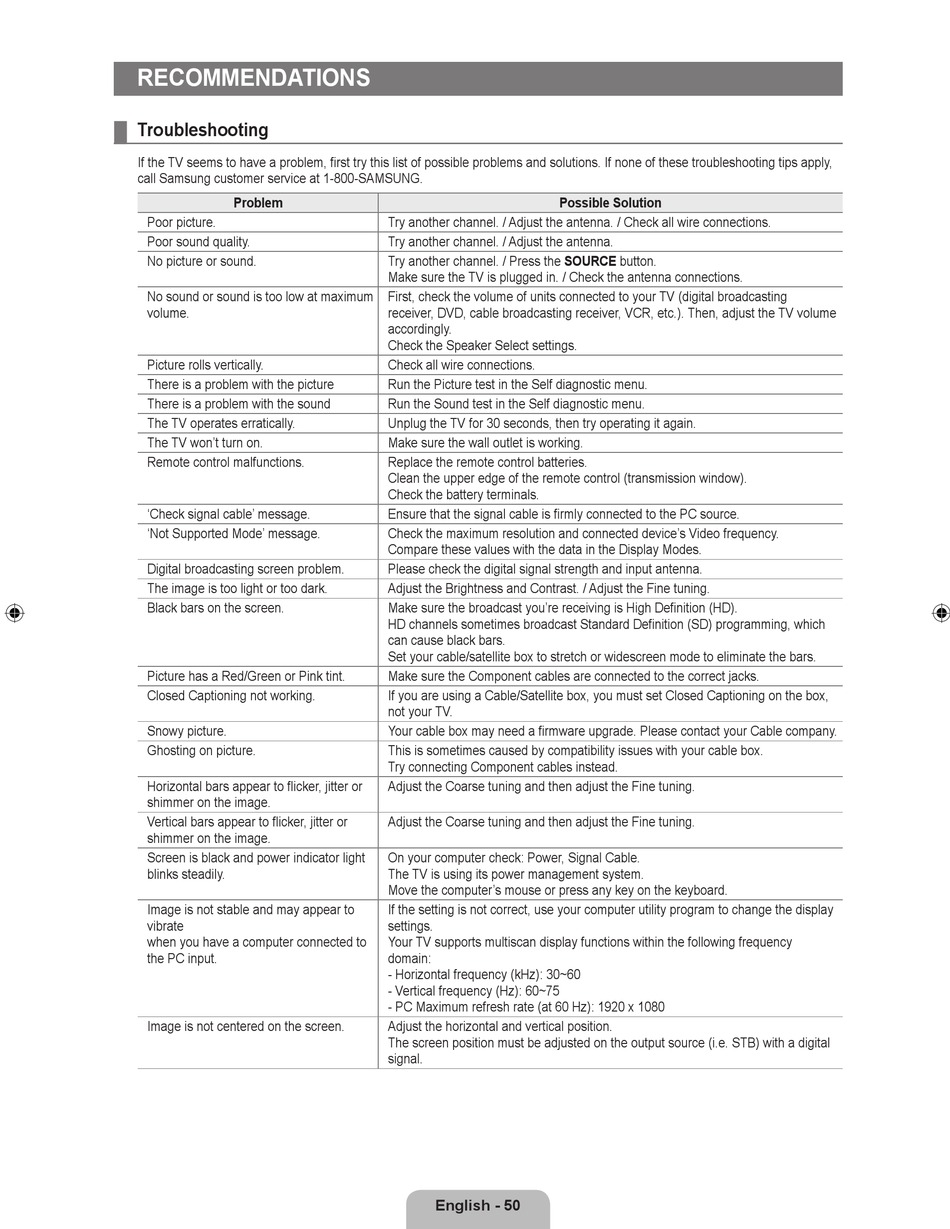

Troubleshooting

¦
If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply,
call Samsung customer service at 1-800-SAMSUNG.
Problem
Poor picture.
Poor sound quality.
No picture or sound.
No sound or sound is too low at maximum
volume.
Picture rolls vertically.
There is a problem with the picture
There is a problem with the sound
The TV operates erratically.
The TV won't turn on.
Remote control malfunctions.
'Check signal cable' message.
'Not Supported Mode' message.
Digital broadcasting screen problem.
The image is too light or too dark.
Black bars on the screen.
Picture has a Red/Green or Pink tint.
Closed Captioning not working.
Snowy picture.
Ghosting on picture.
Horizontal bars appear to flicker, jitter or
shimmer on the image.
Vertical bars appear to flicker, jitter or
shimmer on the image.
Screen is black and power indicator light
blinks steadily.
Image is not stable and may appear to
vibrate
when you have a computer connected to
the PC input.
Image is not centered on the screen.
Try another channel. / Adjust the antenna. / Check all wire connections.
Try another channel. / Adjust the antenna.
Try another channel. / Press the SourCE button.
Make sure the TV is plugged in. / Check the antenna connections.
First, check the volume of units connected to your TV (digital broadcasting
receiver, DVD, cable broadcasting receiver, VCR, etc.). Then, adjust the TV volume
accordingly.
Check the Speaker Select settings.
Check all wire connections.
Run the Picture test in the Self diagnostic menu.
Run the Sound test in the Self diagnostic menu.
Unplug the TV for 30 seconds, then try operating it again.
Make sure the wall outlet is working.
Replace the remote control batteries.
Clean the upper edge of the remote control (transmission window).
Check the battery terminals.
Ensure that the signal cable is firmly connected to the PC source.
Check the maximum resolution and connected device's Video frequency.
Compare these values with the data in the Display Modes.
Please check the digital signal strength and input antenna.
Adjust the Brightness and Contrast. / Adjust the Fine tuning.
Make sure the broadcast you're receiving is High Definition (HD).
HD channels sometimes broadcast Standard Definition (SD) programming, which
can cause black bars.
Set your cable/satellite box to stretch or widescreen mode to eliminate the bars.
Make sure the Component cables are connected to the correct jacks.
If you are using a Cable/Satellite box, you must set Closed Captioning on the box,
not your TV.
Your cable box may need a firmware upgrade. Please contact your Cable company.
This is sometimes caused by compatibility issues with your cable box.
Try connecting Component cables instead.
Adjust the Coarse tuning and then adjust the Fine tuning.
Adjust the Coarse tuning and then adjust the Fine tuning.
On your computer check: Power, Signal Cable.
The TV is using its power management system.
Move the computer's mouse or press any key on the keyboard.
If the setting is not correct, use your computer utility program to change the display
settings.
Your TV supports multiscan display functions within the following frequency
domain:
- Horizontal frequency (kHz): 30~60
- Vertical frequency (Hz): 60~75
- PC Maximum refresh rate (at 60 Hz): 1920 x 1080
Adjust the horizontal and vertical position.
The screen position must be adjusted on the output source (i.e. STB) with a digital
signal.
English - 0
Possible Solution
